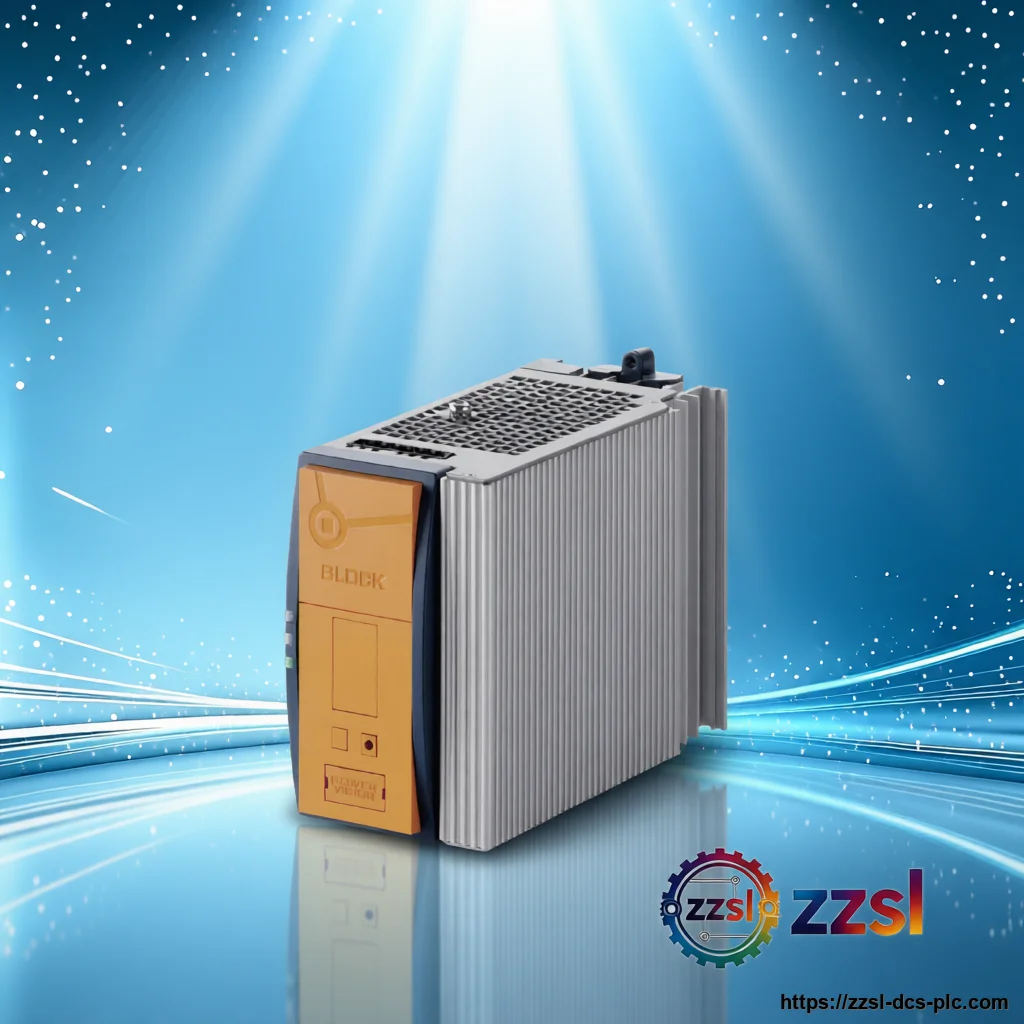

BLOCK DC-UPS PVRE 24/24-20
Home > Products > BLOCK > DC-UPS Modules Need BLOCK PVRE 24/24-20? DC-UPS for 24V DC control systems, industrial automation. Supplied with full tracea…
Specifications
| Brand | BLOCK |
|---|---|
| Model Number | PVRE 24/24-20 |
| Official Product Name | DC-UPS Module |
| Applicable System | 24V DC control systems, industrial automation |
| Product Type | DC-UPS (Uninterruptible Power Supply) |
| Equivalent Standard | IEC 61131-2, EN 60950-1 (typical for industrial power supplies) |
| Product Status | In Stock |
| Output Voltage (DC) | 24V DC (regulated) |
| Output Current | 20A |
| Battery Charging Current | Up to 2A (depending on battery state) |
| Battery Type | Lead-acid (12V or 24V, external) |
| Switchover Time | < 5 ms (typical) |
| Efficiency | > 90% (at nominal load) |
| Operating Temperature Range | -25°C to +60°C (derating above 40°C) |
| Protection Features | Overcurrent, overvoltage, reverse polarity, overtemperature |
| Indicators | LED: Mains OK, Battery OK, Fault |
| Mounting | DIN-rail (EN 60715) |
| Dimensions (W x H x D) | Approx. 120 x 130 x 125 mm |
| Weight | Approx. 1.2 kg |
| Input Voltage (DC) | 22.5 - 30V DC (nominal 24V DC) |
Product Description
It ensures continuous operation of critical loads during mains failures or voltage dips, making it essential for industrial automation, process control, and safety systems. With an output current of 20A, it supports a wide range of applications, from PLC systems to drives and sensors. This module operates with a nominal input voltage of 24V DC and delivers a regulated 24V DC output. It features an integrated charging circuit for external batteries (typically lead-acid or similar), allowing seamless transition to battery power when the input voltage falls below a set threshold. The PVRE series is known for its robust design, high efficiency, and compact DIN-rail mounting, simplifying installation in control cabinets. The PVRE 24/24-20 includes comprehensive protection features such as overcurrent, overvoltage, and reverse polarity protection, ensuring safe operation in demanding industrial environments. Its LED status indicators provide clear visual feedback on operating states, including mains operation, battery operation, and fault conditions. With a wide operating temperature range and compliance with international standards, this module is a trusted choice for OEMs and system integrators. The BLOCK PVRE 24/24-20 is a DC-UPS (uninterruptible power supply) module designed to provide reliable bridging and buffering of 24V DC control circuits.
Basic Product Information
- Integrated battery charger for external lead-acid batteries
- Seamless switchover to battery power during mains failure
- Wide input voltage range (22.5-30V DC)
- Comprehensive protection: overcurrent, overvoltage, reverse polarity
- LED status indicators for operation and fault monitoring
- Compact DIN-rail mountable design
- High efficiency and low power dissipation
- 20A output current for robust power bridging
Technical Specifications
Version & Model Difference
The PVRE series includes various models with different output currents (e.g., PVRE 24/24-10 for 10A, PVRE 24/24-20 for 20A). The -20 model offers higher current capability for larger loads. Compared to newer PVRE-2 series, the original PVRE series has a simpler design with fewer communication options, but it remains a reliable and cost-effective solution for standard DC-UPS applications.
Application Scenarios
- BLOCK PVSE 230/24-10 Power Supply (PVSE 230/24-10)
