Specifications
| Brand | Haskel |
|---|---|
| Model Number | 59025 |
| Official Product Name | Refrigerant Recovery Pump 59025 |
| Applicable System | Refrigerant recovery and HVAC/R service systems |
| Product Type | Air-actuated refrigerant recovery pump |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | Active / Available |
| Max liquid / vapor pressure | 1250 psi |
| Vacuum capability | Down to 27 in Hg |
| Air drive bore | 5.75 in |
| Air drive stroke | 2 in |
| Min air drive pressure | 40 psi |
| Max air drive pressure | 150 psi |
| Displacement per cycle | 10 cu in |
| Max cycles | 80 / min |
| Unit weight | 25 lb (11 kg) |
| Pump inlet / outlet | 3/8 in FNPT |
| Vent port | 1/8 in FNPT |
| Air drive inlet | 1/2 in FNPT |
| Pump seal materials | Neoprene and PTFE |
| Air drive seal material | Buna |
| Wetted materials | Aluminum and stainless steel |
| Distance piece | Included (isolates air drive from media) |
| Compatible refrigerants | R12, R22, R32, R134A, R404A, R410A, R290, FM200, HFO-1234yf and more |
| Pump type | Air-actuated refrigerant recovery pump |
Product Description

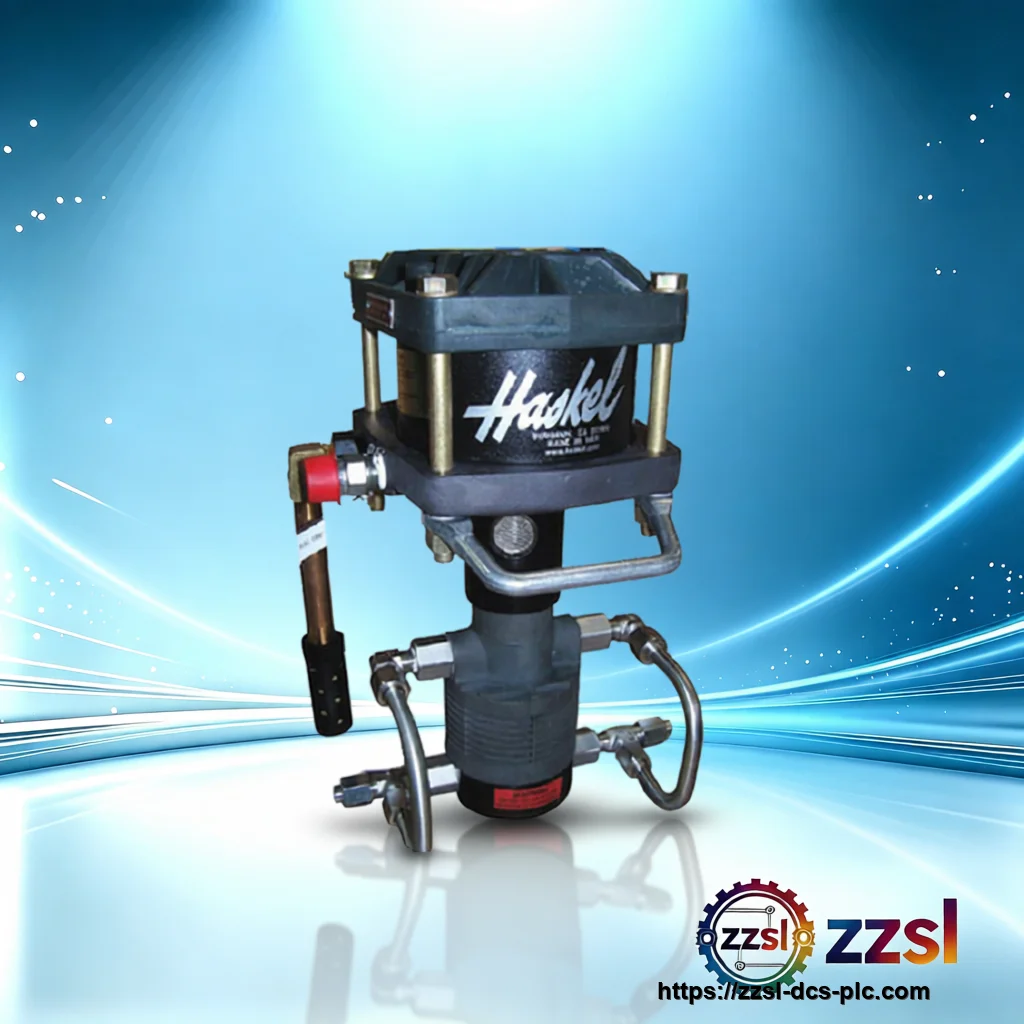

Fully pneumatic with no internal lubrication, it keeps refrigerants uncontaminated and operates cool and safely without electrical hazard, making it ideal for HVAC/R recovery and reclamation work. The Haskel 59025 is a compact, air-actuated refrigerant recovery pump that transfers liquid and vapor refrigerants across all pressure ranges up to 1250 psi and pulls a vacuum down to 27 in Hg.
Basic Product Information
- Transfers both liquid and vapor refrigerants and pulls vacuum to 27 in Hg with one pump
- Ultra-tight reengineered seal reduces leakage by 30% over previous designs
- Distance piece isolates the air-drive section from the media compression section
- No internal lubrication required in the gas section, keeping refrigerant pure
- Fully pneumatic operation from shop air (40 - 150 psi) with no electrical hazard
Technical Specifications
Version & Model Difference
Application Scenarios
- Refrigerant recovery and reclamation from HVAC/R systems
- Refrigerant recharge and transfer service
- Environmental-compliance recovery of CFC/HFC refrigerants
Frequently Asked Questions
What is the maximum pressure of the Haskel 59025 pump?
The 59025 handles liquid and vapor pressures up to 1250 psi and can pull a vacuum down to 27 in Hg in a single pump.
What refrigerants is the 59025 compatible with?
Its Neoprene seals are compatible with R12, R22, R32, R134A, R404A, R410A, R290, FM200, HFO-1234yf and many others. Contact us for exact specifications on a specific refrigerant.
Does the 59025 require electricity to operate?
No. It is pneumatically driven from a shop air hose (40 - 150 psi) like an air tool, with no electrical hazard and no heat generated during liquid transfer.
What is the difference between the 59025 and 59020?
Both share the same performance; the 59025 includes a Distance Piece that isolates the air-drive from the media section, while the 59020 does not. Contact us for cross-reference and alternative models.
