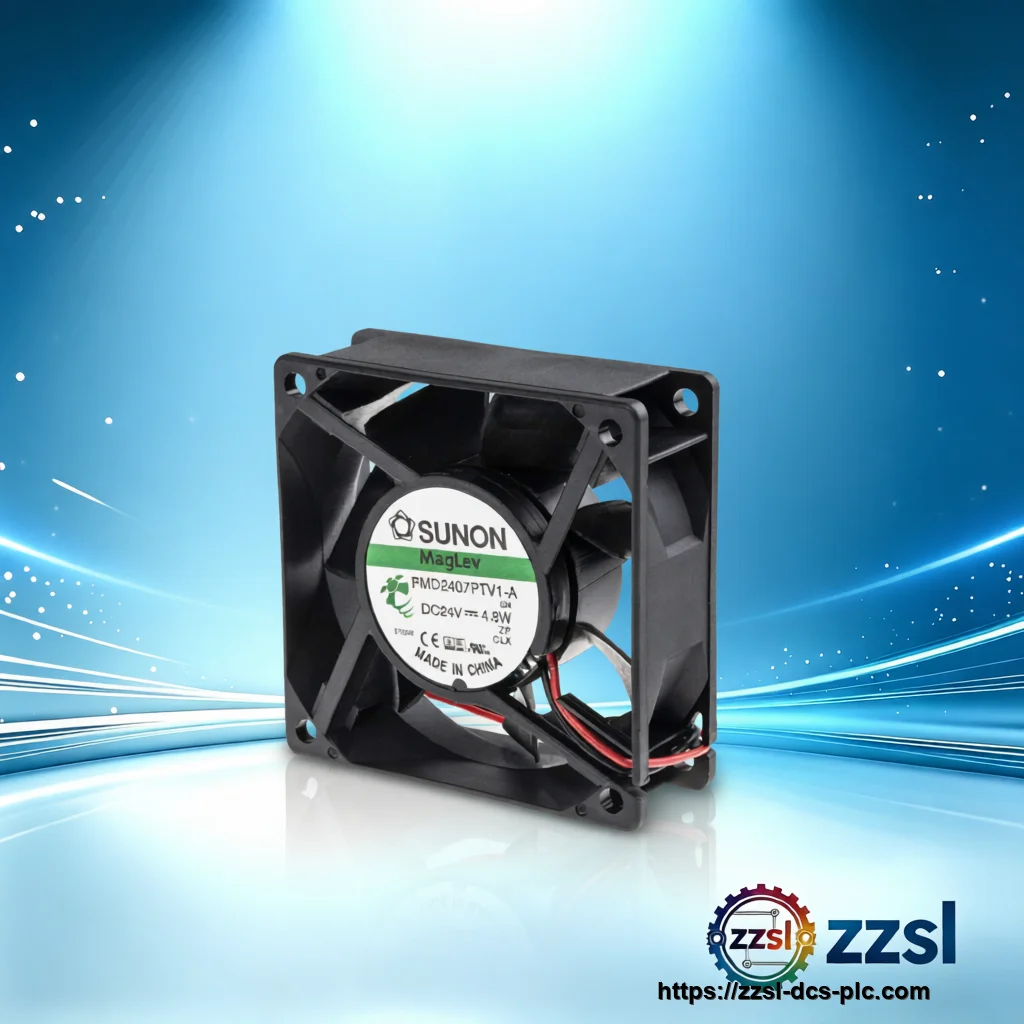

SUNON DC Brushless Axial Fan PMD2407
Home > SUNON > DC Axial Fans > PMD2407 Need SUNON PMD2407? DC Brushless Axial Fan. Supplied with full traceability and documentation. Request a quote …
Specifications
| Brand | SUNON |
|---|---|
| Model Number | PMD2407 |
| Official Product Name | MagLev PMD Series 24 VDC Axial Cooling Fan (70 x 70 x 25 mm) |
| Applicable System | PLC, drive, inverter and power-supply cooling; industrial control cabinet thermal management |
| Product Type | DC Brushless Axial Fan (Tubeaxial) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Fan Type | Tubeaxial, DC brushless |
| Rated Voltage | 24 VDC |
| Voltage Range | 10 to 27.6 VDC |
| Bearing Type | Vapo-Bearing or precision ball bearing (part-number dependent) |
| Rated Speed | Approximately 5100 RPM |
| Airflow | Approximately 49 CFM (1.37 m3/min) |
| Static Pressure | 0.36 inch-H2O (89.6 Pa) |
| Noise Level | Approximately 44 to 45 dB(A) |
| Rated Current | Approximately 0.190 to 0.200 A |
| Power Consumption | Approximately 4.6 to 4.8 W |
| Operating Temperature | -10 degrees C to +70 degrees C |
| Frame Material | Polybutylene Terephthalate (PBT) |
| Termination | 2 wire leads |
| Approvals | CE, CUR, TUV, UL |
| Frame Size | 70 x 70 x 25 mm |
Product Description
It is available with either a Vapo-Bearing or a precision ball bearing system and runs at about 5100 RPM, moving roughly 49 CFM with 0.36 inch-H2O of static pressure at a noise level around 44 to 45 dB(A). The wide 10 to 27.6 VDC input range, auto-restart protection and 2-wire lead termination make it easy to integrate into PLC, drive and power-supply cooling duties. Typical part numbers in this family are PMD2407PTV1-A.GN (Vapo-Bearing) and PMD2407PTB1-A.(2).GN (ball bearing). The SUNON PMD2407 is a 70 x 70 x 25 mm 24 VDC axial fan from the SUNON MagLev PMD series, engineered for reliable forced-air cooling of industrial electronics.
Basic Product Information
- MagLev PMD series motor offered with Vapo-Bearing or precision ball bearing options
- About 49 CFM airflow at approximately 5100 RPM with 0.36 inch-H2O static pressure
- Low noise operation around 44 to 45 dB(A)
- Auto restart protection and 2-wire lead termination
- RoHS compliant construction with PBT frame material and CE, CUR, TUV, UL approvals
- 70 x 70 x 25 mm frame with 24 VDC rated voltage and 10 to 27.6 VDC operating range
Technical Specifications
Version & Model Difference
The PMD2407 is a base model number covering several 70 x 70 x 25 mm 24 VDC fans that differ by bearing type and speed. PMD2407PTV1-A.GN uses a Vapo-Bearing, while PMD2407PTB1-A.(2).GN uses a precision ball bearing; lower-speed PMD2407PTB3-A.(2).GN (4200 RPM, 40 CFM) and the thinner 70 x 20 mm PMD2407PK series are related but not dimensionally identical. Confirm the bearing, airflow and thickness you need when ordering.
Application Scenarios
- PLC and automation controller cabinet cooling
- Servo drive and inverter thermal management
- Switching power supply and UPS cooling
- Telecom and networking equipment ventilation
- General industrial enclosure forced-air cooling
- SUNON PFC0382B1-Q10C-SA9 120x120x38mm 24V DC Axial Cooling Fan
- SUNON PE6025BX 60x60x25mm DC Brushless Axial Cooling Fan
- SUNON EB50101S2-0000-A99 50 x 50 x 10 mm DC Cooling Fan
Frequently Asked Questions
What voltage does the SUNON PMD2407 use?
It is a 24 VDC fan with a wide operating range of 10 to 27.6 VDC, suitable for standard 24 V industrial control systems.
What is the difference between the PMD2407 bearing variants?
The PMD2407PTV1-A.GN uses a SUNON Vapo-Bearing for quiet, long-life operation, while the PMD2407PTB1-A.(2).GN uses a precision ball bearing. Both share the same 70 x 70 x 25 mm frame and 24 VDC rating.
How much airflow and speed does the PMD2407 provide?
At about 5100 RPM it delivers roughly 49 CFM of airflow and 0.36 inch-H2O static pressure at a noise level of around 44 to 45 dB(A).
What is the operating temperature range?
The fan is rated for -10 degrees C to +70 degrees C, covering typical industrial control cabinet conditions.
