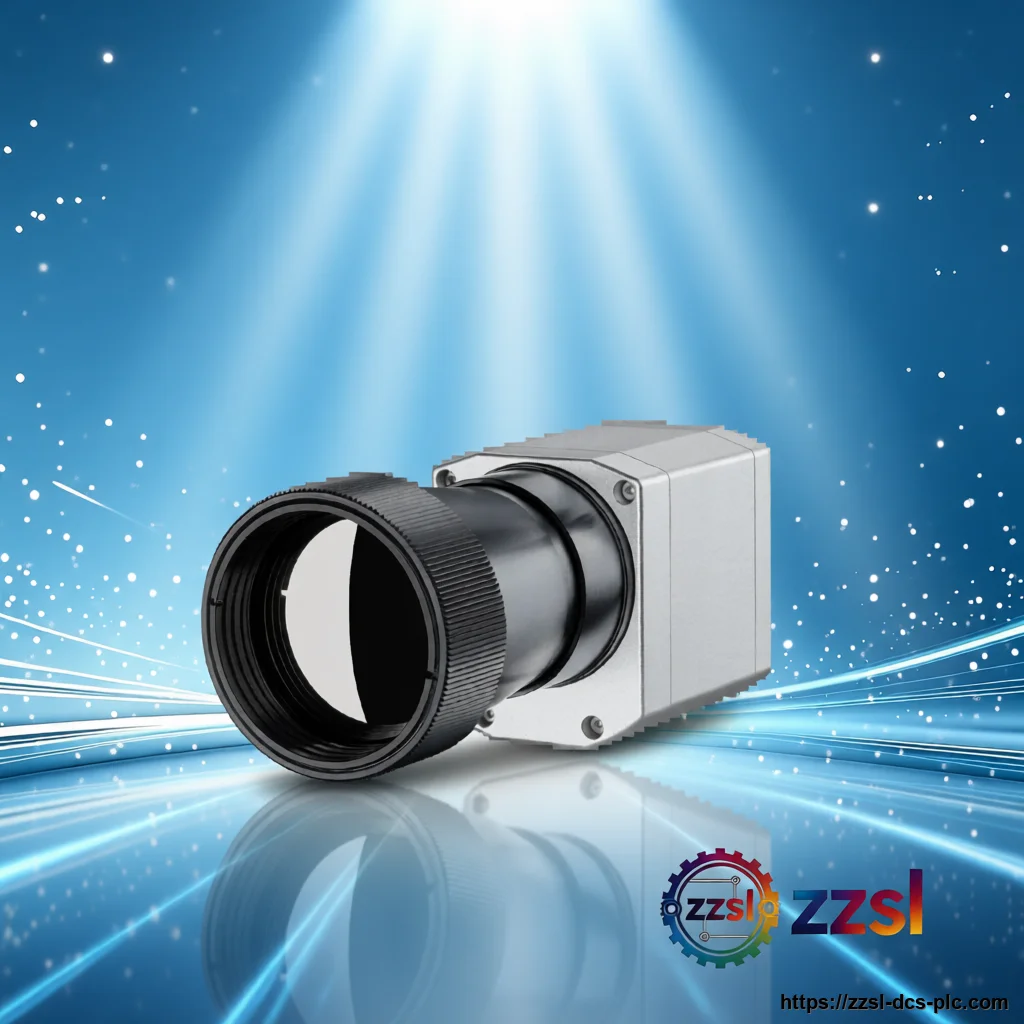

Optris Stationary VGA infrared thermal imaging camera PI640I
Home > Optris > Infrared Cameras > PI640I Need Optris PI640I? Stationary VGA infrared thermal imaging camera for Industrial process monitoring & R…
Contact us for current availability and best price of PI640I-Module.
Specifications
| Brand | Optris |
|---|---|
| Model Number | PI640I |
| Official Product Name | optris PI 640 infrared camera |
| Applicable System | Industrial process monitoring & R&D thermal imaging |
| Product Type | Stationary VGA infrared thermal imaging camera |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Detector | FPA, uncooled (17 um x 17 um) |
| Spectral Range | 7.5 - 13 um |
| Temperature Ranges | -20...100 C, 0...250 C, 150...900 C; optional 200...1500 C |
| Frame Rate | 32 Hz / 125 Hz @ 640 x 120 pixels |
| Thermal Sensitivity (NETD) | 75 mK |
| Accuracy | ±2 C or ±2 %, whichever is greater |
| PC Interface | USB 2.0 / optional USB GigE (PoE) |
| Process Interface (PIF) | 0-10 V in, digital in (max 24 V), 0-10 V out; industrial: 2x 0-10 V in, 3x 0/4-20 mA out, 3x relay, fail-safe relay |
| Ambient Temperature | 0 ... 50 C |
| Enclosure / Rating | 46 x 56 x 90 mm / IP67 (NEMA 4) |
| Weight | 320 g (incl. lens) |
| Power Supply | USB powered |
| Tripod Mount | 1/4 - 20 UNC |
| Optical Resolution | 640 x 480 pixel |
Product Description
Its 640 x 480 pixel uncooled FPA detector delivers pin-sharp real-time thermographic images for process monitoring and quality assurance. With a thermal sensitivity of 75 mK and a USB 2.0 interface plus an optional industrial process interface (PIF), it integrates into industrial and R&D monitoring setups. The camera is commonly used for surveillance and quality control in automotive, plastics, semiconductor and photovoltaic production. The Optris PI 640 (listed here as PI640I) is a compact stationary VGA infrared thermal imaging camera and one of the smallest of its class worldwide.
Basic Product Information
- Compact, lightweight body (approx. 320 g with lens) with IP67-rated enclosure for industrial environments
- Multiple temperature ranges from -20 C up to 900 C, with optional 200-1500 C high-temperature range
- USB 2.0 connectivity with optional GigE/PoE and industrial process interface (PIF) for alarm and control outputs
- Free license-free PIX Connect software and SDK for visualisation, recording and process integration
- 640 x 480 pixel VGA uncooled FPA detector (17 um pixel pitch) for high-resolution thermal images
Technical Specifications
Version & Model Difference
The base model is the Optris PI 640 VGA infrared camera. The 'I' suffix in PI640I commonly denotes a unit supplied with the industrial process interface (PIF) option; confirm the exact suffix configuration with the Optris part number when ordering.
Application Scenarios
- Process monitoring and optimisation in automotive manufacturing
- Quality assurance in plastics, semiconductor and photovoltaic production
- Condition monitoring and predictive maintenance of machinery
- Research and development thermal analysis and non-contact temperature measurement
Frequently Asked Questions
What is the resolution and sensitivity of the Optris PI640I?
It uses a 640 x 480 pixel uncooled FPA detector with a thermal sensitivity (NETD) of 75 mK, providing clear VGA-resolution thermal images.
What temperature ranges does the PI640I cover?
Standard ranges are -20...100 C, 0...250 C and 150...900 C, with an optional 200...1500 C high-temperature range available.
How does the PI640I connect to a PC or control system?
It connects via USB 2.0 (with optional GigE/PoE) and offers an industrial process interface (PIF) with analog/digital I/O and relays for alarm and control.
What software is included with the camera?
Optris supplies the license-free PIX Connect software and an SDK for visualisation, recording, alarming and process integration.
