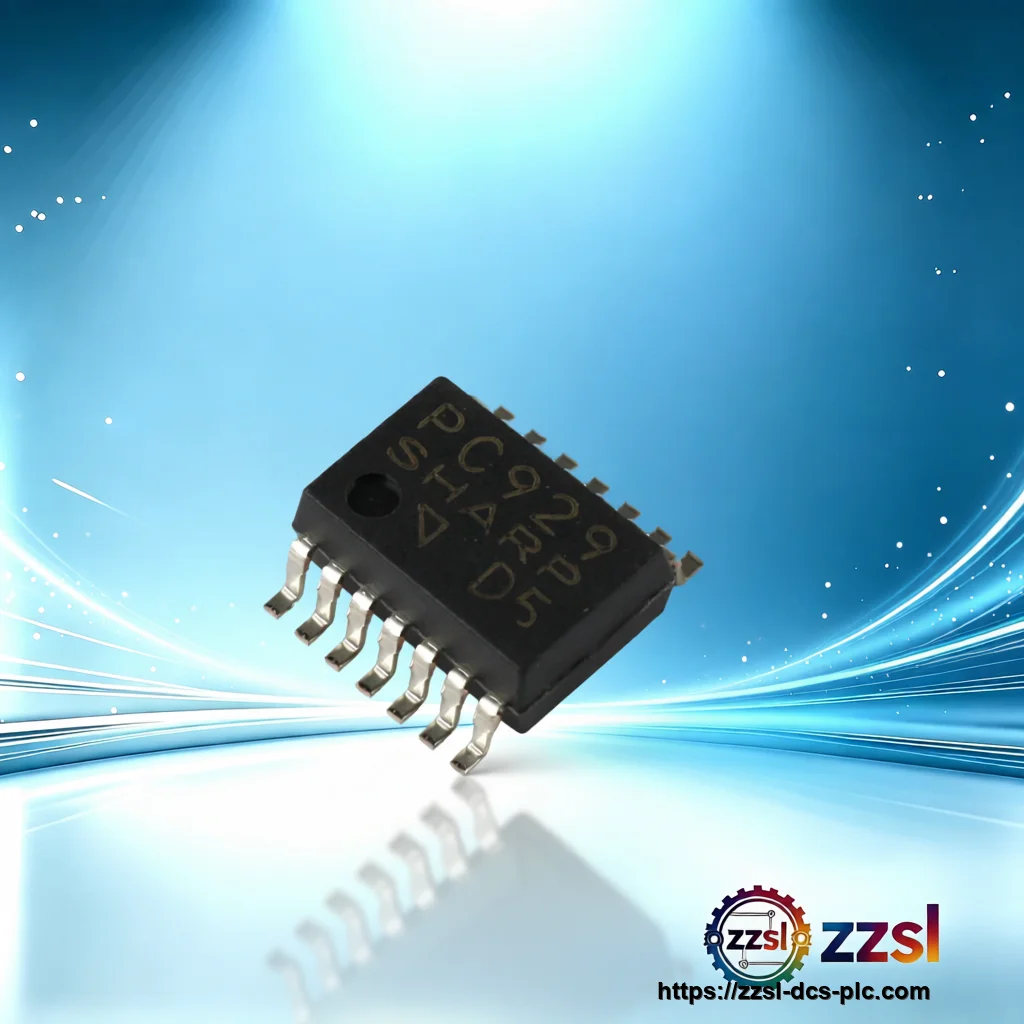

Sharp Photocoupler PC929
Home / Semiconductors / Optocouplers / Sharp PC929 Need Sharp PC929? Photocoupler for IGBT / power semiconductor gate drive isolation. Supplied with full trace…
Specifications
| Brand | Sharp |
|---|---|
| Model Number | PC929 |
| Official Product Name | PC929 IGBT gate drive optocoupler |
| Applicable System | IGBT / power semiconductor gate drive isolation |
| Product Type | Photocoupler (gate drive) |
| Equivalent Standard | Contact supplier for exact specifications |
| Product Status | Active |
| Lifecycle note | Commercialized |
| Package | 14-pin SOP |
| Output current | 400 mA |
| Isolation voltage | 4000 Vrms |
| Supply voltage | 15-30 V |
| Mounting | Surface mount |
| Function | IGBT gate drive photocoupler |
Product Description
Basic Product Information
- 400 mA peak output current for fast switching
- 4000 Vrms isolation between input and output
- 14-pin SOP surface-mount package
- Purpose-built IGBT gate-drive photocoupler
Technical Specifications
Version & Model Difference
- ['PC929 is a long-established gate-drive coupler', 'PC923/PC925 are related lower/higher speed variants', 'Confirm CTR and propagation delay with the datasheet']
Application Scenarios
- IGBT inverter gate drive
- Motor drive and servo amplifiers
- Power conversion circuits
