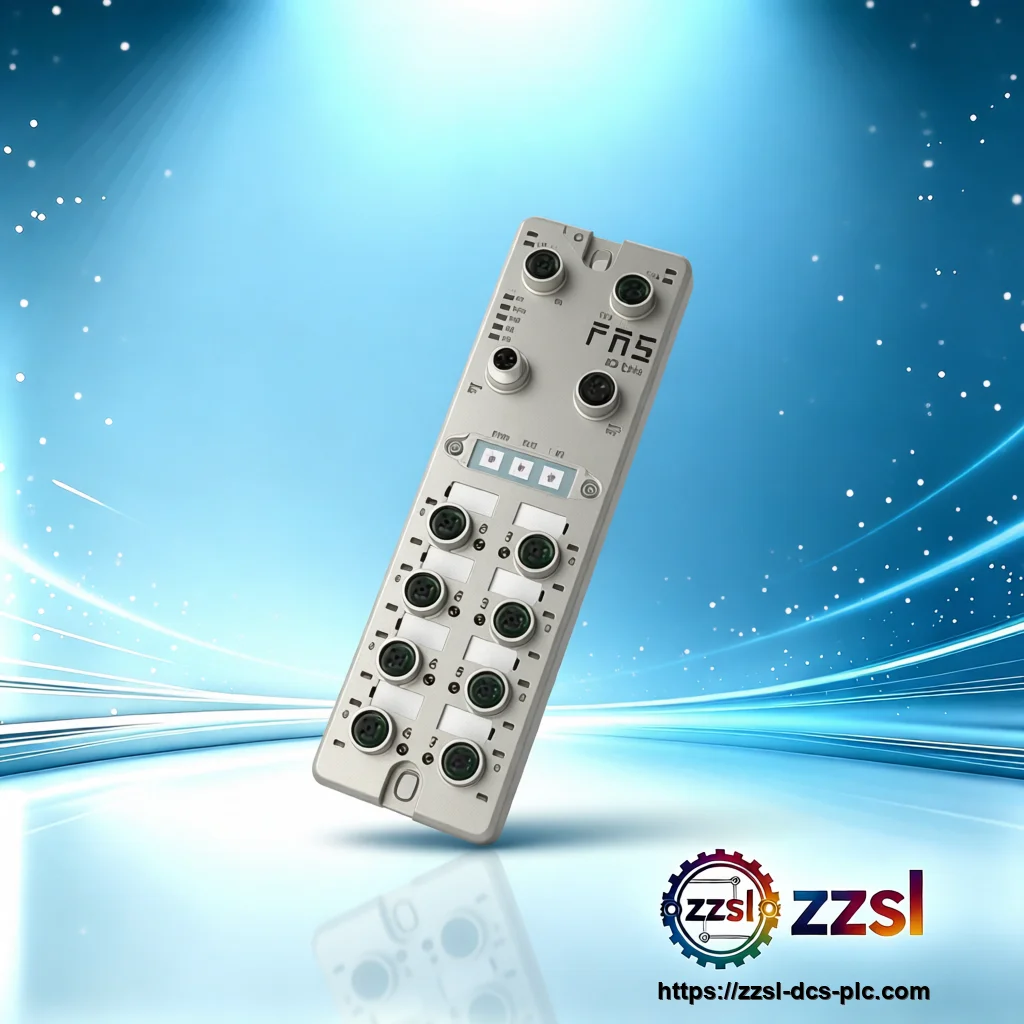

FAS IO-Link Master Module NETWORK BLOCKS,007B31,FAS
Home > FAS > IO-Link Modules > 007B31 Need FAS NETWORK BLOCKS,007B31,FAS? IO-Link Master Module for PROFINET, EtherNet/IP, CC-Link IE Field Basic and …
Contact us for current availability and best price of NETWORK-BLOCKS007B31FAS.
Specifications
| Brand | FAS |
|---|---|
| Model Number | 007B31 |
| Official Product Name | IO-Link Master, Multiprotocol, 8 Ports, Class A (type FNI MPL-506-105-M) |
| Applicable System | PROFINET, EtherNet/IP, CC-Link IE Field Basic and Modbus TCP industrial networks |
| Product Type | IO-Link Master Module / Remote Digital I/O Module |
| Equivalent Standard | IEC 60529 (IP67); CE |
| Product Status | In Stock |
| IO-Link ports | 8 x IO-Link, Class A (IO-Link v1.1) |
| Digital I/O | Up to 16 PNP inputs / up to 8 PNP outputs, configurable |
| Network protocols | PROFINET, EtherNet/IP, CC-Link IE Field Basic, Modbus TCP |
| Rated operating voltage | 18-30 V DC |
| Current consumption | <= 150 mA at 24 V DC |
| Fieldbus connection | M12, D-coded, female |
| Power connection | M12, L-coded, male/female |
| I/O port connection | M12, A-coded, female |
| Max load current, sensor / channel | 1 A |
| Max output load current | 2 A |
| Total current (UA / US) | <= 16 A |
| Degree of protection | IP67 (when correctly connected, IEC 60529) |
| Operating temperature | -25 to +70 degrees C |
| Storage temperature | -25 to +85 degrees C |
| Dimensions (L x W x H) | approx. 222.4 x 65 x 25.8 mm |
| Housing material | Nickel-plated Gd-Zn die-cast alloy |
| Approvals | CE |
| Order code / type | 007B31 / FNI MPL-506-105-M |
Product Description
It provides eight Class A IO-Link ports and supports multiprotocol operation over PROFINET, EtherNet/IP, CC-Link IE Field Basic and Modbus TCP. Each module offers up to 16 PNP digital inputs and 8 PNP digital outputs, with M12 connectors for fieldbus, power and I/O. Its rugged nickel-plated die-cast housing and wide temperature range suit demanding industrial environments. The FAS 007B31 (type FNI MPL-506-105-M) is a field-mount IO-Link master and digital I/O module designed for IP67 installation directly on the machine.
Basic Product Information
- Multiprotocol fieldbus: PROFINET, EtherNet/IP, CC-Link IE Field Basic and Modbus TCP
- Up to 16 PNP digital inputs and 8 PNP digital outputs, input/output configurable
- IP67 rated for direct field mounting with a wide -25 to +70 degrees C operating range
- M12 D-coded fieldbus, M12 L-coded power and M12 A-coded I/O connections
- MRP ring redundancy and full module, network and port status/diagnostic LEDs
- 8 x IO-Link Class A master ports (IO-Link v1.1)
Technical Specifications
Version & Model Difference
The 007B31 is a multiprotocol IO-Link master: the active protocol is selected by restoring factory settings and switching the communication protocol in the module configuration. Network segment modification, and for CC-Link IE Field Basic the number of occupied stations, applies only to the EtherNet/IP and CC-Link IE Field Basic protocols. The module uses Class A master ports and is documented in the 26-page FAS brochure.
Application Scenarios
- Distributed sensor and actuator connection in IP67 field installations
- Factory and process automation I/O
- Packaging, material handling and assembly lines
- IO-Link parameterisation and device diagnostics at machine level
- FAS 00B811 Industrial Network Block
- FAS 007B31 IO-Link Master Module
- FAS 00B811 Industrial Field I/O Device
Frequently Asked Questions
How many IO-Link devices can the FAS 007B31 connect?
It has eight Class A IO-Link master ports and can connect up to eight IO-Link protocol devices.
Which fieldbus protocols does it support?
PROFINET, EtherNet/IP, CC-Link IE Field Basic and Modbus TCP, selectable through the module configuration.
What digital I/O does it provide?
Up to 16 PNP digital inputs and up to 8 PNP digital outputs, configurable per port.
What protection rating does it have?
IP67 when correctly connected, allowing direct field mounting, with an operating temperature range of -25 to +70 degrees C.
