OEM Dual Module,IGBT SKM100GB176D,OEM
ModuleIGBT-SKM100GB176DOEM
Other Brands
OEM Dual Module,IGBT SKM100GB176D,OEM
Home > OEM > IGBT Modules > SKM100GB176D Need OEM Module,IGBT SKM100GB176D,OEM? Dual for Industrial inverters, motor drives, UPS and power converters.…
Contact us for current availability and best price of ModuleIGBT-SKM100GB176DOEM.
Specifications
| Brand | OEM |
|---|---|
| Model Number | SKM100GB176D |

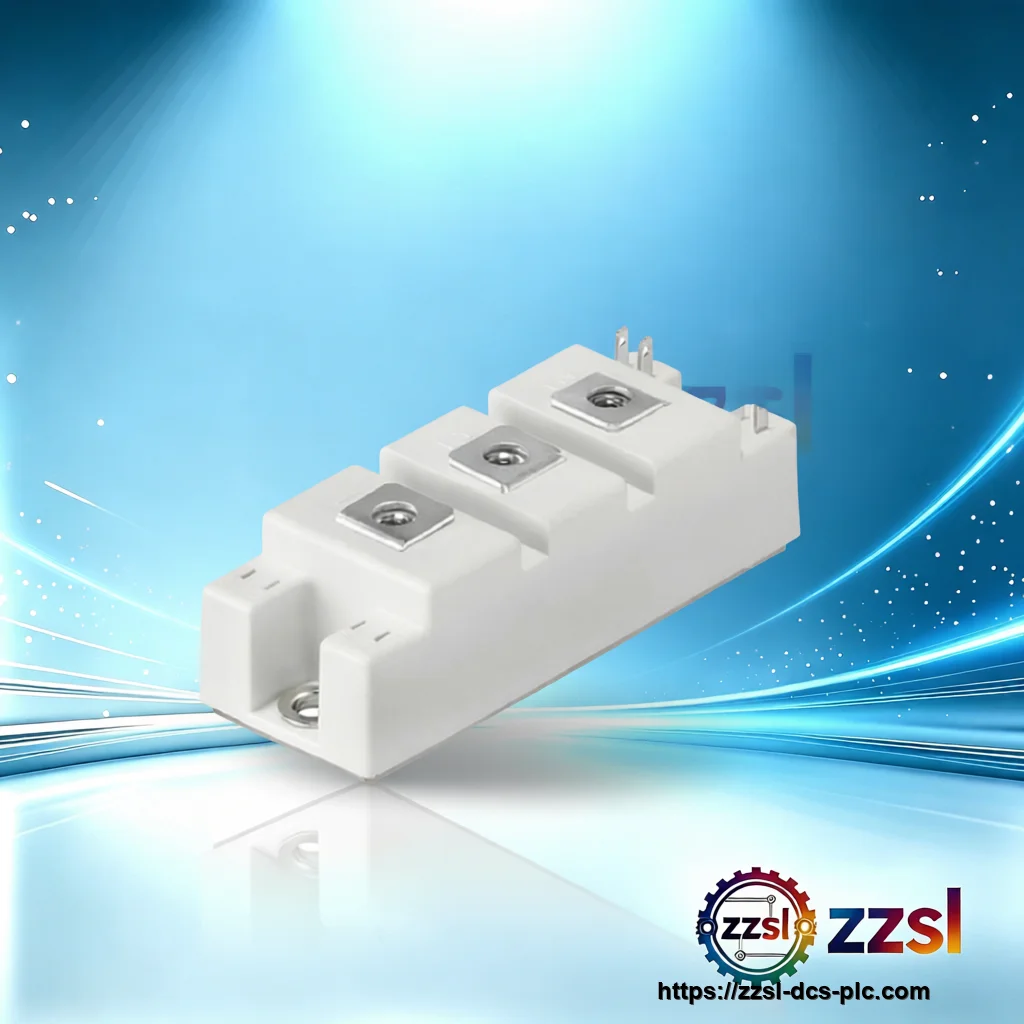

| Official Product Name | SKM100GB176D Dual (Half-Bridge) IGBT Power Module, SEMITRANS 2 |
| Applicable System | Industrial inverters, motor drives, UPS and power converters |
| Product Type | Dual / half-bridge IGBT power module |
| Equivalent Standard | SEMITRANS 2 (approx. 62 mm) package standard |
| Product Status | In Stock |
| Collector-Emitter Voltage (VCES) | 1700 V |
| Continuous DC Collector Current (IC) | 100 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | Typ. 2.25 V at 100 A, 25 degC |
| Gate-Emitter Threshold Voltage (VGE(th)) | Typ. 5.5 V |
| Recommended Gate Drive Voltage | +15 V / -8 to -15 V |
| Isolation Voltage | 2500 V AC (1 min) |
| Short-Circuit Withstand Time | 10 microseconds |
| Switching Frequency | Up to 20 kHz |
| Operating Junction Temperature | -40 to 150 degC |
| Package | SEMITRANS 2 (approx. 62 mm) with screw terminals |
| Built-in Sensor | NTC thermistor |
| Type | Dual (half-bridge) IGBT module |
Product Description
It combines two trench-gate IGBT switches with fast CAL freewheeling diodes and an integrated NTC thermistor for temperature monitoring, delivering low saturation voltage and high short-circuit capability. The module is used in inverters and power converters for motor drives, UPS systems, welding equipment and renewable-energy applications. The SKM100GB176D is a dual (half-bridge) IGBT power module rated 1700 V and 100 A, built to the SEMITRANS 2 (62 mm) industry-standard footprint.
Basic Product Information
- Trench-gate IGBT technology with positive temperature coefficient VCE(sat) for easier paralleling
- Low saturation voltage, typically 2.25 V at 100 A / 25 degC
- High, self-limiting short-circuit capability with 10 microsecond short-circuit withstand time
- Integrated NTC thermistor for temperature monitoring plus fast CAL freewheeling diodes
- SEMITRANS 2 (approx. 62 mm) insulated package with screw terminals
- Dual (half-bridge) IGBT module, 1700 V collector-emitter voltage and 100 A continuous current
Technical Specifications
Version & Model Difference
The SKM100GB176D is the 1700 V / 100 A member of the dual-IGBT family in the SEMITRANS 2 package. Similar modules differ in voltage class (1200 V, 1700 V) and current rating, and pin-compatible alternatives exist from other manufacturers, so the exact voltage and current class must be confirmed for a replacement.
Application Scenarios
- AC and DC motor drive inverters
- Uninterruptible power supply (UPS) systems
- Welding inverters and induction heating equipment
- Renewable-energy (solar / wind) power converters
- 35kHz Ultrasonic Converter for Hand-Held Plastic Welding
- OEM BA15S 24V LED Bulb - Single Contact Bayonet Lamp
- OEM BA15S-24V-LED 24V BA15s LED Indicator Lamp
- OEM 35KHz Ultrasonic Handheld Spot Welder
- OEM MIT-005-03-KA Spare Part
- OEM EUS70001X Spare Part
- OEM XN60110300 Spare Part
- Toho PXGR32-V6-020P Terminal Module
Frequently Asked Questions
What is the voltage and current rating of the SKM100GB176D?
It is rated 1700 V collector-emitter and 100 A continuous collector current.
Does the module include a temperature sensor?
Yes, it has an integrated NTC thermistor for temperature monitoring.
What gate drive voltage should be used?
Typically +15 V for turn-on and -8 V to -15 V for turn-off.
What package does it use?
The SEMITRANS 2 (approx. 62 mm) insulated package with screw terminals.
Need ModuleIGBT-SKM100GB176DOEM?
Get a Quote in Minutes.
12-month warranty · No MOQ · Worldwide shipping with tracking
Request a Quote
Get the latest price, stock status and bulk order discount for ModuleIGBT-SKM100GB176DOEM. Our team replies within 30 minutes (working hours).
