MTL-5546Y

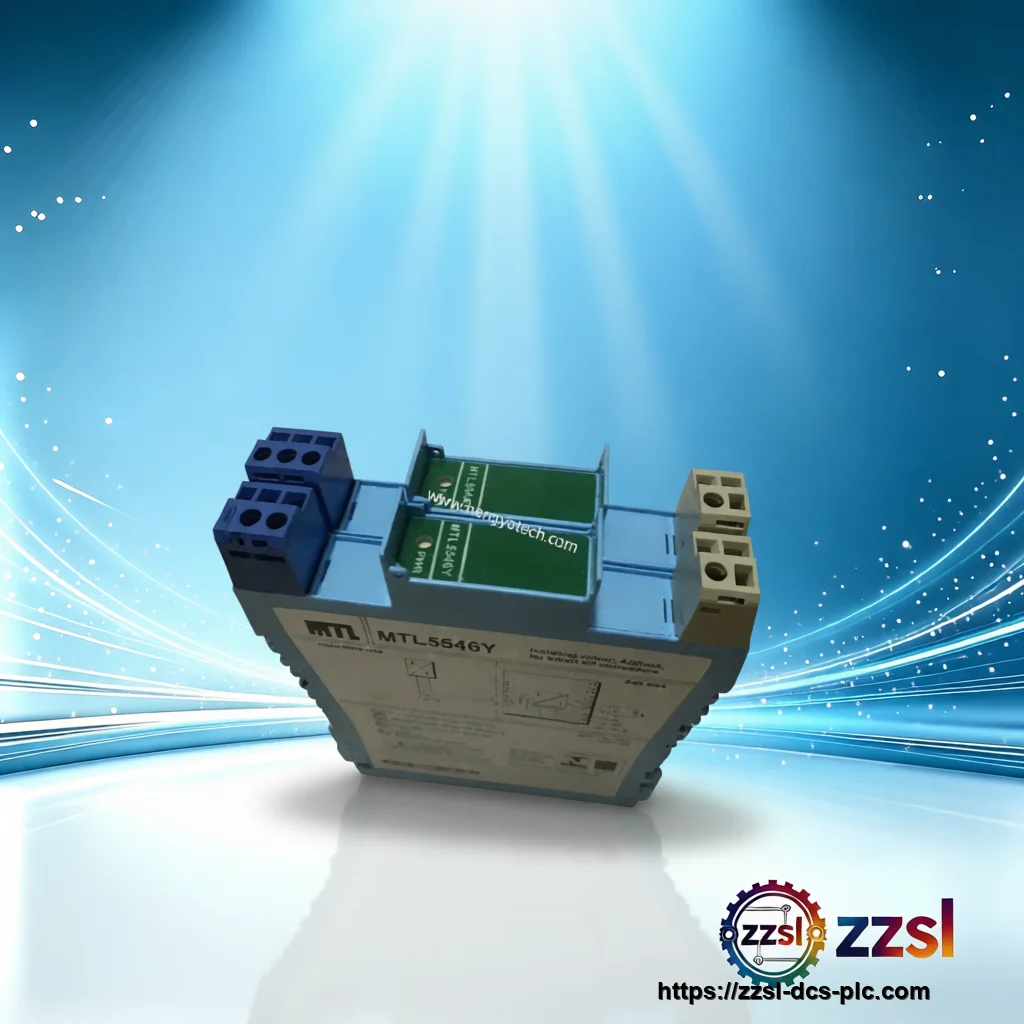

MTL Analog output galvanic isolator MTL 5546Y
Other Brands
MTL Analog output galvanic isolator MTL 5546Y
['Home', 'Process Safety', 'Intrinsically Safe Barriers', 'MTL 5546Y'] Need MTL MTL 5546Y? Analog output galvanic isola…
Specifications
| Brand | MTL Instruments |
|---|---|
| Model Number | 5546Y |
| Official Product Name | Analog Output Isolator 5546Y |
| Applicable System | Intrinsically safe / hazardous-area loops (MTL 5000 series) |
| Product Type | Analog output galvanic isolator / barrier |
| Equivalent Standard | Contact supplier for exact specifications |
| Product Status | Active |
| Signal | 4-20 mA (HART transparent) |
| Max load | 800 ohm |
| Safety integrity | SIL3 |
| Isolation type | Galvanic barrier |
| Supply / bus | Contact supplier for exact specifications |
| Mounting | Contact supplier for exact specifications |
| Channels | 1 analog output channel |
Product Description
Basic Product Information
- HART communication transparent through the loop
- Supports up to 800 ohm field load
- SIL3 safety integrity certified
- Galvanic isolation for hazardous-area protection
- Single-channel 4-20 mA analog output isolation
Technical Specifications
Version & Model Difference
- The 5546Y is the HART analog output isolator in the MTL 5000 series; current-source, voltage and other signal variants exist. Select by signal type. Contact supplier for exact specifications.
Application Scenarios
- Analog output to valves and indicators in Ex areas
- HART loop isolation in process plants
- SIL3 safety-related signal isolation
- Yes. HART communication is transparent through the isolated loop.
