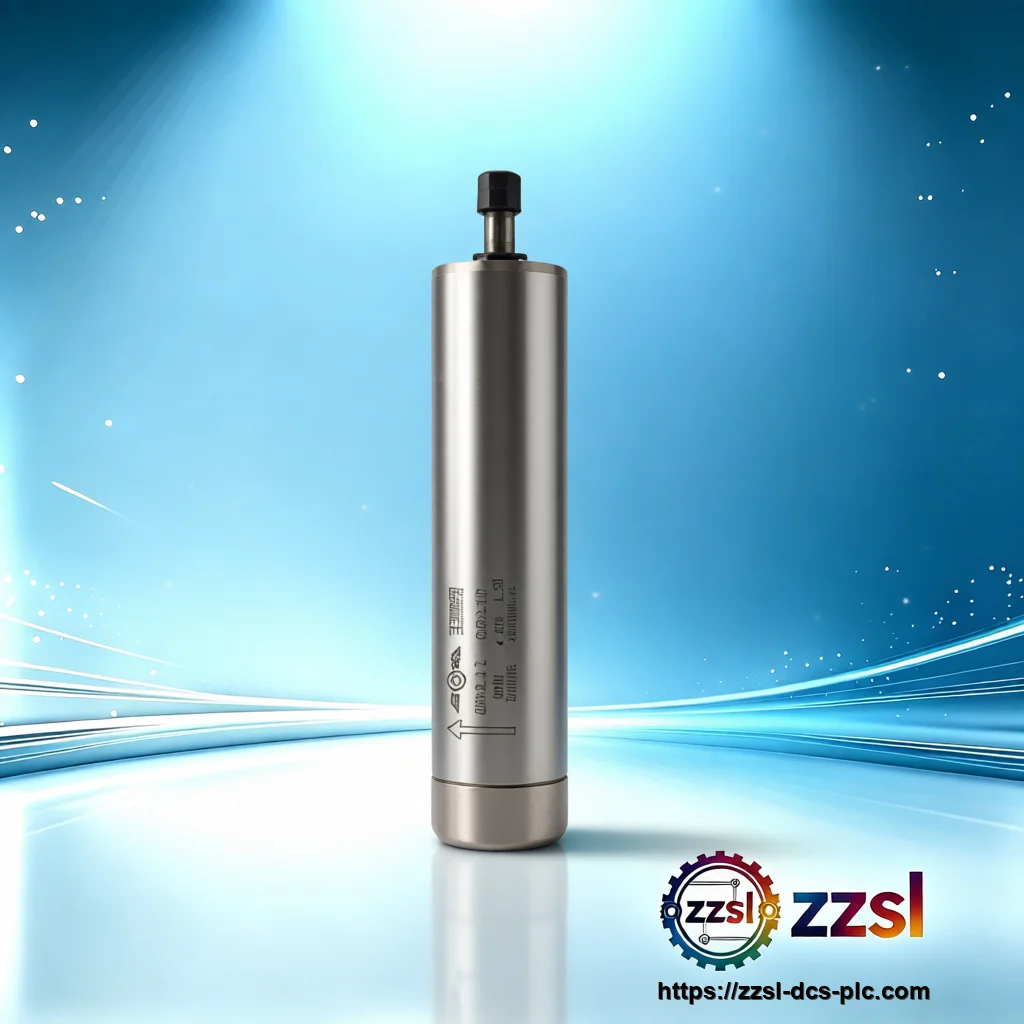

GDZ Water-Cooled CNC MOTOR QUAY DAO,GDZ 62 1.2 60000 RPM,GDZ
Home > GDZ > CNC Spindle Motors > GDZ62-1.2 Need GDZ MOTOR QUAY DAO,GDZ 62 1.2 60000 RPM,GDZ? Water-Cooled CNC Spindle Motor for CNC router / milling …
Contact us for current availability and best price of MOTOR-QUAY-DAOGDZ-62-12-60000-RPMGDZ.
Specifications
| Brand | GDZ |
|---|---|
| Model Number | GDZ62-1.2 (GDZ 62 1.2 60000 RPM) |
| Official Product Name | GDZ Series Water-Cooled High-Speed CNC Spindle Motor |
| Applicable System | CNC router / milling and engraving machine |
| Product Type | Water-Cooled CNC Spindle Motor |
| Equivalent Standard | CE marked; ER11 tool interface |
| Product Status | In Stock |
| Power | 1.2 kW |
| Maximum Speed | 60,000 RPM |
| Voltage | 220 V |
| Current | 4.5 A |
| Frequency | 1000 Hz |
| Torque | 0.49 Nm |
| Collet / Tool Interface | ER11 (3.175 mm, 4 mm, 6 mm) |
| Cooling | Water-cooled |
| Bearing Type | 7002C P4 x2 + 7000C P4 x2 |
| Runout | 0.01-0.02 mm |
| Body Diameter | 62 mm |
| Weight | Approx. 4.5 kg |
| Lubrication | Grease |
| Spindle Type | GDZ62-1.2 |
Product Description
Running up to 60,000 RPM with 1.2 kW of power, it uses an ER11 tool interface and precision 7002C/7000C angular-contact bearings for high concentricity and low runout. Water cooling keeps the stator temperature stable during continuous high-speed cutting, helping extend bearing and winding life. It is powered by a matching VFD inverter set to 220 V and 1000 Hz, and is typically used for fine milling, drilling and engraving of wood, acrylic, plastic and non-ferrous materials. The GDZ62-1.2 is a water-cooled high-speed spindle motor from the GDZ series, built for CNC routers, milling and engraving machines.
Basic Product Information
- High 60,000 RPM maximum speed with 1000 Hz drive frequency
- ER11 collet interface accepts 3.175 mm, 4 mm and 6 mm tools
- Precision 7002C P4 and 7000C P4 bearings for low runout of 0.01-0.02 mm
- Compact 62 mm diameter body and light ~4.5 kg weight for easy machine mounting
- Water-cooled GDZ62-1.2 spindle motor rated 1.2 kW at 220 V
Technical Specifications
Version & Model Difference
The GDZ62-1.2 belongs to the GDZ water-cooled spindle family, which also includes 800 W, 1.5 kW and 2.2 kW ratings in similar 62-80 mm bodies. The '60000 RPM' designation identifies the high-speed variant driven at 1000 Hz; lower-speed GDZ spindles run at 400 Hz or 600 Hz. The spindle cannot run from mains power directly and must be matched to a VFD inverter set to its rated voltage, current and maximum frequency, otherwise the motor can burn out on start-up.
Application Scenarios
- High-speed engraving and fine milling on CNC routers
- Drilling and light cutting of wood, acrylic, PVC and soft non-ferrous materials
- Sign-making and PCB processing where high spindle RPM is required
- GDZ62-1.2 1.2kW Water-Cooled CNC Spindle Motor
Frequently Asked Questions
Can the GDZ62-1.2 spindle run directly from mains power?
No. Like all motor spindles it must be driven by a VFD inverter set to 220 V and 1000 Hz. Connecting it directly to the mains will damage the motor immediately.
What collets does this spindle use?
It uses an ER11 collet interface, so it accepts 3.175 mm, 4 mm and 6 mm shank tools.
How is the GDZ62-1.2 cooled?
It is water-cooled. A water pump and pipe kit circulate coolant through the housing to keep the stator temperature stable at 60,000 RPM.
What is the warranty on the bearings and other parts?
Typically the bearings are covered for about six months and the other spindle parts for one year. Contact us for details on the current batch.
