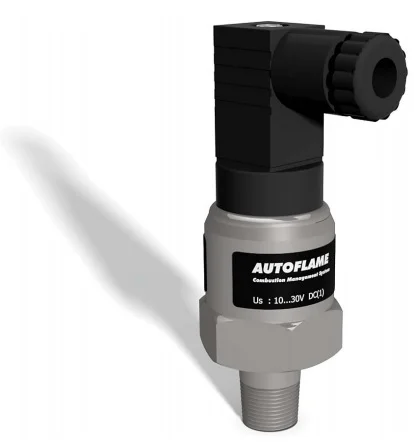

AUTOFLAME Pressure sensor MM10008
Home > Autoflame > Pressure Sensors > MM10008 Need AUTOFLAME MM10008? Pressure sensor for Autoflame Mk8 MM / Mini Mk8 MM burner management systems. Su…
Specifications
| Brand | Autoflame |
|---|---|
| Model Number | MM10008 |
| Official Product Name | MM10008 Steam Pressure Sensor |
| Applicable System | Autoflame Mk8 MM / Mini Mk8 MM burner management systems |
| Product Type | Pressure sensor |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Sensor Type | Steam pressure sensor (medium pressure) |
| Pressure Range | 0 - 20 bar (0 - 300 PSI) |
| Overpressure Limit | 50 bar (725 PSI) |
| Burst Pressure | 80 bar (1160 PSI) |
| Process Connection | 1/4 inch NPT female |
| Cable Entry | PG 7 |
| O-Ring Material | Viton |
| Storage / Operating Temperature | -25 C to +85 C (-13 F to 185 F) |
| Tightening Torque | 15 - 20 Nm |
| Compatible Controllers | Autoflame Mk8 MM and Mini Mk8 MM |
| Manufacturer Part Number | MM10008 |
Product Description
It measures steam pressure over a range of 0 to 20 bar (0 to 300 PSI) and feeds the reading to the MM controller for boiler load demand and firing-rate modulation. The sensor uses a 1/4 inch NPT female process connection, a Viton O-ring seal and a PG 7 cable entry, and must be installed with a pressure siphon loop as specified by Autoflame. It is a genuine Autoflame load-detector accessory for steam boiler applications. The Autoflame MM10008 is a medium-range steam pressure sensor used with Autoflame Mk8 MM and Mini Mk8 MM burner management systems.
Basic Product Information
- Measuring range 0 to 20 bar (0 to 300 PSI) for boiler load detection
- Overpressure rated to 50 bar (725 PSI) with 80 bar (1160 PSI) burst pressure
- Viton O-ring seal with 1/4 inch NPT female process connection and PG 7 cable entry
- Medium-pressure steam sensor for Autoflame MM combustion control
Technical Specifications
Version & Model Difference
Autoflame uses a common sensor family with different pressure ranges: MM10010 (0-3.4 bar), MM10008 (0-20 bar), MM10009 (0-34 bar) and MM10017 (0-100 bar). The MM10008 is the medium-pressure steam variant; select the sensor range that matches the boiler's operating pressure.
Application Scenarios
- Steam boiler pressure monitoring and firing-rate control
- Industrial burner management and combustion optimisation
- Boiler retrofits using Autoflame MM control systems
- Autoflame MM100008 Boiler Steam Pressure Sensor
Frequently Asked Questions
What pressure range does the Autoflame MM10008 cover?
The MM10008 measures 0 to 20 bar (0 to 300 PSI), making it the medium-pressure steam sensor in the Autoflame range.
Which controllers is the MM10008 compatible with?
It is designed for Autoflame Mk8 MM and Mini Mk8 MM burner management systems and is wired to the load-detector terminals on the controller.
How should the MM10008 be installed?
It must be fitted with a pressure siphon loop and no isolation valve should be installed between the detector and the pressure vessel, per Autoflame guidance.
What is the process connection and seal?
The sensor has a 1/4 inch NPT female connection with a Viton O-ring, tightened to 15-20 Nm.
