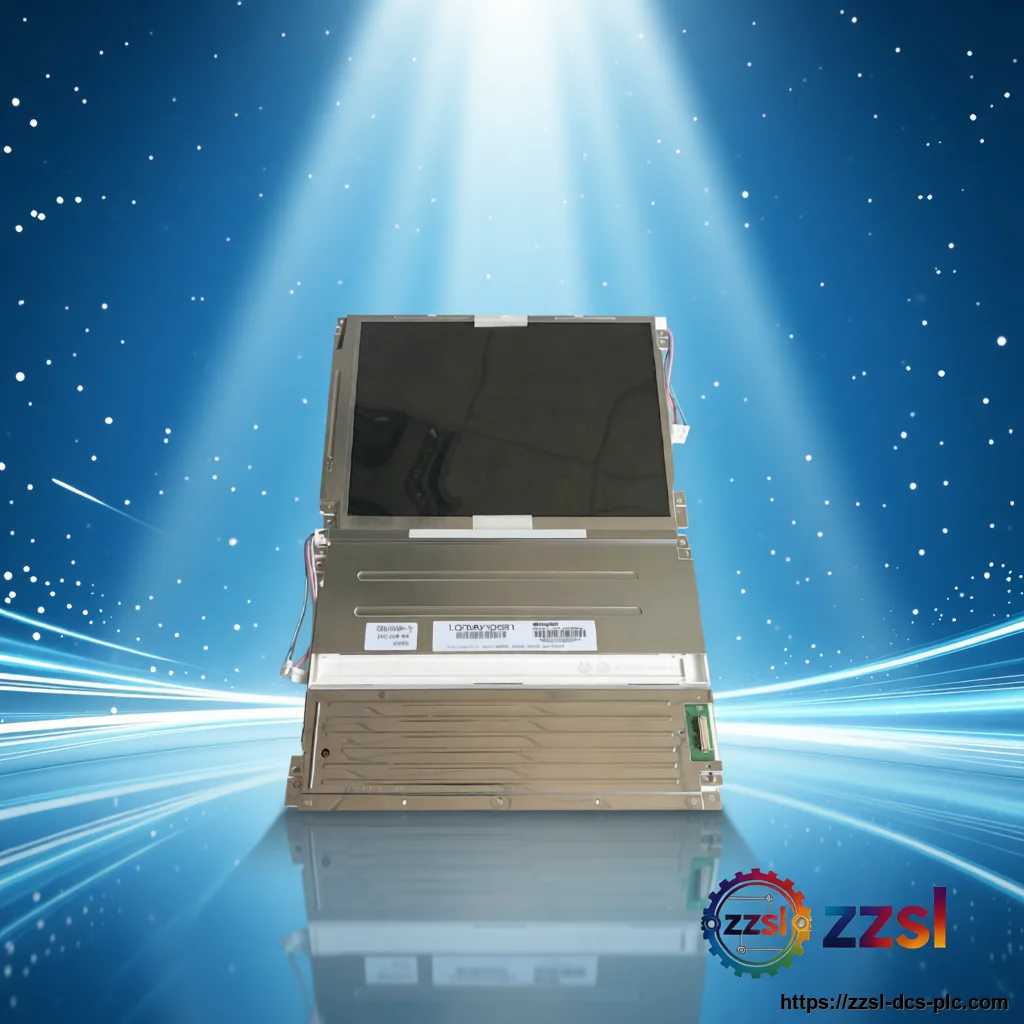

Sharp Industrial TFT LCD display module LQ104V1DG61
LQ104V1DG61
Other Brands
Sharp Industrial TFT LCD display module LQ104V1DG61
Home > Products > Sharp > Industrial LCD Panel Sharp LQ104V1DG61 Industrial TFT LCD display module. For Industrial HMI, control panels and display ter…
Quoted price from our sales team
Specifications
| Brand | Sharp |
|---|---|
| Model Number | LQ104V1DG61 |
| Official Product Name | 10.4 inch a-Si TFT-LCD Module |
| Applicable System | Industrial HMI, control panels and display terminals |
| Product Type | Industrial TFT LCD display module |
| Equivalent Standard | N/A |
| Product Status | Discontinued (available as stock / replacement) |
| Resolution | 640 x 480 (VGA), 76 PPI |
| Brightness | 450 cd/m2 (typ.) |
| Contrast Ratio | 600:1 (typ.) |
| Interface | Parallel RGB (1 ch, 6-bit), 31 pins |
| Backlight | CCFL x2, 50,000 hours |
| Active Area | 211.2 x 158.4 mm |
| Outline Dimensions | 246.5 x 179.4 x 13.7 mm |
| Weight | 620 g (max.) |
| Diagonal Size | 10.4 inch |
Product Description
It is widely used as a replacement display in industrial HMIs and control panels. Note: the queue shows brand 'LQ104V1DG61' with model 'LCD'; the actual manufacturer is Sharp. The LQ104V1DG61 is a 10.4-inch a-Si TFT-LCD module from Sharp's Strong2 series, with 640 x 480 (VGA) resolution, 450 cd/m2 brightness and CCFL backlight.
Basic Product Information
- High brightness 450 cd/m2 and 600:1 contrast
- Wide operating temperature -30 to +80 deg C for industrial use
- Antiglare hard-coated surface (3H), TN transmissive
- Parallel RGB (1 ch, 6-bit) 31-pin interface
- 10.4 inch a-Si TFT-LCD with VGA 640 x 480 resolution
Technical Specifications
Version & Model Difference
Part of Sharp's Strong2 industrial LCD series. Replacement or equivalent panels should match the 31-pin Parallel RGB interface, resolution and outline dimensions. Newer LED-backlit equivalents may require adapter boards.
Application Scenarios
- Replacement display for industrial HMIs and control panels
- Factory automation and medical instrument displays
- Transportation and outdoor information terminals
- Legacy equipment display refurbishment
- Sharp LQ121S1LG81 12.1-Inch SVGA Industrial TFT LCD Panel
- Sharp LQ121S1LG61 12.1-Inch SVGA Industrial TFT LCD Panel
- Sharp PC929 IGBT Gate Drive Optocoupler
- Sharp LQ057Q3DC03 5.7 inch TFT LCD Module
- Sharp LQ057Q3DC03 5.7" TFT LCD Module (LQ057Q3DC03)
Frequently Asked Questions
Who makes the LQ104V1DG61?
It is a Sharp 10.4-inch TFT LCD panel; the queue brand field is incorrectly set to the model number.
What interface does it use?
It uses a Parallel RGB (1 channel, 6-bit) 31-pin interface.
What are its operating temperature limits?
It operates from -30 to +80 deg C, suitable for industrial environments.
Is this panel still in production?
The LQ104V1DG61 is discontinued; stock and replacement units are available from LCD suppliers.
