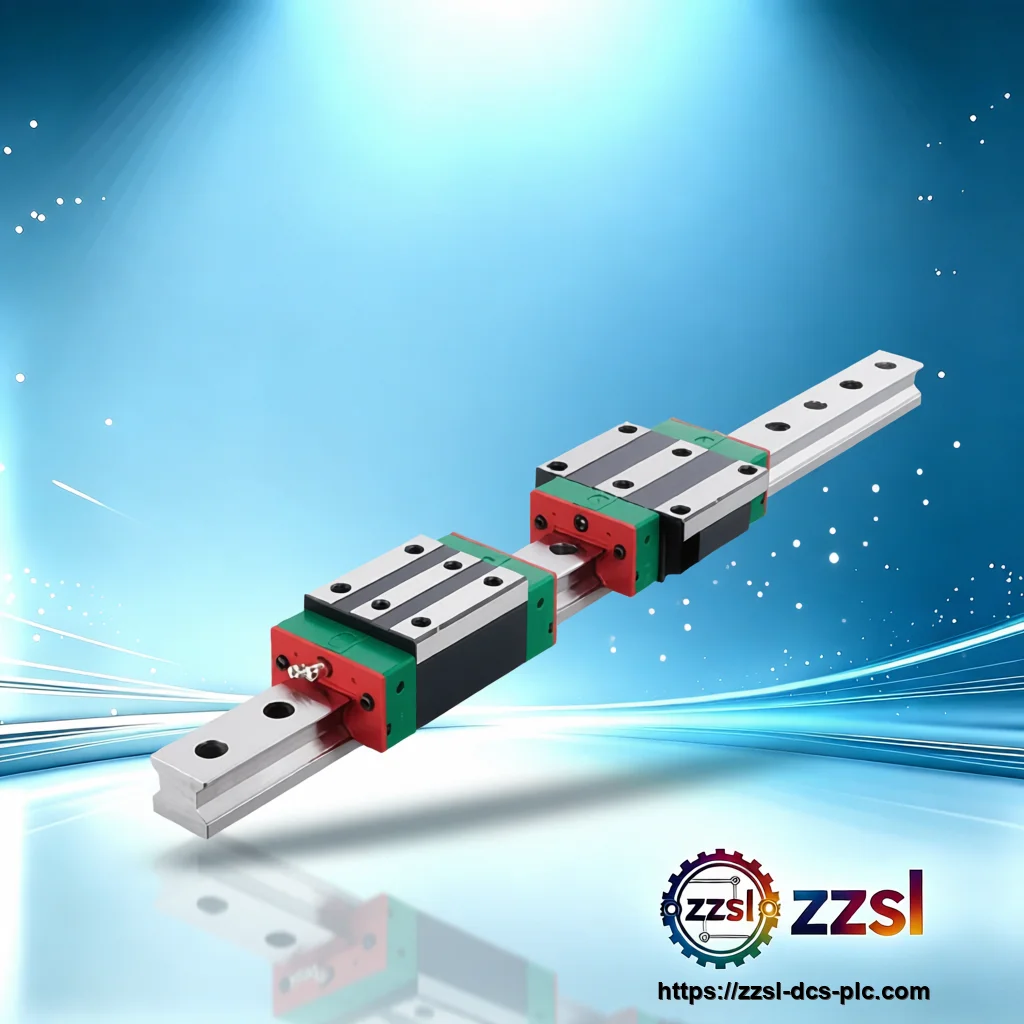

HIWIN Component HGW45HC
Home > Products > Linear Motion > LM Blocks > HIWIN HGW45HC Need HIWIN HGW45HC? Component for HIWIN HGW45HC series linear guide rails. Supplied wit…
Specifications
| Brand | HIWIN |
|---|---|
| Model Number | HGW45HC |
| Official Product Name | LM BLOCK, HGW45HC, HIWIN |
| Applicable System | HIWIN HGW45HC series linear guide rails |
| Product Type | Component (LM Block / Carriage) |
| Equivalent Standard | HIWIN HGW45CC (compact type), HGW45HA (standard type) |
| Product Status | Active |
| Lifecycle note | Active, in production |
| Height (mm) | 45 |
| Length (mm) | 97.5 |
| Basic Dynamic Load Rating (kN) | 77.6 |
| Basic Static Load Rating (kN) | 111.4 |
| Maximum Acceleration (m/s2) | Contact us for details |
| Weight (kg) | 3.69 kg |
| Rail Width Compatibility (mm) | 45 |
| Mounting Hole Spacing (mm) | Contact us for details |
| Sealing | Standard end seals, optional side seals |
| Lubrication | Grease fitting, oil hole |
| Operating Temperature (degC) | -20 to +80 |
| Dynamic Load Rating (C) | 125.3 kN |
| Static Load Rating (C0) | 191.85 kN |
| Country of Origin | Taiwan |
| Width (mm) | Total height 60 mm, Block width 120 mm, Block length 171.2 mm |
Product Description
128.00 USD （参考价 / est. market price）
Basic Product Information
- Precision-ground raceways for smooth and accurate motion
- Interchangeable with HIWIN HGW45HC series rails
- Equipped with end seals and lubrication fittings for easy maintenance
- Available in standard and preloaded versions to suit various stiffness requirements
- High load capacity and rigidity for heavy-duty applications
Technical Specifications
Version & Model Difference
The HGW45HC is part of HIWIN's HGW45 series. The 'HC' suffix indicates a heavy load, standard length carriage. Compared to the HGW45CC (compact type), the HC version has a longer length and higher load capacity. The HGW45HA is a standard type with similar dimensions but different internal ball arrangement. This model is the standard version, suitable for most industrial applications.
Application Scenarios
- CNC machine tools (milling, turning, grinding)
- Automated production lines and robotic systems
- Precision positioning stages and inspection equipment
- Heavy-duty material handling and transfer systems
- Retrofit and replacement for existing linear guide systems
