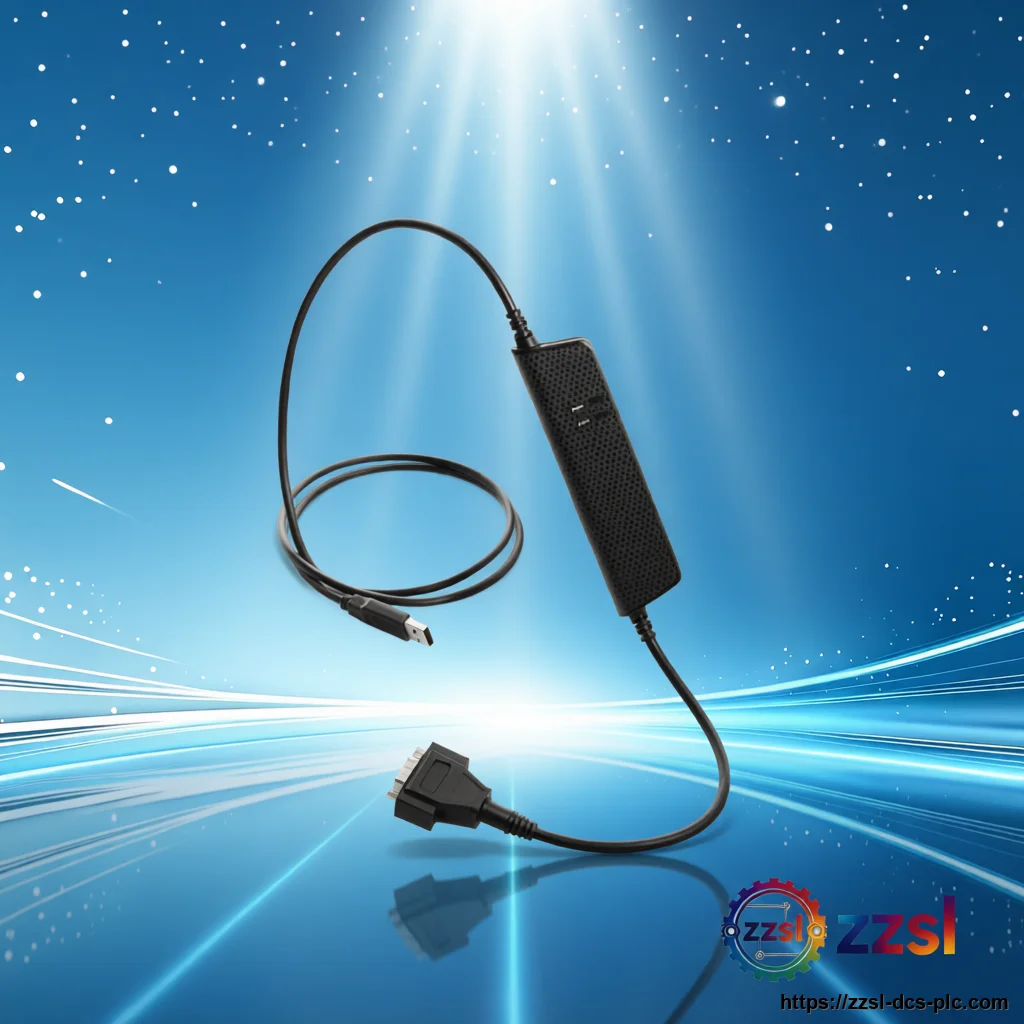

LEAF-LIGHT-V2
Kvaser CAN Bus Analyzer LEAF LIGHT V2
Other Brands
Kvaser CAN Bus Analyzer LEAF LIGHT V2
Home > Products > Kvaser > CAN Bus Analyzers Need Kvaser LEAF LIGHT V2? CAN Bus Analyzer for CAN bus systems. Supplied with full traceability and docu…
Contact us for current availability and best price of LEAF-LIGHT-V2.
Specifications
| Brand | Kvaser |
|---|---|
| Model Number | 73-30134-00614-8 |
| Official Product Name | Kvaser LEAF LIGHT V2 |
| Applicable System | CAN bus systems (CAN 2.0A/2.0B, CAN FD) |
| Product Type | CAN Bus Analyzer / USB-to-CAN Interface |
| Equivalent Standard | ISO 11898-2 (CAN), ISO 11898-1 (CAN FD) |
| Product Status | In Stock |
| Channels | 2 (dual CAN channels) |
| Galvanic Isolation | 80V |
| Processor | 100 MHz |
| Timestamp Resolution | 1 µs (16 MHz clock) |
| USB Interface | USB 2.0 (full speed) |
| Power Supply | Powered from USB (5V DC) |
| Operating Temperature | -40°C to +85°C |
| Housing Material | Aluminum |
| Dimensions | 35 x 18 x 10 mm (approx.) |
| Weight | 20 g (approx.) |
| Certifications | CE, RoHS, FCC |
| Bit Rate | 5 Mbit/s (CAN FD), 1 Mbit/s (CAN 2.0) |
Product Description
It supports both CAN 2.0A and CAN 2.0B standards, with a maximum bit rate of 5 Mbit/s (with CAN FD enabled) or 1 Mbit/s for classic CAN. The device is powered directly from the USB port, eliminating the need for an external power supply, and features galvanic isolation of 80V to protect the connected equipment from voltage spikes. This second-generation LEAF LIGHT V2 improves on its predecessor with a faster 100 MHz processor, enabling higher message throughput and more precise timestamping. It includes a built-in CAN controller and transceiver, and is compatible with Kvaser's CANlib SDK, allowing seamless integration with a wide range of software tools such as CANalyzer, CANoe, and PCAN-View. The device is also equipped with a 16 MHz clock for accurate time-stamping, and supports both single-line and dual-line CAN bus configurations. The LEAF LIGHT V2 is designed for use in automotive, industrial automation, and embedded systems environments. Its rugged aluminum housing and wide operating temperature range (-40°C to +85°C) make it suitable for harsh conditions. With plug-and-play installation and support for Windows, Linux, and macOS, it is an ideal choice for engineers and technicians who need a reliable, low-cost CAN interface for their projects. The Kvaser LEAF LIGHT V2 is a compact and reliable CAN bus analyzer that connects to a PC via USB, providing a simple and cost-effective solution for CAN bus development, testing, and diagnostics.
Basic Product Information
- USB 2.0 connection with plug-and-play installation
- Galvanic isolation of 80V to protect against voltage spikes
- 100 MHz processor for high message throughput and precise timestamping
- Compatible with Kvaser CANlib SDK and major CAN software tools
- Rugged aluminum housing with wide operating temperature range (-40°C to +85°C)
- Supports CAN 2.0A, CAN 2.0B, and CAN FD (up to 5 Mbit/s)
Technical Specifications
Version & Model Difference
The LEAF LIGHT V2 is the second generation of the LEAF LIGHT series. Compared to the original LEAF LIGHT, the V2 features a faster 100 MHz processor (up from 16 MHz), improved timestamp resolution (1 µs vs 100 µs), and enhanced CAN FD support with bit rates up to 5 Mbit/s. It also has a more compact design and updated firmware. The V2 is backward compatible with existing CANlib applications, but offers better performance for high-speed data logging and analysis.
Application Scenarios
