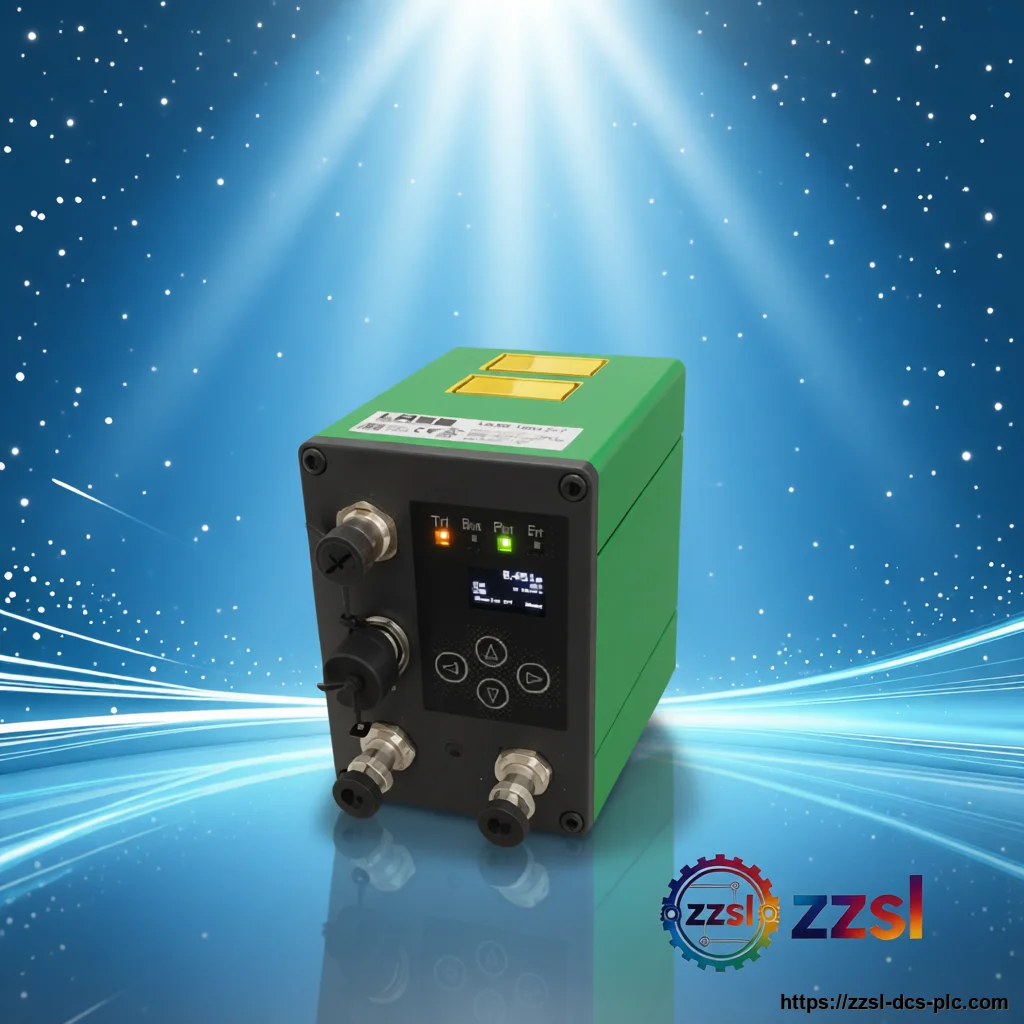

LASE Industrial laser distance sensor LASE 1000D-R
Home > Products > LASE > Laser Distance Sensor LASE LASE 1000D-R Industrial laser distance sensor. For Non-contact distance / position / level measure…
Specifications
| Brand | LASE (LASE Industrieelektronik) |
|---|---|
| Model Number | LASE 1000D-R |
| Official Product Name | LASE 1000D-R Laser Distance Sensor |
| Applicable System | Non-contact distance / position / level measurement |
| Product Type | Industrial laser distance sensor |
| Equivalent Standard | N/A |
| Product Status | Active |
| Measuring Method | Time of Flight (TOF) |
| Interfaces | RS232/RS422, SSI, 4-20 mA, Profibus DP |
| Switching Outputs | 2 configurable digital outputs |
| Supply Voltage | 18 to 30 Vdc |
| Laser Class | Class 1 (905 nm) / Class 2 (660 nm) |
| Protection | IP65 |
| Weight | Approx. 1.5 kg |
| Measuring Range | Up to 800 m on reflector (HR reflectors) |
Product Description
LASE LASE 1000D-R Industrial laser distance sensor. For Non-contact distance / position / level measurement. Supplied with full traceability and documentation.
It provides RS-232, RS-422, SSI and analogue 4-20 mA outputs plus two configurable switching outputs and Profibus DP, in an IP65 housing. The LASE 1000D-R is an industrial, non-contact one-dimensional laser distance sensor (time-of-flight) with a reflector, offering a measuring range up to 800 m.
Basic Product Information
- Multiple interfaces: RS-232, RS-422, SSI and 4-20 mA analogue
- Profibus DP as standard interface; two configurable switching outputs
- Laser class 1 (905 nm measuring, 660 nm marking), safe for intended use
- IP65 housing, 18-30 Vdc supply, up to 20 kHz measuring frequency
- Non-contact time-of-flight distance measurement up to 800 m on reflector
Technical Specifications
Version & Model Difference
- The 1000D-R includes a reflector; the sibling 1000D-T is supplied without reflector. Both share the same interfaces and housing. Confirm reflector requirement and interface option when ordering.
Application Scenarios
- Crane positioning and anti-collision
- Vehicle and object position measurement
- Level measurement of bulk solids and liquids
- Dimension and position monitoring in harsh environments
Frequently Asked Questions
What is the measuring range of the LASE 1000D-R?
It measures up to 800 m on HR reflectors (500 m on reflection foil, 110 m on white targets).
What interfaces are available?
RS-232, RS-422, SSI, analogue 4-20 mA and Profibus DP, with two digital switching outputs.
What supply voltage does it need?
It operates from 18 to 30 Vdc with approximately 0.25 A draw at 24 Vdc.
What is the difference between 1000D-R and 1000D-T?
The 1000D-R is supplied with a reflector; the 1000D-T is delivered without reflector.
