OTC Torch Insulator L10603D00
['Home', 'Spare Parts', 'OTC', 'L10603D00'] Need OTC L10603D00? Torch Insulator for Robotic and automatic MIG/MAG weldi…
Specifications
| Brand | OTC |
|---|---|
| Model Number | L10603D00 |
| Official Product Name | OTC DAIHEN L10603D00 Torch Insulator |
| Applicable System | Robotic and automatic MIG/MAG welding torches |
| Product Type | Torch Insulator (Welding Torch Consumable) |
| Equivalent Standard | cross-reference available on request |
| Product Status | Available - genuine part, stock confirmed per enquiry |
| Part Number | L10603D00 |
| Product Type | Torch insulator / insulating sleeve for welding torch head |
| Compatible Torch Series | OTC DAIHEN RT3500S, RT3500H and RT3500L (parts list item: Insulator, L10603D) |
| Function | Electrical isolation between live tip body / diffuser and grounded torch neck; also guides shielding gas |
| Material | Heat resistant insulating polymer (per OTC distributor description); exact grade available upon request |
| Related Torch Consumables | L10603B / L10603B04 torch body and Teflon bushing, L10603C01 tip body, L6380F01 spring washer, L7250Bxx contact tips, L10603C02 / L10603C03 nozzles |
| Alternative Insulator for MTX(C)-3531 Conversion | U608T (conversion consumable set) - not interchangeable with L10603D |
| Harmonized Commodity Code | 8515909000 (parts of welding machines / welding torch parts) |
| Dimensions | available upon request |
| Weight | available upon request |
| Country of Origin | available upon request (distributors describe the part as made in Japan) |
| Manufacturer | OTC DAIHEN (Daihen Corporation), Japan |
Product Description
It is listed as the insulator in the OTC DAIHEN RT3500S / RT3500H / RT3500L torch parts list, where it is seated between the live tip body / diffuser and the grounded torch neck to isolate the welding current and prevent internal arcing. It is a consumable item for torch maintenance and refurbishment. The OTC DAIHEN L10603D00 is a torch insulator (insulating sleeve) for robotic welding torches.
Basic Product Information
- Electrically isolates the contact tip body from the torch neck and nozzle, preventing internal arcing and short circuits
- Also forms part of the shielding gas passage, so correct fit preserves laminar gas flow
- Designed to withstand the radiant heat of continuous high-current robotic welding
- Genuine OTC DAIHEN torch consumable for RT3500 series robotic welding torches
Technical Specifications
Version & Model Difference
Within the OTC DAIHEN RT3500 torch family, the head assembly uses insulator L10603D in the standard configuration; torches converted to MTX(C)-3531 consumables use insulator U608T instead. The L10603D00 variant is the marketed spare part number for this insulator. Always confirm the insulator variant against the torch model before replacement.
Application Scenarios
- Scheduled maintenance and refurbishment of robotic welding torches
- Fault elimination where spatter or carbonisation causes internal arcing in the torch head
- Automotive, heavy fabrication and general robotic MIG/MAG welding lines
Conductive spatter and metal dust build up on the insulator surface and can bridge the isolation gap, causing internal arcing, a short circuit or a burnt torch neck. A carbonised or cracked insulator must be replaced immediately.

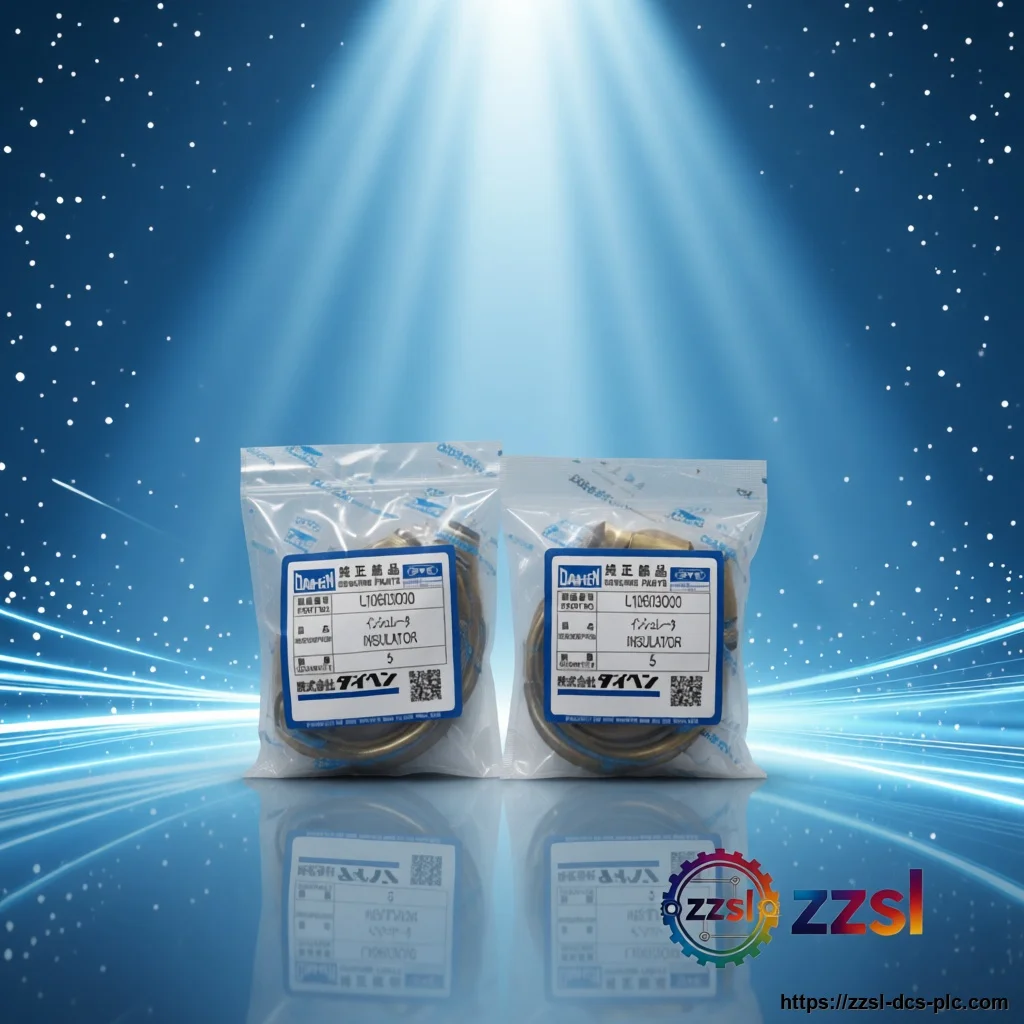

- OTC DAIHEN L10603D00 Robotic Welding Torch Insulator
Frequently Asked Questions
What is the OTC DAIHEN L10603D00?
It is a torch insulator (insulating sleeve) for OTC DAIHEN robotic welding torches. It is the insulator listed in the RT3500S, RT3500H and RT3500L torch parts list and isolates the live tip body from the grounded torch neck.
Which torches does the L10603D00 insulator fit?
It is listed for the OTC DAIHEN RT3500S, RT3500H and RT3500L torch bodies. Torches converted to MTX(C)-3531 consumables use insulator U608T instead, so the torch model must be confirmed before ordering.
Why does the torch insulator need periodic replacement?
Conductive spatter and metal dust build up on the insulator surface and can bridge the isolation gap, causing internal arcing, a short circuit or a burnt torch neck. A carbonised or cracked insulator must be replaced immediately.
How do I buy the OTC DAIHEN L10603D00?
Contact us with the required quantity and your torch model. Price, stock and lead time for the L10603D00 insulator are confirmed per order.
