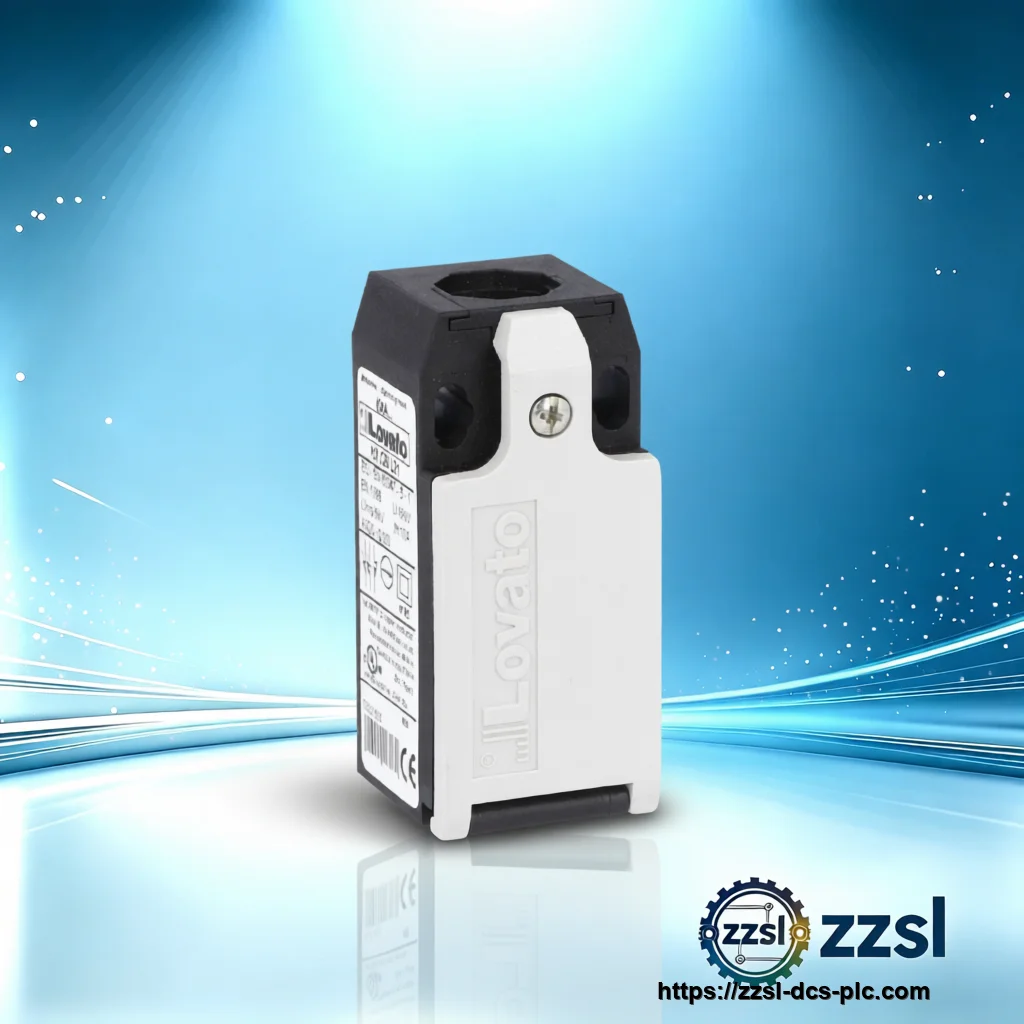

LOVATO Limit Switch Body KXCBS11
Home > LOVATO > Limit Switches > KXCBS11 Need LOVATO KXCBS11? Limit Switch Body for Industrial automation, machinery guarding, position detection. Sup…
Specifications
| Brand | LOVATO Electric |
|---|---|
| Model Number | KXCBS11 |
| Official Product Name | KXCBS11 Limit Switch Body |
| Applicable System | Industrial automation, machinery guarding, position detection |
| Product Type | Limit Switch Body (K series) |
| Equivalent Standard | EN 50047 / IEC 60947-5-1 |
| Product Status | In Stock |
| Housing material | Polymer thermoplastic |
| Cable entry | M20, bottom |
| Rated insulation voltage (Ui) | 690 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Thermal current (Ith) | 10 A |
| Protection degree | IP65 (body) / IP20 (terminals) |
| Operating temperature | -25 … 70 °C |
| Standards | EN 50047, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508, CSA C22.2 No.14 |
| Weight | 51 g |
| HS Code | 8536.50.80 |
| Contact configuration | 1NO + 1NC, snap action |
Product Description
Built from thermoplastic polymer to the compact EN 50047 form factor, it provides 1NO+1NC contacts with an M20 bottom cable entry for quick wiring. It is the foundation component for KB, KC, KM and KN limit switches used across industrial automation and machinery guarding. The LOVATO KXCBS11 is the K-series limit switch body supplied complete with a snap-action contact block, designed to accept interchangeable K-series operating heads.
Basic Product Information
- Compact thermoplastic enclosure dimensioned to EN 50047 for space-saving panels
- M20 bottom cable entry with screw terminals for straightforward field wiring
- IP65 body protection with IP20 terminals; operating range -25 to 70 °C
- Complete body housing with integrated 1NO+1NC snap-action contact block
Technical Specifications
Version & Model Difference
The KXCBS11 is the bare body with contact block; it is paired with a separate K-series operating head (plunger, roller, lever, etc.) to form a complete limit switch for KB, KC, KM and KN families. No electronics or timing variant is included.
Application Scenarios
- Position and travel limit detection on machine tools and conveyors
- End-of-travel safety interlocks on industrial doors and guards
- Automation panels requiring compact, standardized limit switching
Frequently Asked Questions
Is the KXCBS11 a complete limit switch?
No. KXCBS11 is the switch body complete with a 1NO+1NC snap-action contact block. You must add a compatible K-series operating head (plunger, roller or lever) to build a functioning limit switch.
What cable gland size does it use?
The body has a single M20 cable entry at the bottom with self-releasing screw terminals, suitable for standard M20 industrial cable glands.
What ingress protection does it provide?
The thermoplastic body is rated IP65 against dust and water jets, while the terminals are IP20 and should be housed inside an appropriate enclosure.
Which standards does it comply with?
It conforms to EN 50047 dimensions and IEC/EN 60947-1 / IEC/EN 60947-5-1, with UL 508 and CSA C22.2 No.14 listings for North American use.
