Other Brands · PLC Module
KLY-D3-200075mV-DC-4-A220VDC

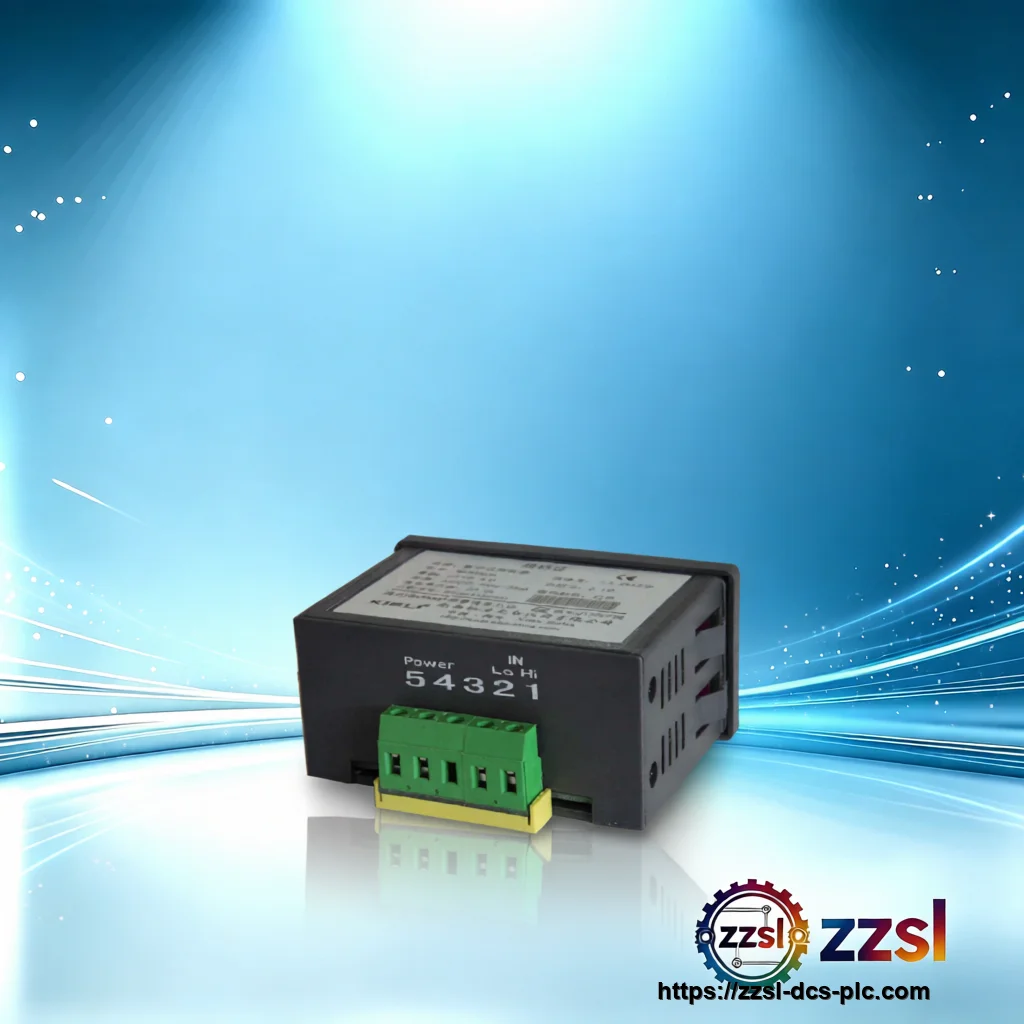

Complee Digital panel KLY-D3-±2000/±75mV-DC-4-A(220VDC)
Other Brands
Complee Digital panel KLY-D3-±2000/±75mV-DC-4-A(220VDC)
Home / Panel Meters / Complee / KLY-D3 Need Complee KLY-D3-±2000/±75mV-DC-4-A(220VDC)? Digital panel ammeter for DC current measurement. Supplied with full tra…
Specifications
| Brand | Complee (Shanghai Complee Instrument) |
|---|---|
| Model Number | KLY-D3-+/-2000/+/-75mV-DC-4-A(220VDC) |
| Official Product Name | Digital DC ammeter with 75 mV shunt input (KLY-D3) |
| Applicable System | DC current measurement |
| Product Type | Digital panel ammeter |
| Equivalent Standard | IEC 51-1 (per Complee manual) |
| Product Status | Active |
| Lifecycle note | Commercialized |
| Input | 75 mV (shunt) |
| Display digits | 4 |
| Auxiliary power | 220 V DC |
| Accuracy class | 0.5 |
| Dimensions | approx. 48 mm x 96 mm x 109.2 mm |
| Cut-out size | 92 mm x 44 mm |
| Measurement | DC current via 75 mV shunt (e.g. +/-2000 A) |
Product Description
Basic Product Information
- 220 V DC auxiliary supply
- Settable ratio for shunt scaling
- 75 mV shunt input for high DC current
Technical Specifications
Version & Model Difference
- ['KLY-D3-A = direct-input ammeter', 'KLY-D3 with 75 mV input = shunt-type ammeter', 'KLY-D3 extended adds alarm / transmit / RS485']
Application Scenarios
- DC current monitoring in rectifier systems
- Battery and charger current display
- Industrial process measurement
- Complee KLY-D3 Extended DC Ammeter (400A / 75mV, Alarm)
