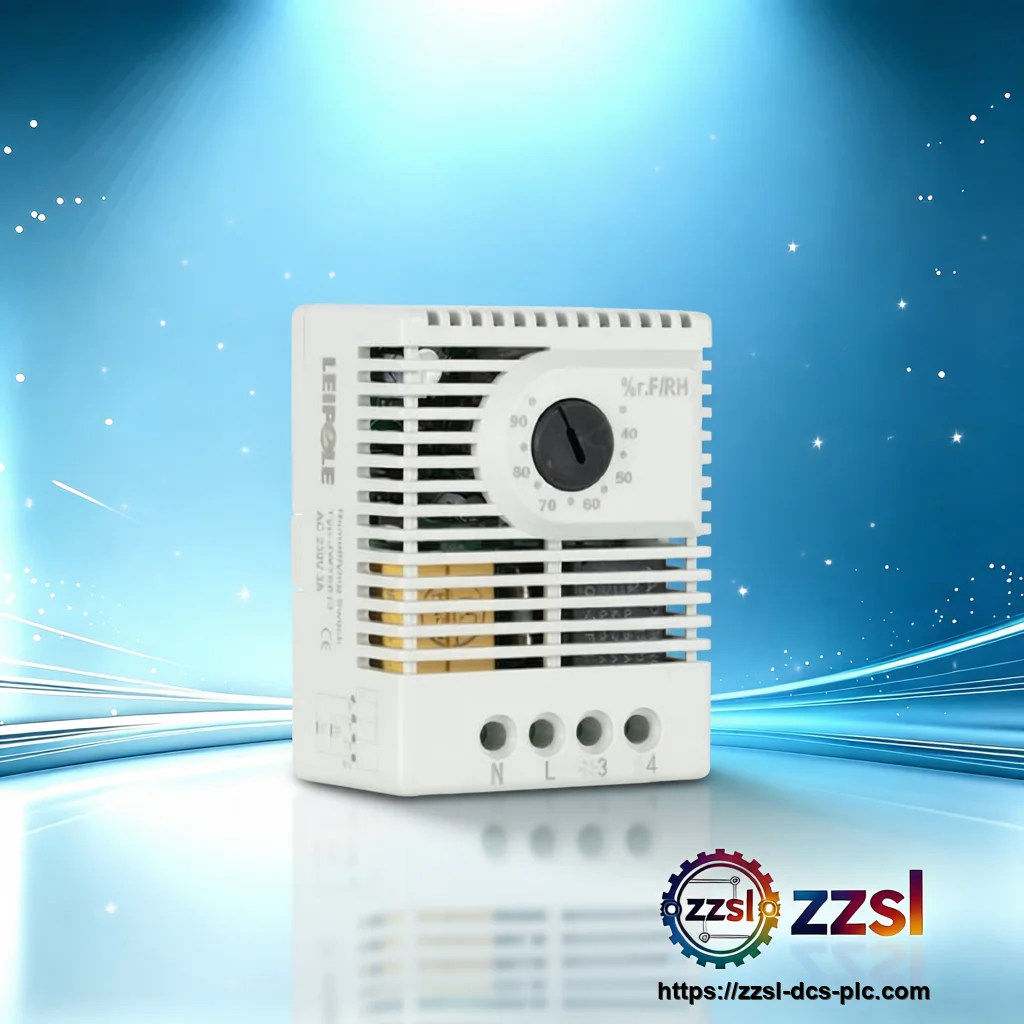

Leipole Humidity Controller JWT6013
Home > Leipole > Climate Control > JWT6013 Need Leipole JWT6013? Humidity Controller for Enclosure climate control / anti-condensation systems. Suppli…
Contact us for current availability and best price of JWT6013.
Specifications
| Brand | Leipole |
|---|---|
| Model Number | JWT6013 |
| Official Product Name | Panel Hygrostat JWT6013 (electromechanical humidity controller) |
| Applicable System | Enclosure climate control / anti-condensation systems |
| Product Type | Humidity Controller (Hygrostat) |
| Equivalent Standard | CE, RoHS |
| Product Status | In Stock |
| Switching Tolerance | 4% RH (±3%) |
| Contact Type | SPDT changeover contact |
| Maximum Switching Capacity | 250 V AC, 5(0.2) A; DC 20 W |
| Permissible Air Speed | 15 m/s |
| Electrical Connection | 3-pole terminal, 2.5 mm², 0.8 N·m |
| Installation | 35 mm DIN rail mounting |
| Housing Material | ABS, UL94 V0 |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 67 x 50 x 38 mm |
| Operating / Storage Temperature | -20 °C to +80 °C |
| Order Code | 2021.005 |
| Certification | CE, RoHS |
| Operating Humidity Range | 30-90% RH |
Product Description
When wired to an enclosure heater, it energises the heater at the humidity set point to raise the dew point and prevent condensation and corrosion of electronic components, and it can also switch cooling fans, warning lights or other devices. The contact is a changeover (SPDT) type with a maximum switching capacity of 250 V AC, 5(0.2) A / 20 W DC, and the unit clips onto a standard 35 mm DIN rail. The Leipole JWT6013 is an electromechanical panel hygrostat that regulates the relative humidity inside electrical enclosures.
Basic Product Information
- SPDT changeover contact, maximum switching capacity 250 V AC, 5(0.2) A / DC 20 W
- Switching tolerance 4% RH (±3%) with permissible air speed of 15 m/s
- 35 mm DIN rail mounting with 3-pole 2.5 mm² terminals (0.8 N·m)
- ABS housing, UL94 V0 flammability class, IP20 protection, compact 67 x 50 x 38 mm
- Adjustable relative humidity setting range of 30-90% RH
Technical Specifications
Version & Model Difference
The JWT6013 is the hygrostat (humidity) unit of the Leipole JWT601x climate-control family. The related JWT6011 / JWT6011F / JWT6011R and JWT6012 are temperature thermostats with a 0-60 °C range, not humidity controllers, so they are not direct substitutes. The JWT6013 is distinguished by its 30-90% RH sensing range and SPDT changeover contact; its order code is 2021.005. For most electronic components the critical internal humidity level is about 65% RH, above which condensation can form.
Application Scenarios
- Anti-condensation control in electrical and control cabinets
- Switching enclosure heaters or fans in humid industrial environments
- Climate control in switchgear, terminal boxes and instrument enclosures
- Leipole JWT6011R Mechanical Thermostat for Enclosures 0-60°C
- Leipole JWT6011F NO Thermostat for Enclosure Fan Control
- Leipole JRQ30 PTC Enclosure Heater 30W
- LEIPOLE FAN FKL 6626.230 Industrial Cooling Fan
- Leipole FKL6626.230 Filter Fan Unit for Electrical Enclosures
Frequently Asked Questions
What is the humidity setting range of the JWT6013?
It has an adjustable operating range of 30% to 90% relative humidity, with a switching tolerance of 4% RH (±3%).
What type of contact does it use?
A single-pole double-throw (SPDT) changeover contact rated up to 250 V AC, 5(0.2) A or 20 W DC.
How is the JWT6013 mounted?
It clips onto a standard 35 mm DIN rail and uses 3-pole 2.5 mm² screw terminals tightened to 0.8 N·m; the housing is ABS with UL94 V0 flammability rating.
Can it control a heater to prevent condensation?
Yes. When connected to an enclosure heater or dehumidifier it energises the heater at the humidity set point to keep internal humidity below the condensation threshold (about 65% RH for most components).
