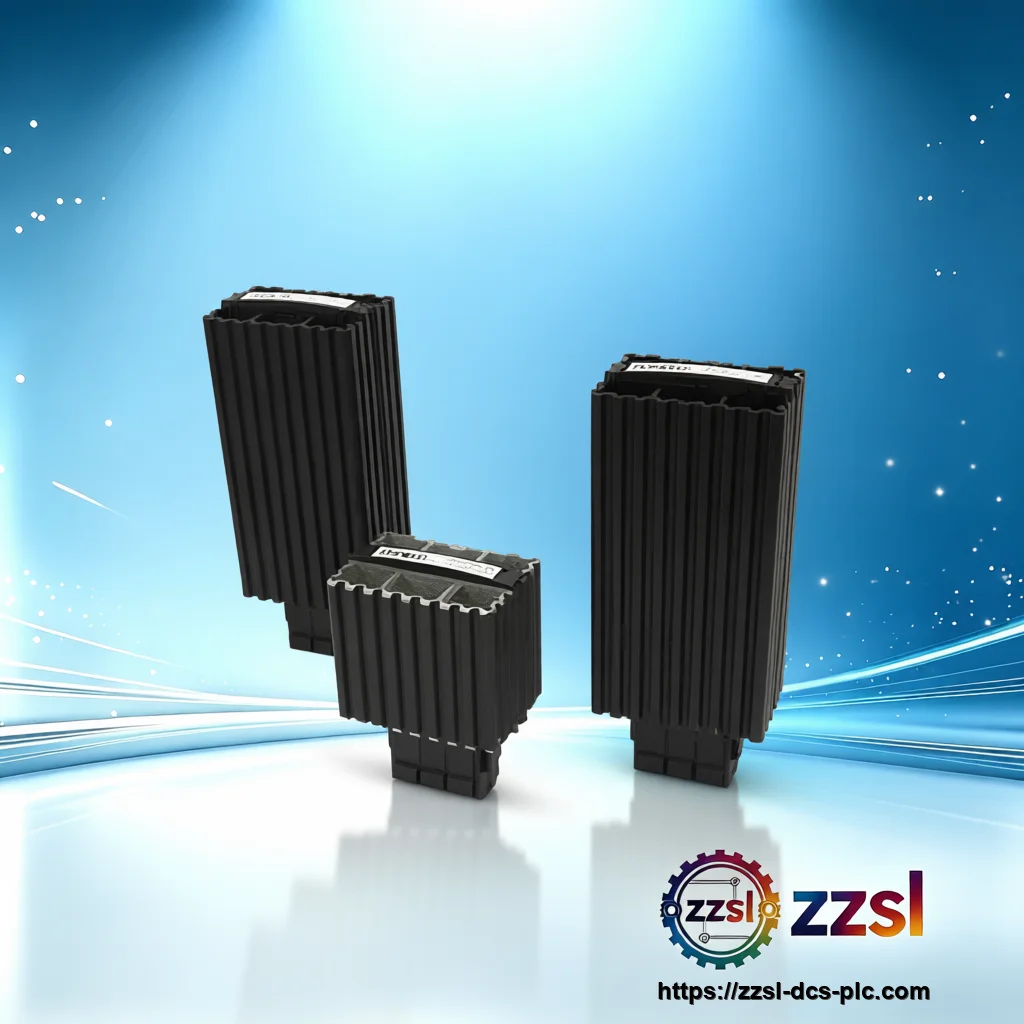

Leipole PTC panel JRQ30
Leipole JRQ30 PTC panel. For Electrical enclosures and control cabinets. Supplied with full traceability and documentation. Worldwide shipping from stock. Pric…
Contact us for current availability and best price of JRQ30-heater.
Specifications
| Brand | Leipole |
|---|---|
| Model Number | JRQ30 |
| Official Product Name | PTC Enclosure Heater 30W |
| Applicable System | Electrical enclosures and control cabinets (anti-condensation) |
| Product Type | PTC panel/enclosure heater |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Operating voltage | 110-230 VAC 50/60 Hz (also marketed as 120-250 VAC/DC) |
| Heating element | PTC, self-regulating with temperature limit |
| Surface temperature | approx. 90 degC |
| Max starting current | 2.5 A |
| Operating current | approx. 0.17 A |
| Electrical connection | 3-pole push-in terminal, 0.5-2.5 mm2, UL94V0 |
| Housing material | Aluminium profile / extruded aluminium |
| Degree of protection | IP20 |
| Installation | Vertical, 35 mm DIN rail (rail thickness 1.1 mm) |
| Operating / storage temperature | -45 degC to +70 degC |
| Dimensions (W x H x D) | 103 x 70 x 57 mm |
| Weight | approx. 0.3 kg |
| Manufacturer order no. | 2020.002 |
| Heating output (at 20 degC ambient) | 30-35 W |
Product Description
Leipole JRQ30 PTC panel. For Electrical enclosures and control cabinets. Supplied with full traceability and documentation. Worldwide shipping from stock.
Its self-regulating PTC element delivers 30-35 W of heat at 20 degC ambient and automatically limits its surface temperature to about 90 degC, so no external thermostat is required for protection. The aluminium profile body creates a chimney effect for efficient natural-convection heat distribution across the enclosure. It operates on 110-230 VAC 50/60 Hz and mounts vertically on 35 mm DIN rail, with CE and RoHS approvals. The Leipole JRQ30 is a compact PTC enclosure heater designed to prevent condensation and maintain a minimum temperature inside electrical cabinets.
Basic Product Information
- Heat output of 30-35 W at 20 degC ambient, surface temperature approx. 90 degC
- Aluminium profile body promotes a chimney effect for even heat distribution
- Wide 110-230 VAC 50/60 Hz operating voltage
- Vertical 35 mm DIN-rail mounting with 3 push-in terminals (0.5-2.5 mm2)
- Self-regulating PTC heating element with built-in temperature limiting (no external thermostat needed)
Technical Specifications
Version & Model Difference
The JRQ30 is the 30-35 W model in the Leipole JRQ15-JRQ150 PTC heater family (order no. 2020.002). Larger models JRQ45/JRQ60/JRQ75/JRQ100/JRQ150 provide 45 W to 160 W for bigger cabinets; select the model by enclosure volume and required temperature rise. It is often paired with a JWT6011 series thermostat.
Application Scenarios
- Anti-condensation heating in electrical and control cabinets
- Maintaining minimum temperature in outdoor or unheated enclosures
- Humidity protection for instrumentation and switchgear enclosures
No. Its PTC element self-regulates and limits surface temperature to about 90 degC, so it runs safely without an external controller; a thermostat such as the JWT6011R can still be added to fine-tune cabinet temperature.
- Leipole JWT6011R Mechanical Thermostat for Enclosures 0-60°C
- Leipole JWT6011F NO Thermostat for Enclosure Fan Control
- LEIPOLE FAN FKL 6626.230 Industrial Cooling Fan
- Leipole FKL6626.230 Filter Fan Unit for Electrical Enclosures
Frequently Asked Questions
Does the JRQ30 need a separate thermostat?
No. Its PTC element self-regulates and limits surface temperature to about 90 degC, so it runs safely without an external controller; a thermostat such as the JWT6011R can still be added to fine-tune cabinet temperature.
What is the heat output of the JRQ30?
It delivers 30-35 W at 20 degC ambient, suitable for small to medium enclosures; choose a larger JRQ model for higher heating demand.
What voltage does the JRQ30 use?
It operates on 110-230 VAC 50/60 Hz (some distributors market it as 120-250 VAC/DC); confirm your supply voltage before ordering.
How should the JRQ30 be mounted?
Mount it vertically on 35 mm DIN rail with the terminals accessible; vertical orientation ensures the chimney-effect airflow works as designed.
