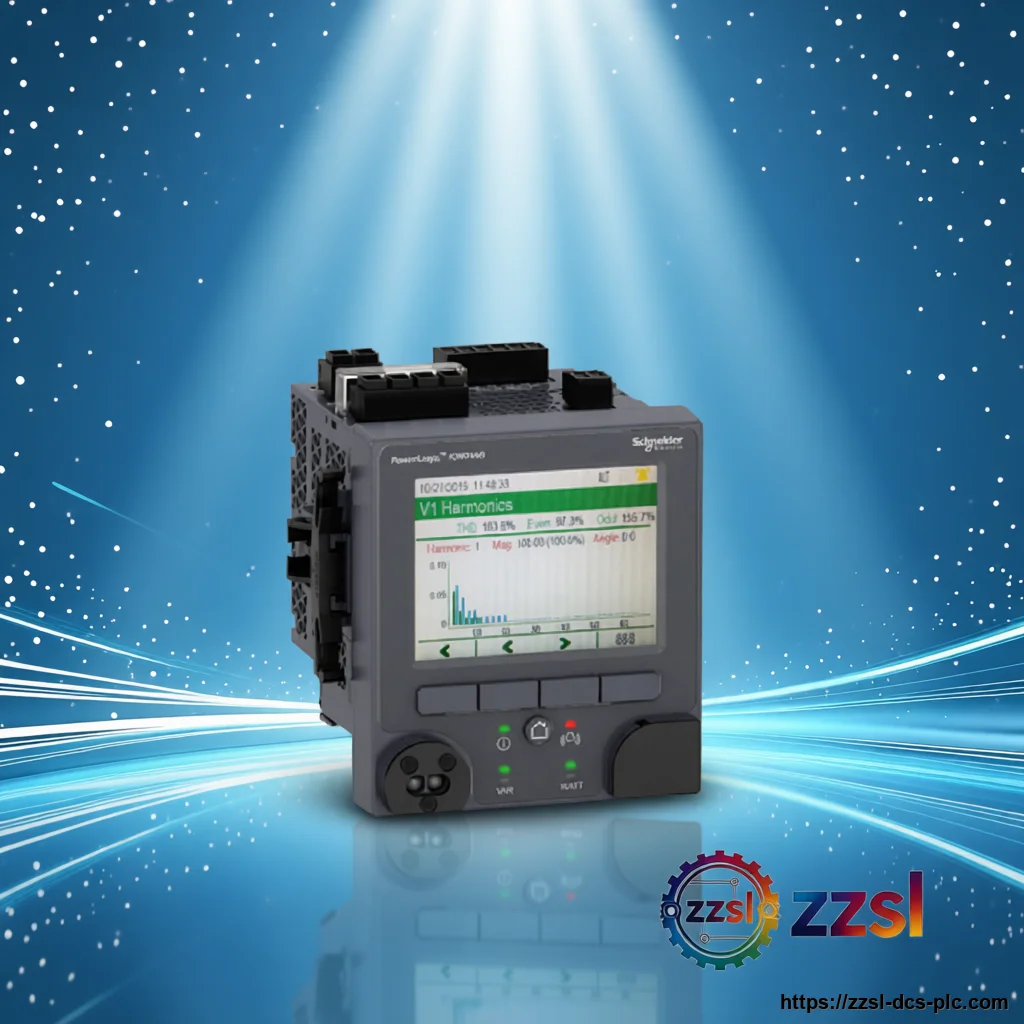

Schneider+PowerLogic Power Quality Meter ION7400

ION7400-powerlogic

Other Brands Other Brands

Schneider+PowerLogic Power Quality Meter ION7400

Home > Schneider Electric > Power Meters > ION7400 Need Schneider+PowerLogic ION7400? Power Quality Meter for Utility feeder metering, power monitorin…

$2,607.95
Availability on request

Market reference price (web) | GBP 2053.50 -> USD /1.12 | https://www.cjsautomation.com/parts/schneider/part/metseion7400a

Specifications

BrandSchneider Electric (PowerLogic)
Model NumberION7400
Official Product NamePowerLogic ION7400
Applicable SystemUtility feeder metering, power monitoring, SCADA, substation billing
Product TypePower Quality Meter
Equivalent StandardContact us for cross-reference and alternative models
Product StatusIn Stock
Network Frequency50/60 Hz (42-69 Hz)
Rated Current1 A / 5 A / 10 A (autoranging)
Active Energy AccuracyClass 0.2S (IEC 62053-22)
Voltage/Current Accuracy+/-0.1%
Power Quality StandardIEC 61000-4-30 Class S, EN 50160, IEEE 519
CommunicationModbus RTU, ION, DNP3, IEC 61850, Modbus TCP/IP
Memory512 MB
Sampling Rate256 samples/cycle
MountingPanel (1/4 DIN) or DIN rail
Operating Temperature-25 to +70 C
Harmonic Analysisup to 63rd (front panel/web), 127 via software
Supply Voltage90-415 V AC / 110-415 V DC

Product Description

Designed as a utility feeder meter, it fits panel or DIN-rail mounting and integrates with EcoStruxure Power Monitoring Expert or existing SCADA via Modbus, ION, DNP3 and IEC 61850. Its 512 MB memory, 256 samples/cycle sampling and PQ compliance to IEC 61000-4-30 Class S make it suitable for billing, network management and power-quality analysis. The Schneider Electric PowerLogic ION7400 is a compact 3-phase multifunction meter that combines revenue-grade energy measurement (Class 0.2S) with power-quality monitoring and onboard data logging.

Basic Product Information

  • Power-quality analysis to IEC 61000-4-30 Class S, EN 50160 and IEEE 519 with harmonics to 63rd
  • Dual Ethernet plus RS-485 with Modbus, ION, DNP3, IEC 61850 and Modbus TCP/IP protocols
  • 512 MB memory, 256 samples/cycle, event/alarm logging, waveform capture and email alarms
  • Revenue-grade accuracy: Class 0.2S active energy (IEC 62053-22), +/-0.1% voltage/current

Technical Specifications

Version & Model Difference

The ION7400 is offered in Essential, Standard and Advanced versions (catalog METSEION7400 / METSEION7400E / METSEION7400A) plus a low-voltage 20-60 V DC control-power variant and DIN-rail (METSEION7403/7404) and panel-mount (METSEION7410) styles. Verify the exact catalog suffix for display, communication and control-power options.

Application Scenarios

  • Utility feeder and revenue billing metering
  • Substation and switchgear power-quality monitoring
  • Industrial plant energy cost allocation and SCADA integration
  • Renewable and commercial building power management

Frequently Asked Questions

What accuracy class does the ION7400 provide?

It delivers Class 0.2S active energy accuracy per IEC 62053-22 with +/-0.1% voltage and current measurement, suitable for revenue billing.

Which communication protocols are supported?

Dual Ethernet and RS-485 support Modbus RTU/TCP, ION, DNP3 and IEC 61850, enabling integration with SCADA and power-monitoring software.

Does it perform power-quality analysis?

Yes, it complies with IEC 61000-4-30 Class S, EN 50160 and IEEE 519, with harmonic analysis to the 63rd (127th via software) and waveform capture.

How is it mounted and powered?

It mounts on a panel (1/4 DIN) or DIN rail and runs on 90-415 V AC or 110-415 V DC control power, with a low-voltage 20-60 V DC option available.
