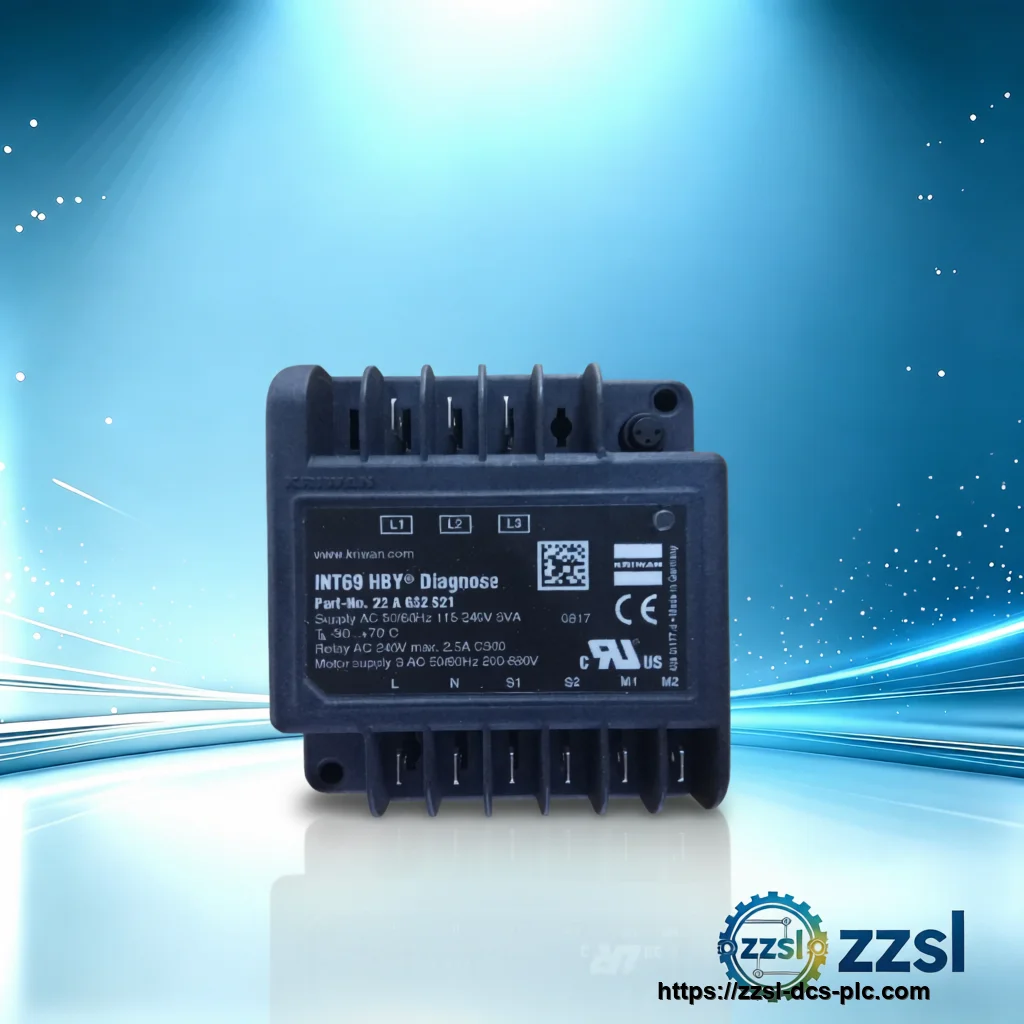

Riwan Motor INT69 HBY Diagnose
Other Brands
Riwan Motor INT69 HBY Diagnose
Home / Motor Protection / Compressor Protection Modules / KRIWAN INT69 HBY Diagnose Need Riwan INT69 HBY Diagnose? Motor for Refrigeration compressors. Supplie…
Specifications
| Brand | KRIWAN (listed in queue as Riwan / K RIWAN) |
|---|---|
| Model Number | INT69 HBY Diagnose (Part No. 22 A 632 S21) |
| Official Product Name | KRIWAN INT69 HBY Diagnose Motor Protection Relay |
| Applicable System | Refrigeration compressors (screw, scroll, reciprocating) |
| Product Type | Motor / compressor protection module |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Contact for availability |
| Lifecycle note | Contact supplier for stock and lead time |
| Supply voltage | AC 115-240 V, 50/60 Hz |
| Power consumption | 3 VA |
| Relay contacts | 240 V AC max, 2.5 A, C300 |
| Phase sensor | 3 AC, 50/60 Hz, 200-690 V |
| Ambient temperature | -30 to +70 deg C |
| Protection class | IP00 |
| Application | Refrigeration compressor protection |
| Country of origin | Germany |
| Material | Contact supplier for exact specifications |
| Part number | 22 A 632 S21 |
Product Description
Basic Product Information
- Monitors motor coil and discharge temperature via PTC thermistors (up to 9 in series)
- Built-in flash-code diagnostics and event data logging
- Supply 115-240 V AC, 50/60 Hz; relay output 240 V AC max, 2.5 A, C300
- Designed for mounting inside the compressor electrical terminal box
- Monitors phase loss, phase sequence and phase asymmetry with auto lockout
Technical Specifications
Version & Model Difference
The INT69 family includes INT69, INT69Y, INT69HBY and the newer INT69 Diagnose series. The HBY Diagnose variant adds flash-code diagnostics and data logging over the base INT69HBY. Contact supplier to confirm compatibility with your compressor and sensor set.
Application Scenarios
- Refrigeration and air-conditioning compressor protection
- Screw and scroll compressor motor temperature monitoring
- Phase-failure and phase-sequence protection in 3-phase motors
