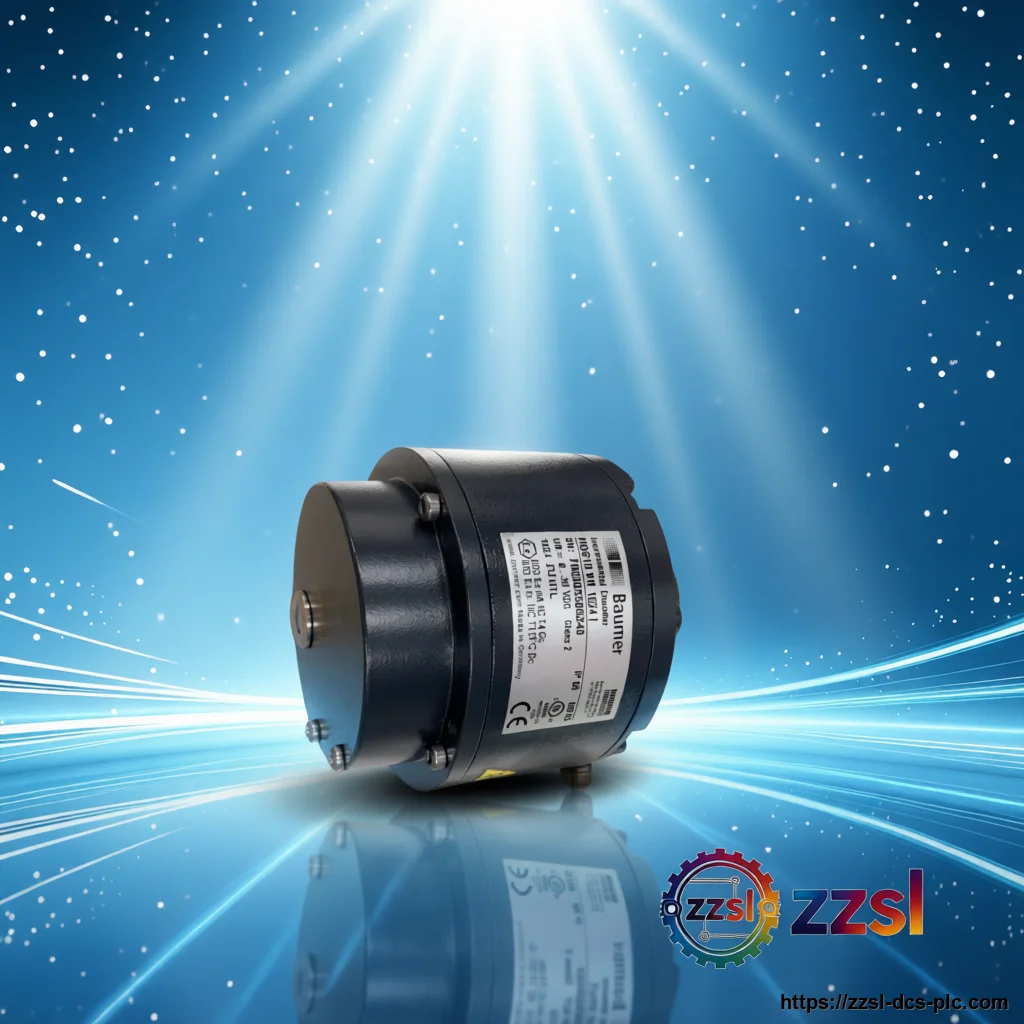

Baumer Incremental rotary encoder HOG10DN1024I
Home > Products > Baumer > Rotary Encoder Baumer HOG10DN1024I Incremental rotary encoder. For Rotary speed and position feedback in drives and machine…
Specifications
| Brand | Baumer (HUBnER BERLIN) |
|---|---|
| Model Number | HOG10DN1024I |
| Official Product Name | HOG 10 Heavy-Duty Incremental Encoder |
| Applicable System | Rotary speed and position feedback in drives and machines |
| Product Type | Incremental rotary encoder |
| Equivalent Standard | N/A |
| Product Status | Active |
| Supply Voltage | 9 to 30 VDC |
| Output Stage | HTL-P (power line driver) |
| Flange Size | 105 mm |
| Shaft Type | Cone shaft 17 mm (1:10) or hollow shaft |
| Protection | IP 66 |
| Max Operating Speed | 6000 rpm (mechanical) |
| Weight | Approx. 1.6 kg |
| Pulses per Revolution | 1024 |
Product Description
Built in an IP66 die-cast aluminium housing with a 105 mm flange, it is designed for severe industrial environments. Note: often mislabeled as Siemens; the manufacturer is Baumer (HUBnER BERLIN). The HOG10 DN 1024 I is a Baumer heavy-duty incremental rotary encoder with 1024 pulses per revolution, optical sensing and an HTL power line driver.
Basic Product Information
- HTL-P power line driver supporting long cable runs (up to 350 m)
- Very high shock and vibration resistance
- Double-sided hybrid bearing for extended service life
- IP66 die-cast aluminium housing, -40 to +100 deg C operation
- 1024 pulses per revolution, optical sensing
Technical Specifications
Version & Model Difference
The HOG10 base model is offered with various shaft and option configurations (e.g. LR/ SR terminal box orientation, FSL centrifugal switch, ESL electronic speed switch, -I inverted output). The DN1024I denotes 1024 PPR with the standard encoder output.
Application Scenarios
- Speed and position feedback for heavy drives
- Cranes, winches and material handling equipment
- Steel, paper and mining machinery
- Harsh environments requiring shock/vibration resistance
- Baumer 11236758 Industrial Automation Component
- Baumer HOG10 Heavy-Duty Incremental Encoder
Frequently Asked Questions
Who makes the HOG10DN1024I?
It is a Baumer (HUBnER BERLIN) heavy-duty encoder; it is frequently mislabeled as Siemens.
What is the pulse count?
It provides 1024 pulses per revolution with an HTL power line driver output.
What is the protection rating?
The housing is rated IP 66 with an operating temperature range of -40 to +100 deg C.
What supply voltage does it need?
The encoder operates from 9 to 30 VDC and draws <=100 mA unloaded.
