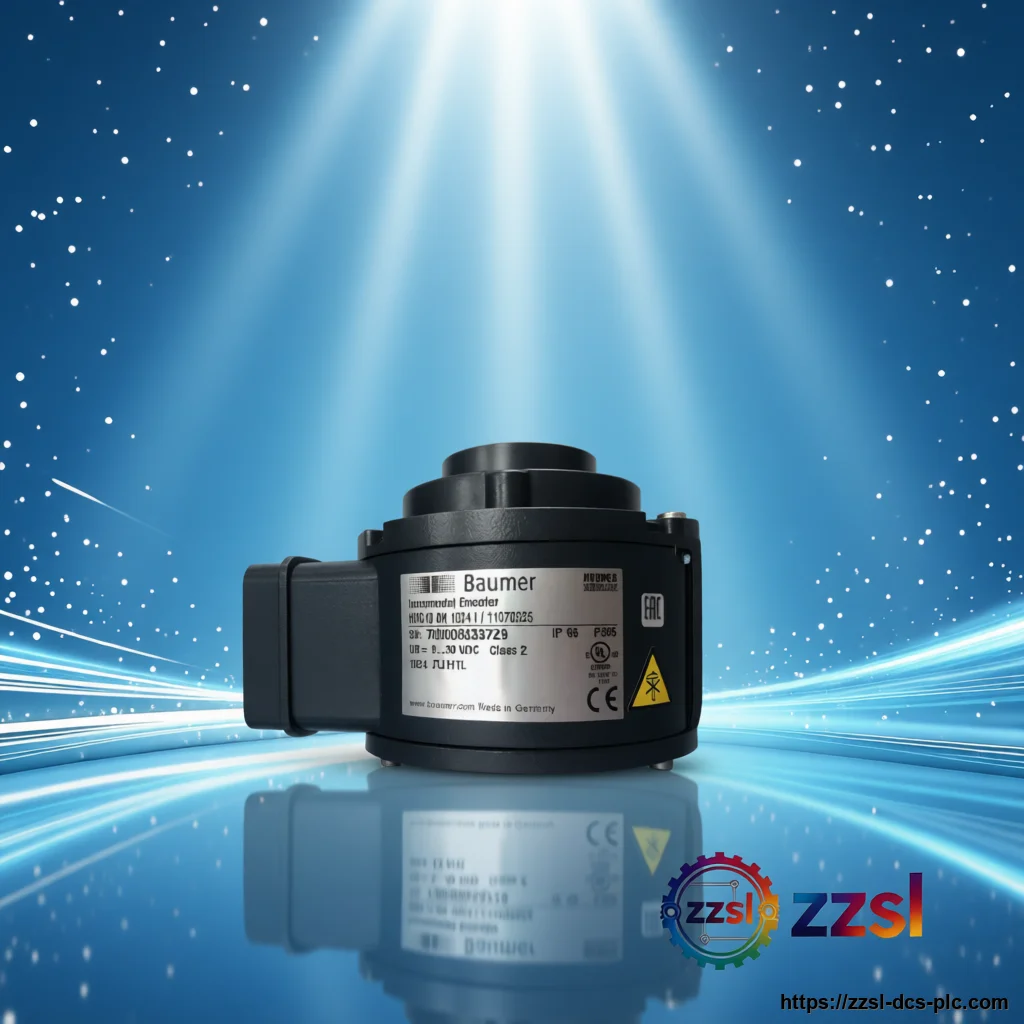

Baumer Incremental rotary encoder HOG10
Home > Products > Baumer > Rotary Encoder Baumer HOG10 Incremental rotary encoder. For Rotary speed and position feedback in heavy industry. Supplied …
Contact us for current availability and best price of HOG10-encoder.
Specifications
| Brand | Baumer (HUBnER BERLIN) |
|---|---|
| Model Number | HOG10 |
| Official Product Name | HOG 10 Heavy-Duty Incremental Encoder |
| Applicable System | Rotary speed and position feedback in heavy industry |
| Product Type | Incremental rotary encoder |
| Equivalent Standard | N/A |
| Product Status | Active |
| Supply Voltage | 9 to 30 VDC, 5 VDC +/-5% |
| Output Signals | K1, K2, K0 + inverted (HTL-P / TTL) |
| Flange Size | 105 mm |
| Protection | IP 66 |
| Max Operating Speed | 6000 rpm (mechanical) |
| Weight | Approx. 1.6 kg (1.8 kg with option M) |
| Pulses per Revolution | 300 to 5000 (model dependent) |
Product Description
Baumer HOG10 Incremental rotary encoder. For Rotary speed and position feedback in heavy industry. Supplied with full traceability and documentation.
Designed for severe industrial use. Note: commonly listed under Siemens; the manufacturer is Baumer (HUBnER BERLIN). The Baumer HOG 10 is a family of heavy-duty incremental rotary encoders with blind hollow shaft or cone shaft, optical sensing, 300 to 5000 pulses per revolution and an IP66 die-cast aluminium housing.
Basic Product Information
- Blind hollow shaft or cone shaft (17 mm, 1:10)
- HTL and TTL/RS422 line driver outputs
- High resistance to shock and vibration
- IP66 die-cast aluminium housing, -40 to +100 deg C
- 300 to 5000 pulses per revolution, optical sensing
Technical Specifications
Version & Model Difference
The HOG10 base can be combined with centrifugal switch (FSL), electronic speed switch (ESL) or heating options. Specific pulse counts and shaft type (e.g. HOG10DN1024I) are defined by the full suffix; confirm the exact order code when replacing.
Application Scenarios
- Heavy drives and winches speed feedback
- Cranes, steel and mining machinery
- Rolling mills and large conveyor systems
- Harsh environments requiring robust encoders
- Baumer 11236758 Industrial Automation Component
- Baumer HOG10DN1024I Heavy-Duty Incremental Encoder
Frequently Asked Questions
Who manufactures the HOG10?
The HOG10 is a Baumer (HUBnER BERLIN) encoder; it is often mislabeled as Siemens.
What pulse resolutions are available?
The HOG10 family supports 300 to 5000 pulses per revolution, depending on the specific order code.
What outputs are provided?
Standard outputs are K1, K2 and zero pulse K0 with inverted signals, available as HTL-P or TTL/RS422.
What is the operating temperature?
It operates from -40 to +100 deg C in an IP66 die-cast aluminium housing.
