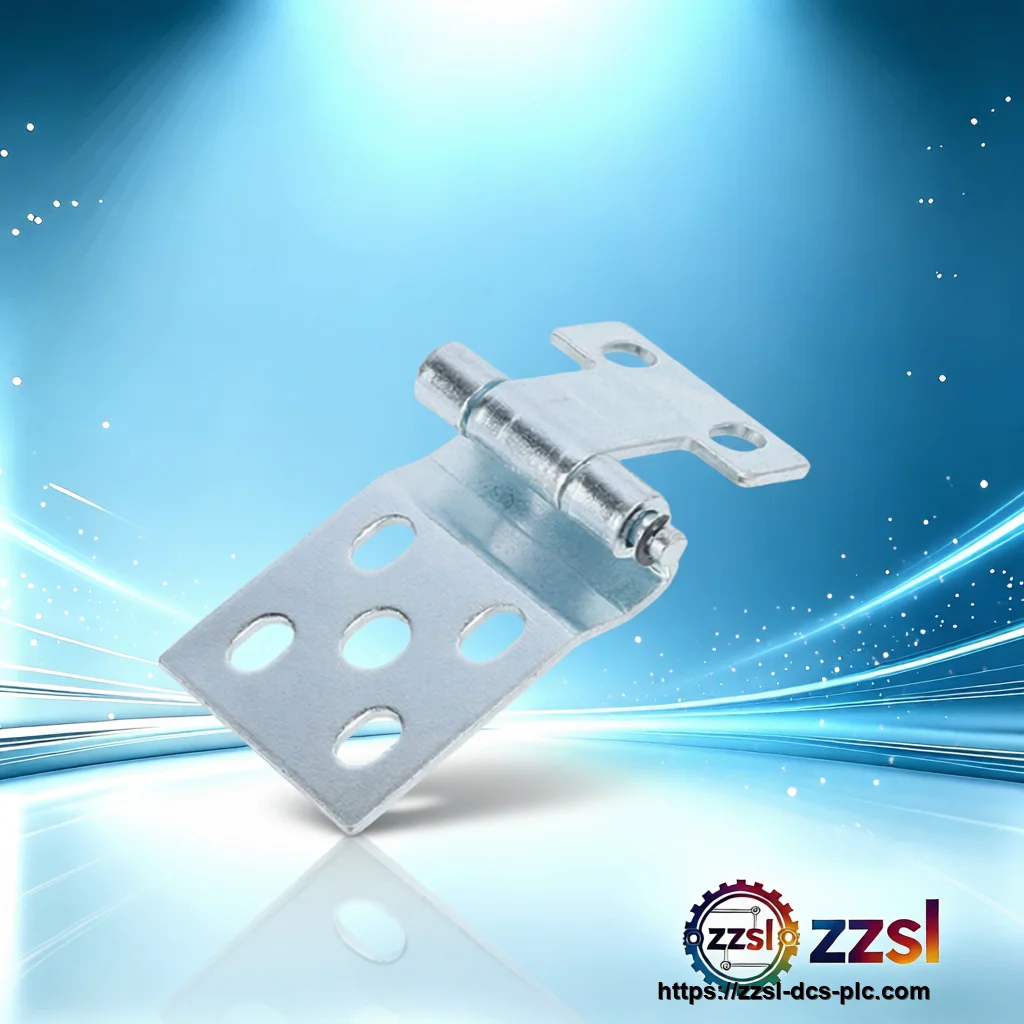

East Electric Accessory HANL100 001R2
Other Brands
East Electric Accessory HANL100 001R2
Home > Products > LV Panel Accessories > Drawer Hinge > East Electric HANL100 001R2 Need East Electric HANL100 001R2? Accessory for Low Voltage Pan…
Specifications
| Brand | East Electric |
|---|---|
| Model Number | HANL100 001R2 |
| Official Product Name | Drawer Hinge for LV Panels |
| Applicable System | Low Voltage (LV) Panels, Switchgear |
| Product Type | Accessory (Hinge) |
| Equivalent Standard | HANL100 001R1 (if applicable) |
| Product Status | Active |
| Lifecycle note | Active, In Stock |
| Finish | Zinc-plated |
| Dimensions (W x H x D) | Contact us for details |
| Mounting Type | Screw-on |
| Weight | Contact us for details |
| Compatible Panel Depth | Contact us for details |
| Operating Temperature | Contact us for details |
| IP Rating | Contact us for details |
| Standards | IEC 61439 |
| Material | Contact us for details |
Product Description
Basic Product Information
- Constructed from high-grade steel for durability and corrosion resistance
- Smooth pivot action ensures reliable door operation
- Easy to install with standard tools, minimal downtime
- Meets original specifications for safety and performance
- Precision-engineered for exact fit on East Electric LV panels
Technical Specifications
Version & Model Difference
The HANL100 001R2 is the latest revision of the drawer hinge, designed to replace the earlier R1 version. The R2 version features an improved pivot mechanism for enhanced durability and smoother operation. It is fully backward compatible with panels that used the R1 version. For regional variants, please verify compatibility with your panel model.
Application Scenarios
- Replacement of worn or broken hinges in LV switchgear panels
- Maintenance and repair of electrical distribution boards
- Upgrading existing panel doors for improved operation
- Spare parts for panel builders and system integrators
- East Electric GLBS 300 530P1 8E-24E Drawer Backboards
- East Electric GLBS 200 523R2 (32A x 3) 8E/2 Plug-in Backboards
- East Electric GLBS 200 523R5 (63A x 3) 8E/2 Plug-in Backboards
- East Electric SY J-6-32.3 Connector with Lead (324)
- East Electric SY 1-6-32.5 Connector with Lead (324)
- East Electric SY J-16-63.3 Connector with Lead (63A)
- East Electric (HANL 100 019R1)+(MNS-3-027P1) Small Interlock with Pedestals
- East Electric HANL 200 003P1 Instrument Board (Front Plate) for Withdrawable Circuit Breaker Unit Type 8E-24E
