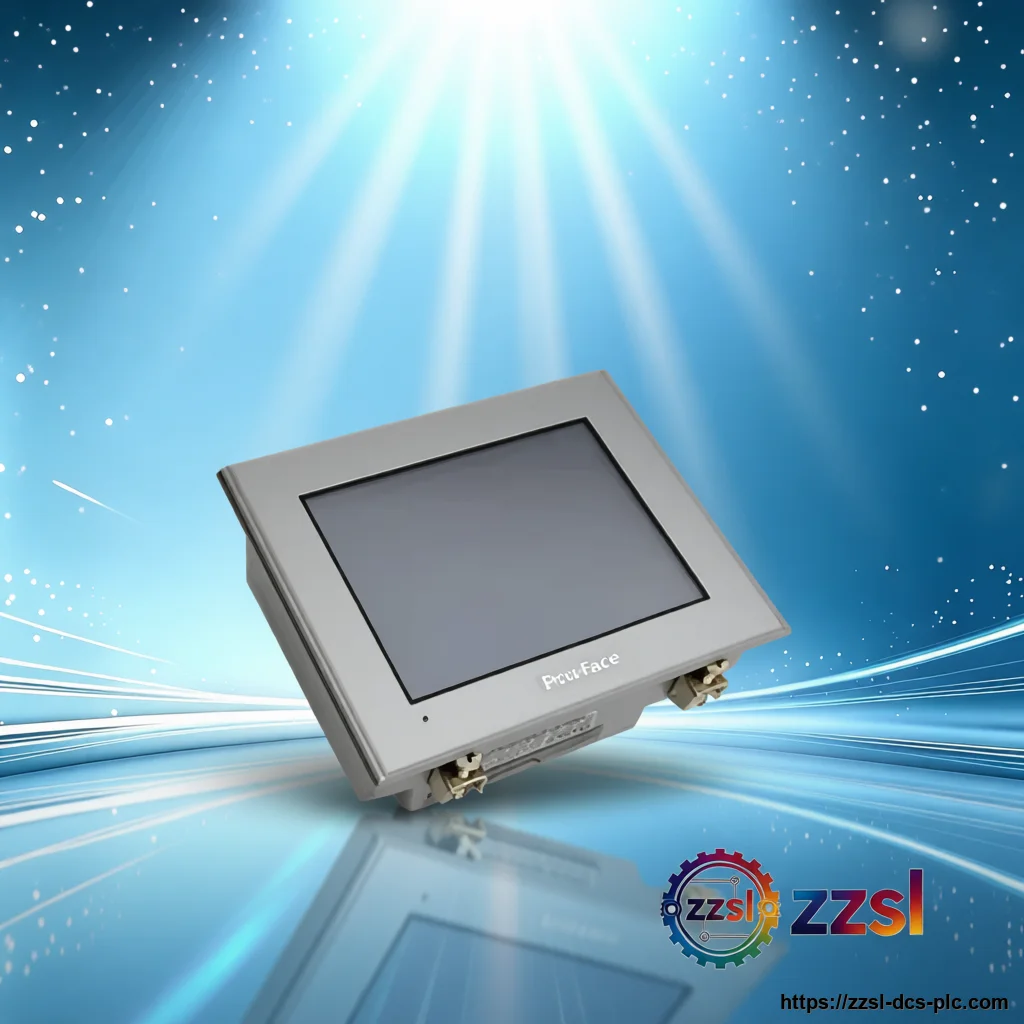

Pro-face Human Machine Interface touch panel GP2301-SC41-24V
Home > Products > Pro-face > HMI Operator Interface Pro-face GP2301-SC41-24V Human Machine Interface touch panel. For Industrial machine visualization…
Contact us for current availability and best price of GP2301-SC41-24V.
Specifications
| Brand | Pro-face (Schneider Electric) |
|---|---|
| Model Number | GP2301-SC41-24V |
| Official Product Name | GP2301-SC41-24V 5.7 inch STN Color LCD Operator Interface |
| Applicable System | Industrial machine visualization and control |
| Product Type | Human Machine Interface (HMI) touch panel |
| Equivalent Standard | N/A |
| Product Status | End of sale (2013/9/30); recommended substitute GP4301TW |
| Resolution | 320 x 240 pixels (QVGA) |
| Application Memory | 1 MB Flash EPROM |
| Data Backup Memory | 128 KB SRAM (lithium battery) |
| Rated Voltage | DC 19.2 to 28.8 V |
| Power Consumption | 22 W or less |
| External Dimensions | 171 x 138 x 60 mm |
| Weight | Approx. 1.2 kg or less |
| Display Type | STN Color LCD, 5.7 inch |
Product Description
It is an end-of-sale operator interface commonly used for machine visualization and control. The Pro-face GP2301-SC41-24V is a 5.7-inch STN color LCD touch panel HMI from the GP2000 series, with 320 x 240 resolution, 1 MB application memory and 24V DC power.
Basic Product Information
- 1 MB Flash EPROM application memory, 128 KB SRAM backup
- 24V DC power supply (19.2 to 28.8V DC)
- RS-232C / RS-422 serial communication and CF card slot
- Supports multiple languages including Chinese and Japanese fonts
- 5.7 inch STN color LCD touch panel, 320 x 240 (QVGA)
Technical Specifications
Version & Model Difference
The GP2301-SC41-24V (PFXGP2301SD) is the STN color variant of the GP2301 family; sibling models include the TFT color GP2301-TC41-24V and monochrome GP2301-LG41-24V. Recommended replacement is the GP4301TW.
Application Scenarios
- Machine operator visualization and control
- Process monitoring and data display
- Replacement HMI for legacy GP2000 installations
- Factory automation panels
Frequently Asked Questions
What display does the GP2301-SC41-24V have?
It has a 5.7-inch STN color LCD with 320 x 240 (QVGA) resolution and analog resistive touch.
What power supply is required?
It operates on 24V DC (19.2 to 28.8V DC) with power consumption of 22 W or less.
Is this model still sold?
It reached end of sale on 2013/9/30; the recommended substitute is the GP4301TW.
What communication ports are available?
It provides RS-232C / RS-422 serial interfaces and a CompactFlash card slot.
