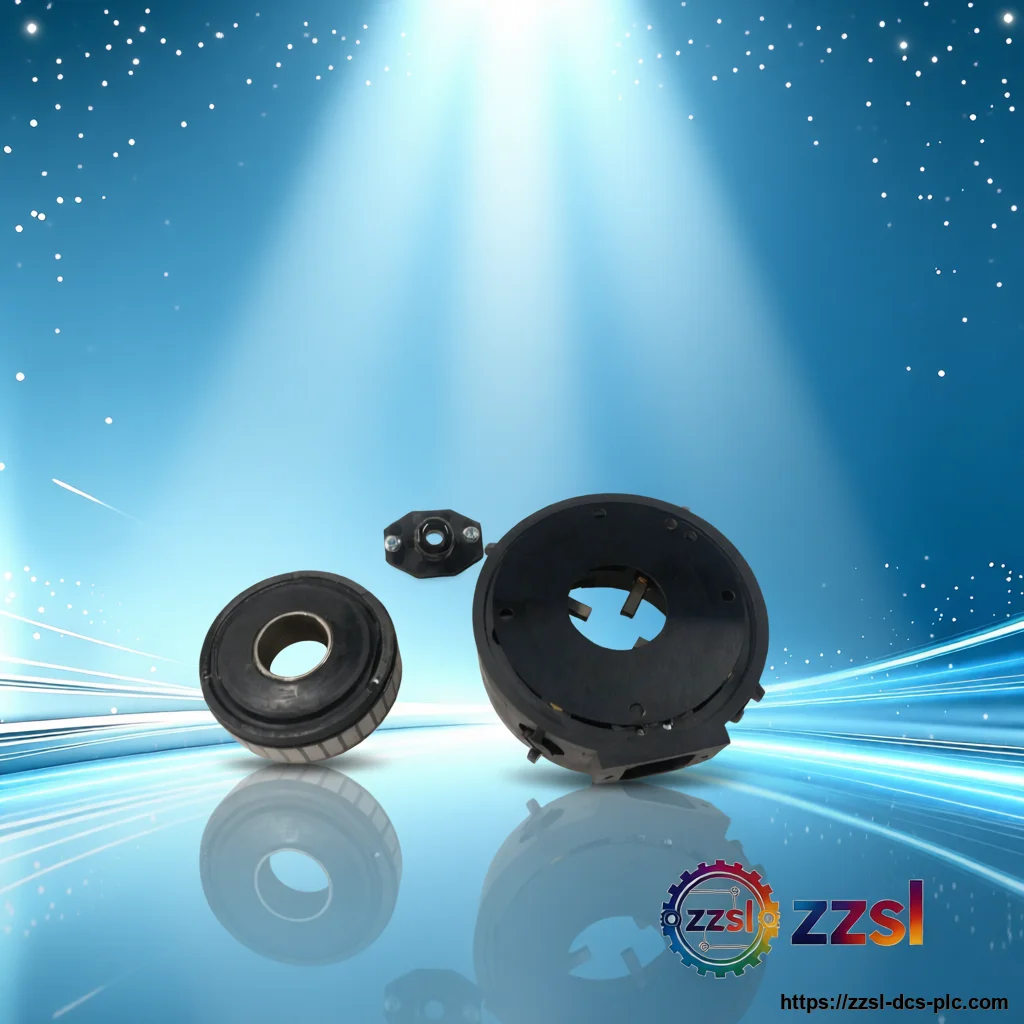

Baumüller Tachogenerator GHTS 46
Home > Baumüller > Tachogenerators > GHTS 46 Need Baumüller GHTS 46? Tachogenerator for KBA Printing Press Drives. Supplied with full traceability and…
Contact us for current availability and best price of GHTS-46-ghts.
Specifications
| Brand | Baumüller |
|---|---|
| Model Number | GHTS 46 |
| Official Product Name | GHTS 46 Speed Measuring Motor (Tachogenerator) |
| Applicable System | KBA Printing Press Drives |
| Product Type | Tachogenerator / Speed Measuring Motor |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Rated voltage | 60 V |
| Nominal speed | 1000 rpm |
| Maximum speed | 4000 rpm |
| Bore (inner diameter) | 22 mm |
| Designation size | 46 (model designation) |
| Origin | Germany |
| Typical application | KBA printing press main drive feedback |
| Rated current | 10 mA |
Product Description
It delivers a stable speed-proportional signal at its rated 60 V / 10 mA and 1000 rpm, supporting reliable speed regulation and closed-loop motor control in demanding production environments. Compact and robust, it is a direct-replacement spare for legacy Baumüller drive systems. The Baumüller GHTS 46 is a tachogenerator (speed measuring motor) used as a precision rotational-speed feedback device on printing press drives, most commonly on KBA presses.
Basic Product Information
- Rated 60 V / 10 mA output at 1000 rpm for stable tacho signal
- Compact 22 mm bore design suited to press drive shafts
- Built for continuous operation up to 4000 rpm maximum
- Direct spare for Baumüller drive systems on KBA printing machines
- Provides precise rotational-speed feedback for motor control and regulation
Technical Specifications
Version & Model Difference
The GHTS 46 is a tachogenerator rather than a servo motor; it is the speed-feedback companion to Baumüller main drives on KBA presses. Sub-family variants share the 22 mm bore but differ in voltage/current rating, so match the exact GHTS 46 plate data when replacing.
Application Scenarios
- KBA printing press main-drive speed feedback and regulation
- Web and sheet-fed printing machine closed-loop control
- Legacy Baumüller drive system maintenance and retrofit
- Industrial motor speed monitoring and tachometry
Frequently Asked Questions
What is the Baumüller GHTS 46?
It is a tachogenerator (speed measuring motor) that produces a speed-proportional electrical signal, used for feedback and speed regulation on printing-press drive systems.
What are its rated electrical values?
The GHTS 46 is rated at 60 V and 10 mA at a nominal 1000 rpm, with a maximum speed of 4000 rpm and a 22 mm shaft bore.
Which machines use the GHTS 46?
It is most commonly fitted to KBA printing presses as a drive-feedback spare within Baumüller main-drive and servo systems.
Is the GHTS 46 a servo motor?
No. It is a tachogenerator that measures speed; it works alongside the main servo or DC drive rather than acting as the power motor itself.
