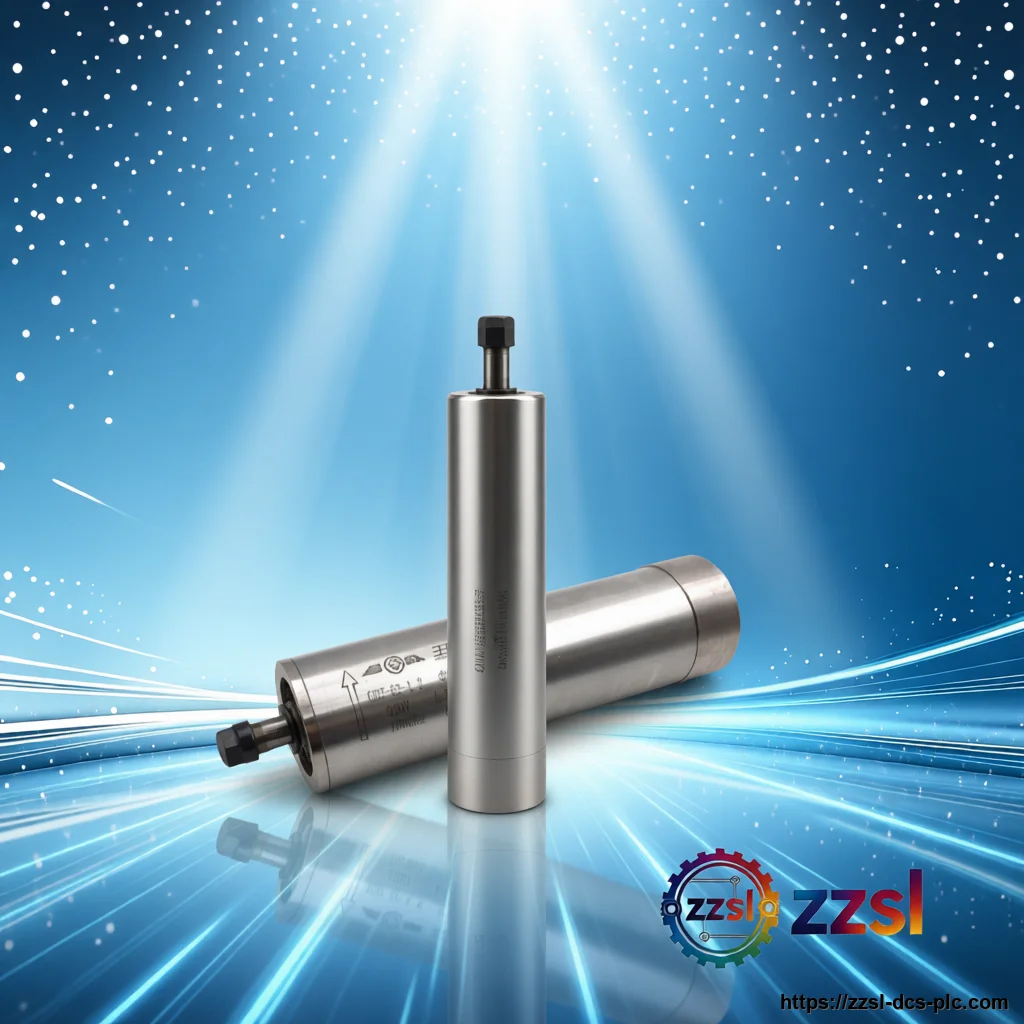

GDZ-62-12
Home > Products > GDZ > Spindle Motors Need GDZ GDZ 62 1.2? Spindle Motor for CNC Engraving, Milling, Drilling Machines. Supplied with full traceabili…
Contact us for current availability and best price of GDZ-62-12.
Specifications
| Brand | GDZ |
|---|---|
| Model Number | GDZ 62 1.2 |
| Official Product Name | High Frequency Air-Cooled Spindle Motor |
| Applicable System | CNC Engraving, Milling, Drilling Machines |
| Product Type | Spindle Motor |
| Equivalent Standard | ISO 9001, CE |
| Product Status | In Stock |
| Voltage | 220V (3-phase) or 380V (optional) |
| Frequency | 400 Hz |
| Maximum Speed | 24,000 RPM |
| Collet Type | ER11 |
| Tool Shank Diameter | 1mm - 7mm |
| Housing Diameter | 62mm |
| Length | Approx. 195mm (without collet) |
| Cooling Method | Air-cooled (forced air) |
| Bearings | High-precision ceramic or steel (depending on version) |
| Runout | ≤0.01mm |
| Weight | Approx. 3.5 kg |
| Power | 1.2 kW (1.6 HP) |
Product Description
With a power rating of 1.2 kW and a maximum speed of 24,000 RPM, this spindle delivers excellent cutting performance for non-ferrous metals, wood, plastics, and composites. Its compact 62mm diameter housing allows for easy integration into small-format CNC machines and robotic cells. Equipped with an ER11 collet chuck, the GDZ 62 1.2 accommodates tool shanks from 1mm to 7mm, providing flexibility for various tooling. The spindle is engineered with precision bearings that ensure low runout (typically less than 0.01mm) and high rigidity, resulting in superior surface finish and extended tool life. The air-cooling system efficiently dissipates heat, enabling continuous operation at high speeds without thermal deformation. This spindle motor is compatible with standard VFD (Variable Frequency Drive) inverters, typically operating at 400Hz for 24,000 RPM. It is widely used in CNC routers, engraving machines, and automated production lines. The GDZ 62 1.2 is a reliable and cost-effective solution for workshops and industrial environments seeking high-speed machining capabilities. The GDZ 62 1.2 is a high-frequency air-cooled spindle motor designed for precision CNC engraving, milling, and drilling applications.
Basic Product Information
- Maximum speed of 24,000 RPM (400Hz)
- ER11 collet chuck for tool diameters up to 7mm
- Air-cooled design for continuous operation
- Precision bearings with low runout (<0.01mm)
- Compact 62mm diameter for easy mounting
- 1.2 kW high-frequency motor for efficient cutting
Technical Specifications
Version & Model Difference
The GDZ 62 1.2 may come in different voltage configurations (220V or 380V) and with different bearing types (steel or ceramic). Ceramic bearings offer higher speed capability and longer life but at a higher cost. Some versions include a built-in cooling fan, while others require external air supply. Always verify the exact specifications with the supplier to ensure compatibility with your VFD and machine.
Application Scenarios
- GDZ 62 1.2 60000 RPM Motor Quay Dao
