Other Brands · PLC Module
G121SN01-V4

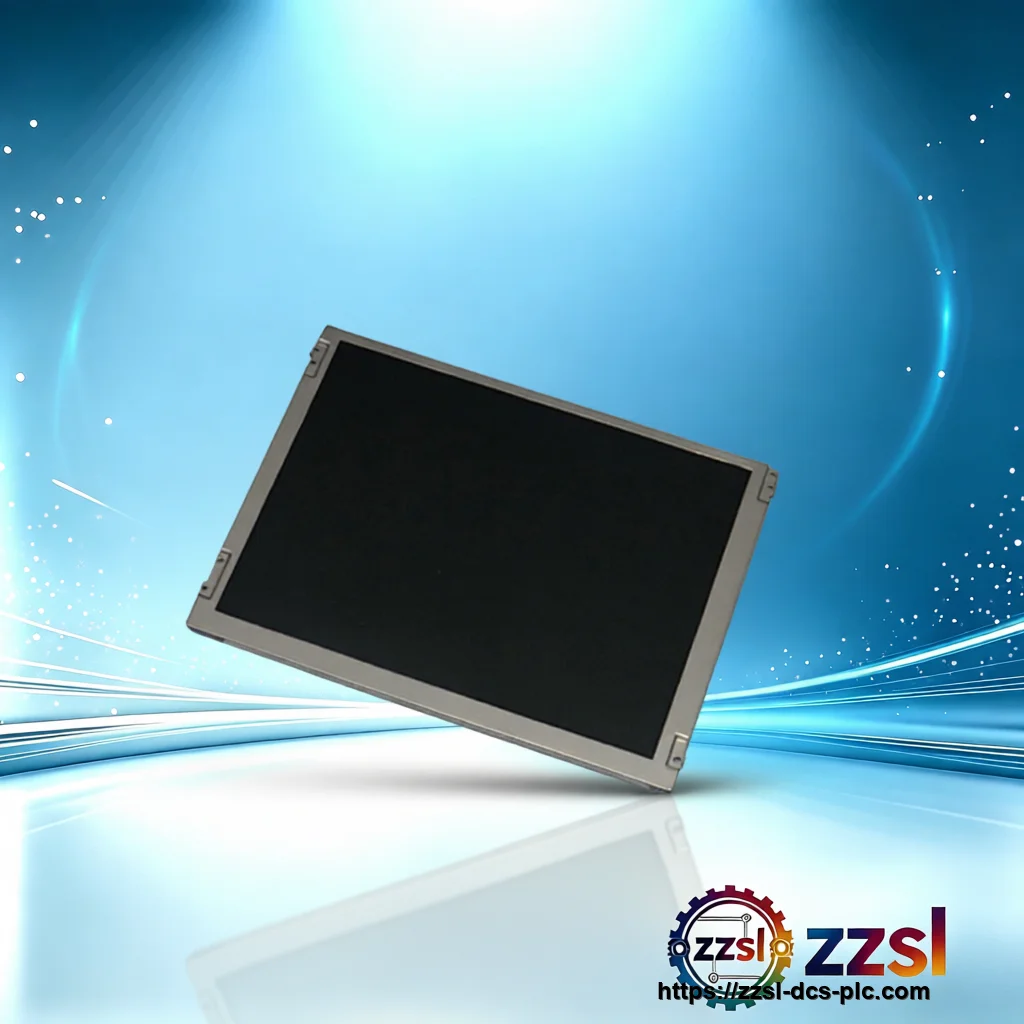

OPTRONICS TFT LCD Display Module G121SN01 V4
Other Brands
OPTRONICS TFT LCD Display Module G121SN01 V4
['Home', 'Industrial Automation Spare Parts', 'Optronics', 'Industrial Display Modules'] Need OPTRONICS G121SN01 V4? TF…
Specifications
| Brand | Optronics |
|---|---|
| Model Number | G121SN01 V4 |
| Official Product Name | 12.1 inch SVGA TFT LCD Display Module |
| Applicable System | Industrial HMI, embedded and display systems |
| Product Type | TFT LCD Display Module |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Mature |
| Lifecycle note | Active / Mature |
| Resolution | 800 x 600 (SVGA) |
| Display mode | TN, Normally White |
| Interface | 1-channel LVDS |
| Input voltage | 3.3 V DC (typ.) |
| Power consumption | typ. 6.7 W |
| Active area | 246.0 x 184.5 mm |
| Dimensions (W x H x D) | 279.0 x 209.0 x 9.0 mm |
| Weight | max 580 g |
| Operating temperature | -30 to +85 deg C |
| Screen size | 12.1 inch diagonal |
Product Description
Basic Product Information
- LVDS (1 channel) electrical interface
- Long-life LED backlight, replaceable LED unit
- Wide operating temperature range for industrial use
- 12.1 inch SVGA (800 x 600) color TFT-LCD
Technical Specifications
Version & Model Difference
- The G121SN01 V4 is compatible with the earlier G121SN01 V3 (LVDS interface). It upgrades to a long-life LED backlight. Contact supplier for V3 vs V4 compatibility in your design.
Application Scenarios
- Industrial human-machine interface (HMI) panels
- Embedded and machine control displays
- Outdoor and wide-temperature equipment
