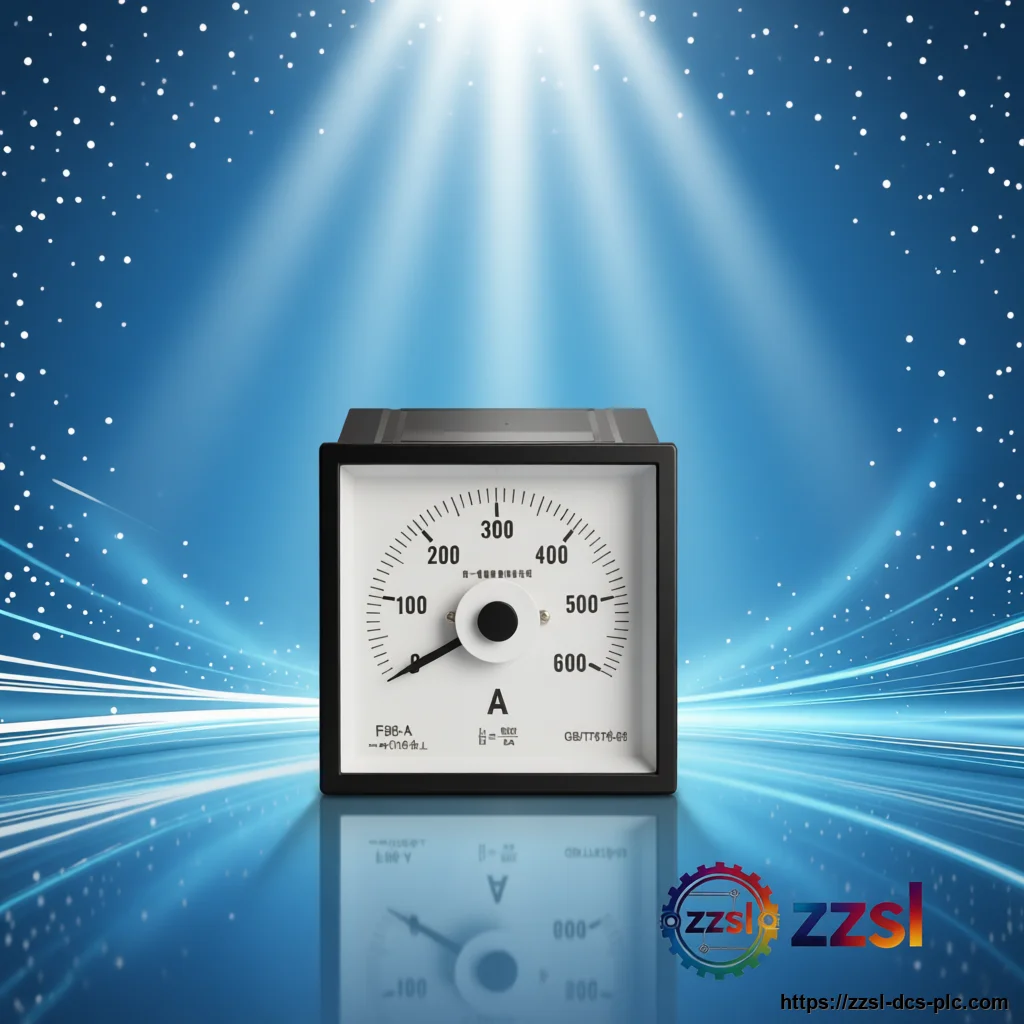

Jinbo Marine Analog Panel Meter F96-ACB
Home > Products > Jinbo Marine > F96-ACB Need Jinbo Marine F96-ACB? Analog Panel Meter for Marine power distribution, industrial control panels. Suppl…
Contact us for current availability and best price of F96-ACB-ammeter.
Specifications
| Brand | Jinbo Marine |
|---|---|
| Model Number | F96-ACB |
| Official Product Name | AC Ammeter (Moving Iron) |
| Applicable System | Marine power distribution, industrial control panels |
| Product Type | Analog Panel Meter |
| Equivalent Standard | IEC 60051, GB/T 7676 |
| Product Status | In Stock |
| Measuring Range | 0-1A, 0-5A, 0-10A, 0-20A, 0-50A, 0-100A, 0-200A, 0-500A, 0-1000A (with external CT) |
| Frequency | 50-60 Hz |
| Panel Size | 96 x 96 mm |
| Cutout Size | 92 x 92 mm |
| Case Material | Flame-retardant ABS plastic |
| Window Material | Glass |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | ≤95% (non-condensing) |
| Protection Degree | IP54 (front face) |
| Weight | Approx. 0.35 kg |
| Accuracy Class | 1.5 |
Product Description
It features a 96x96mm square panel size, making it compatible with standard cutouts. The meter provides accurate current measurement with a moving iron mechanism, ensuring reliable performance in harsh environments. Its robust construction and clear scale readability make it a preferred choice for switchboards and control panels. This ammeter is part of the Jinbo Marine F96 series, known for its precision and durability. The F96-ACB measures alternating current with a full-scale deflection that can be customized via external current transformers. It operates within a frequency range of 50-60 Hz and is designed to withstand vibration and temperature variations typical of marine settings. The meter is housed in a flame-retardant plastic case with a glass window, offering protection against dust and moisture. With an accuracy class of 1.5, the F96-ACB ensures reliable readings for monitoring electrical systems. It is widely used in ship power distribution systems, generator control panels, and industrial automation. The meter is available with various current ranges, typically from 0-1A to 0-6000A when used with current transformers. Its installation is straightforward, requiring only a standard 92x92mm panel cutout and two mounting clamps. The Jinbo Marine F96-ACB is a high-quality analog AC ammeter designed for marine and industrial applications.
Basic Product Information
- Moving iron measuring mechanism for AC current
- Accuracy class 1.5 per IEC 60051
- Wide current range options via external CT (e.g., 0-1A, 0-5A, 0-100A, etc.)
- Flame-retardant ABS case with glass window
- Vibration and moisture resistant for marine use
- 96x96mm square panel size with 92x92mm cutout
Technical Specifications
Version & Model Difference
The F96-ACB is part of the F96 series, which includes various models such as F96-A (AC ammeter), F96-V (AC voltmeter), F96-HZ (frequency meter), and F96-W (wattmeter). The 'ACB' suffix indicates a specific AC ammeter variant with a moving iron mechanism. Compared to other models, the F96-ACB is optimized for current measurement and may have different scale ranges and input configurations. There are no major version differences within the F96-ACB model, but options for different current ranges and CT ratios are available.
Application Scenarios
- Jinbo Marine F96-ACB-V Voltmeter (Right Angle Meter) 0-300V
- Jinbo Marine F96-ACB-A Ammeter (Right Angle Meter) 0~100A
- Jinbo Marine F96-ACB ACB Frequency Meter (F96-ACB)
