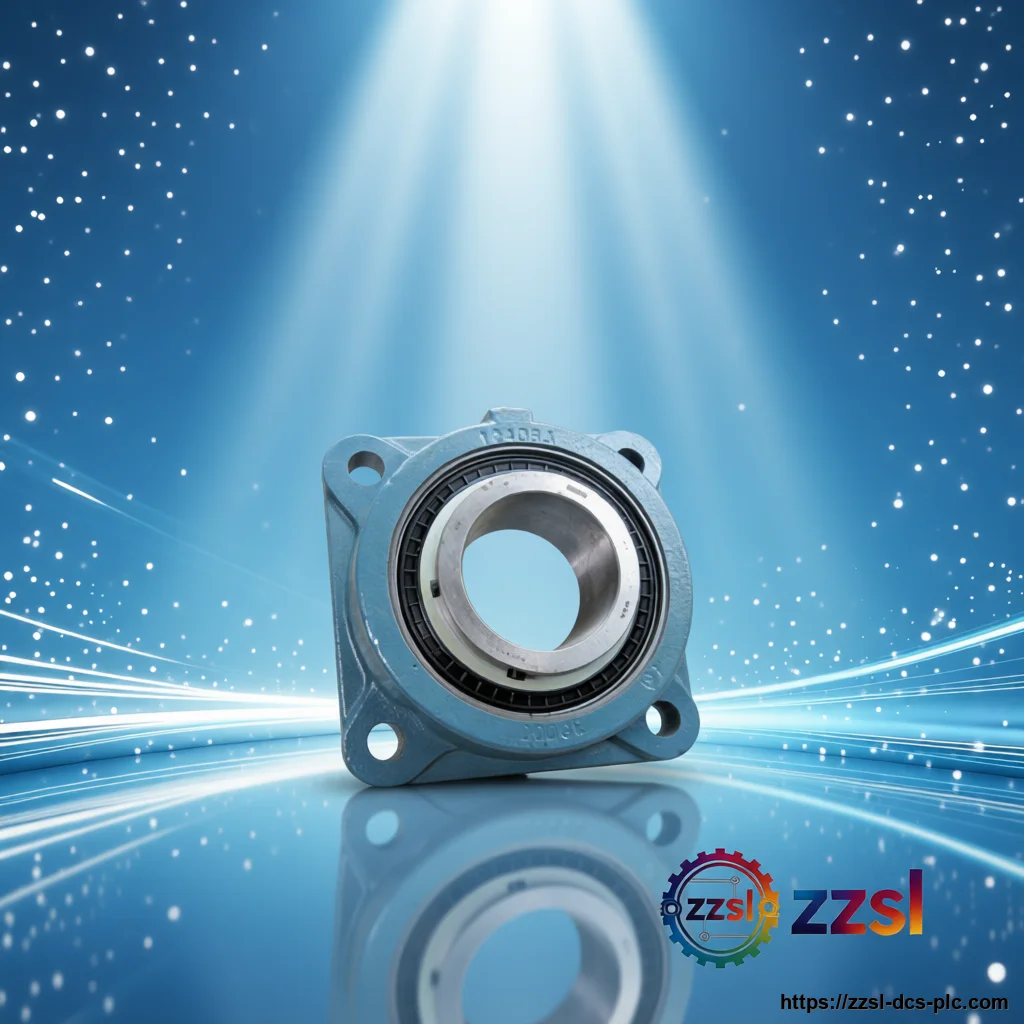

Dodge Four-bolt flange mounted ball bearing F4B-SCM-215
Home > Products > Dodge > Mounted Bearing Dodge F4B-SCM-215 Four-bolt flange mounted ball bearing. For Shaft support in air handling, conveying and ma…
Specifications
| Brand | Dodge (Regal Rexnord) |
|---|---|
| Model Number | F4B-SCM-215 |
| Official Product Name | SCM Series Medium-Duty Four-Bolt Flange Unit |
| Applicable System | Shaft support in air handling, conveying and machinery |
| Product Type | Four-bolt flange mounted ball bearing |
| Equivalent Standard | N/A |
| Product Status | Active |
| Bolt Hole Spacing | 6 inch |
| Bolt Size | 3/4 inch |
| Housing Height | 7.75 inch |
| Overall Width | 3.09 inch (approx.) |
| Static Load Capacity | 13102 lbf (approx.) |
| Maximum Speed | 2500 rpm (max) |
| Weight | Approx. 17.8 - 20 lb |
| Shaft Diameter | 2.9375 inch (74.6 mm) |
Product Description
Part of the Dodge SC/SCM line (now Regal Rexnord). The Dodge F4B-SCM-215 is a medium-duty four-bolt flange ball bearing with a 2-15/16 inch (74.6 mm) bore, 65-degree set-screw locking, cast iron housing and a 216 Series ball bearing insert with DualGuard seals.
Basic Product Information
- Medium-duty SCM line with 216 Series ball insert
- DualGuard sealing with rubberized flinger
- Anti-rotation pin and precision hardened/honed rings
- Cast iron one-piece housing, powder coated
- 2-15/16 inch (74.6 mm) bore, 65-degree set-screw locking
Technical Specifications
Version & Model Difference
- The SC/SCM/SL families differ by duty and inner-ring width. The F4B-SCM-215 is a four-bolt flange; the P2B variant is a pillow block. Confirm bore, duty and expansion type when replacing.
Application Scenarios
- Air handling and HVAC equipment
- Conveyors and material handling
- Food, beverage, chemical and paper industries
- Replacement of Dodge flange-mounted bearings
Frequently Asked Questions
What bore does the Dodge F4B-SCM-215 have?
It has a 2-15/16 inch (74.6 mm) bore with 65-degree set-screw locking.
What sealing is provided?
It uses a DualGuard seal with a rubberized flinger for contamination protection.
What is the duty and housing?
It is a medium-duty SCM four-bolt flange in cast iron with a 216 Series ball insert.
What is its approximate weight?
It weighs approximately 17.8 to 20 lb depending on configuration.
