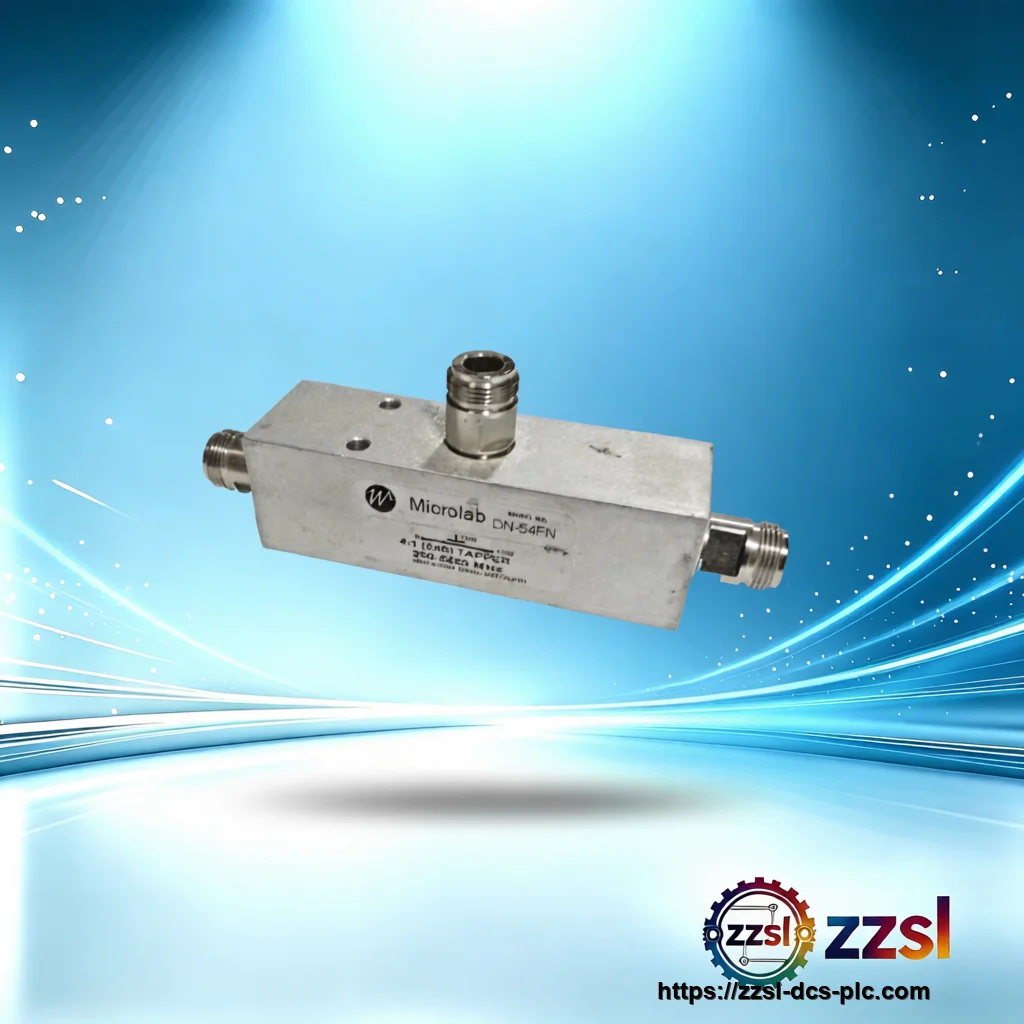

Microlab Directional tapper DN-54FN
Other Brands
Microlab Directional tapper DN-54FN
Home / RF Passives / Tappers / Microlab DN-54FN Need Microlab DN-54FN? Directional tapper for Wireless / cellular in-building and outdoor DAS. Supplied with fu…
Specifications
| Brand | Microlab (FXR) |
|---|---|
| Model Number | DN-54FN |
| Official Product Name | 6 dB (4:1) Tapper, 350-5930 MHz, 500 W |
| Applicable System | Wireless / cellular in-building and outdoor DAS |
| Product Type | Directional tapper / power splitter |
| Equivalent Standard | EN 50155:2001 (Class T3); RoHS |
| Product Status | Active |
| Lifecycle note | Commercialized |
| Split ratio | 4:1 / 6.0 dB |
| Average power | 500 W (3 kW peak) |
| PIM | -161 dBc (2 tones at +43 dBm) |
| Connectors | N-Type (f), trimetal |
| VSWR | 1.2:1 (700-2500 MHz), 1.3:1 (350-5930 MHz) |
| Ingress protection | IP67 |
| Weight | 0.875 lb (380 g) |
| Frequency range | 350 - 5930 MHz |
Product Description
Basic Product Information
- 500 W average, 3 kW peak power rating
- Low PIM -161 dBc (2 tones at +43 dBm)
- N-type connectors, IP67, lightweight 380 g
- 6 dB (4:1) unequal split across 350-5930 MHz
Technical Specifications
Version & Model Difference
- ['DN-54FN uses N-type connectors', 'DN-x4FD and DN-x4FE variants use 7-16 and 4.3-10 connectors', 'Split ratios range from 1000:1 to 2:1 across the family']
Application Scenarios
- Cellular and public-safety DAS
- TETRA, PMR, UMTS, WiFi coverage
- In-building and outdoor wireless distribution
