Other Brands · PLC Module
DHI-NVR5432-16P-IL

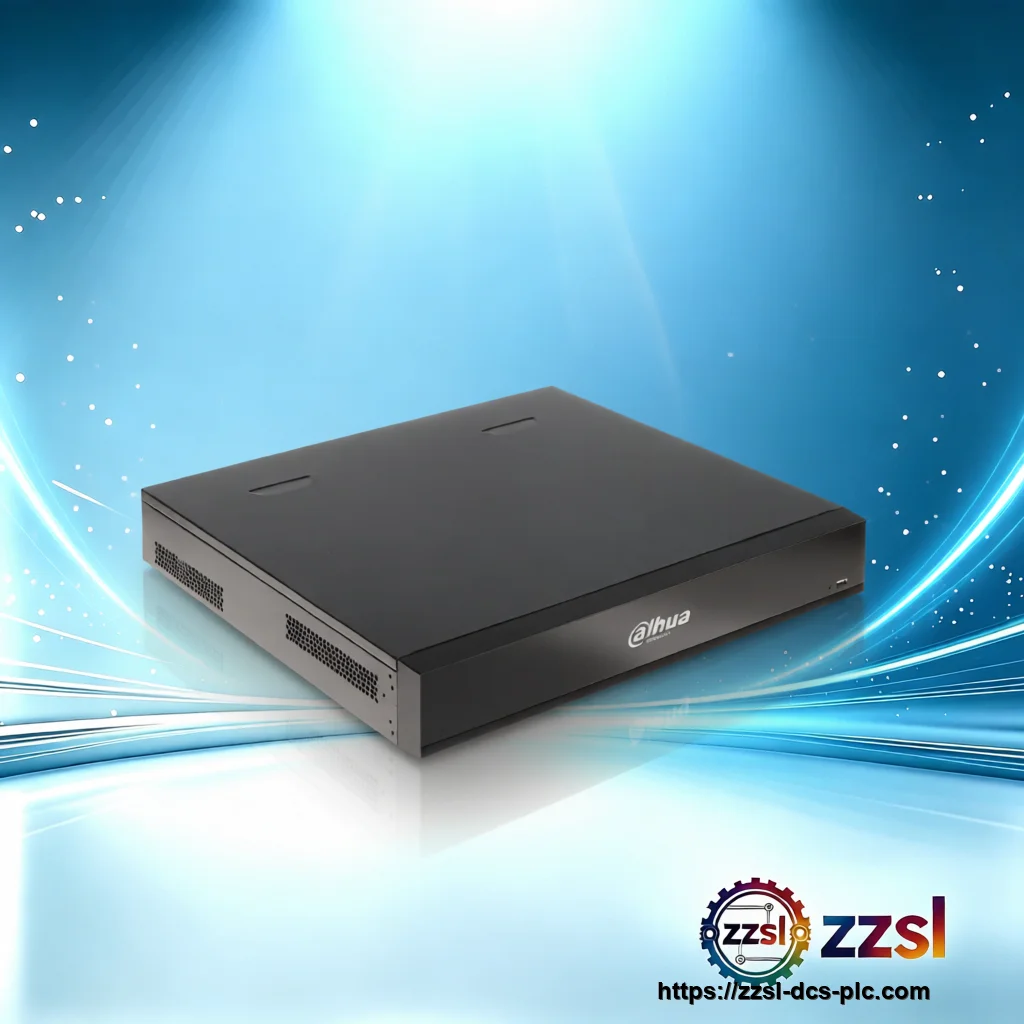

Dahua Network Video Recorder DHI-NVR5432-16P-I/L
Other Brands
Dahua Network Video Recorder DHI-NVR5432-16P-I/L
['Home', 'Video Surveillance', 'Network Video Recorders', 'Dahua WizMind', 'DHI-NVR5432-16P-I/L'] Need Dahua …
Price on Request
Contact us for current availability and best price of DHI-NVR5432-16P-IL.
Specifications
| Brand | Dahua |
|---|---|
| Model Number | DHI-NVR5432-16P-I/L |
| Official Product Name | 32-Channel WizMind NVR (1.5U, 4HDDs, 16PoE) |
| Applicable System | IP video surveillance / CCTV |
| Product Type | Network Video Recorder (NVR) |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Discontinued |
| Lifecycle note | Commercialized (some listings show discontinued status) |
| Recording bandwidth | 320 Mbps (160 Mbps with AI enabled) |
| Storage | 4 x SATA III, up to 10 TB per HDD |
| PoE ports | 16 ports (IEEE 802.3af/at), 150 W total |
| Video outputs | 2 x HDMI, 1 x VGA |
| Max. resolution | Up to 16 MP |
| Power supply | AC 100-240 V, 50-60 Hz |
| Dimensions | 440.0 x 411.1 x 76.0 mm (1.5U) |
| Net weight | 5.00 kg (without HDD) |
| Operating temperature | -10 to +55 C |
| IP camera input | 32 channels |
Product Description
Basic Product Information
- 16 built-in PoE ports (IEEE 802.3af/at; ports 1-8 support ePoE & EoC)
- 4 SATA III bays, up to 10 TB per HDD
- Dual HDMI and VGA outputs; Smart H.265+/H.265/H.264 compression
- ONVIF 2.4, SDK, CGI interoperability; up to 128 user access
- 32 IP camera channels with 320 Mbps recording bandwidth
Technical Specifications
Version & Model Difference
['The DHI-NVR5432-16P-I/L is part of the WizMind NVR 5-IL series; regional listings may mark it discontinued while spares remain available.', 'Alternative Dahua NVRs differ in channel count, PoE budget and AI capabilities.']
Application Scenarios
- Enterprise and campus IP video surveillance
- Factory, warehouse and logistics site security
- Smart city and traffic monitoring back-end recording
