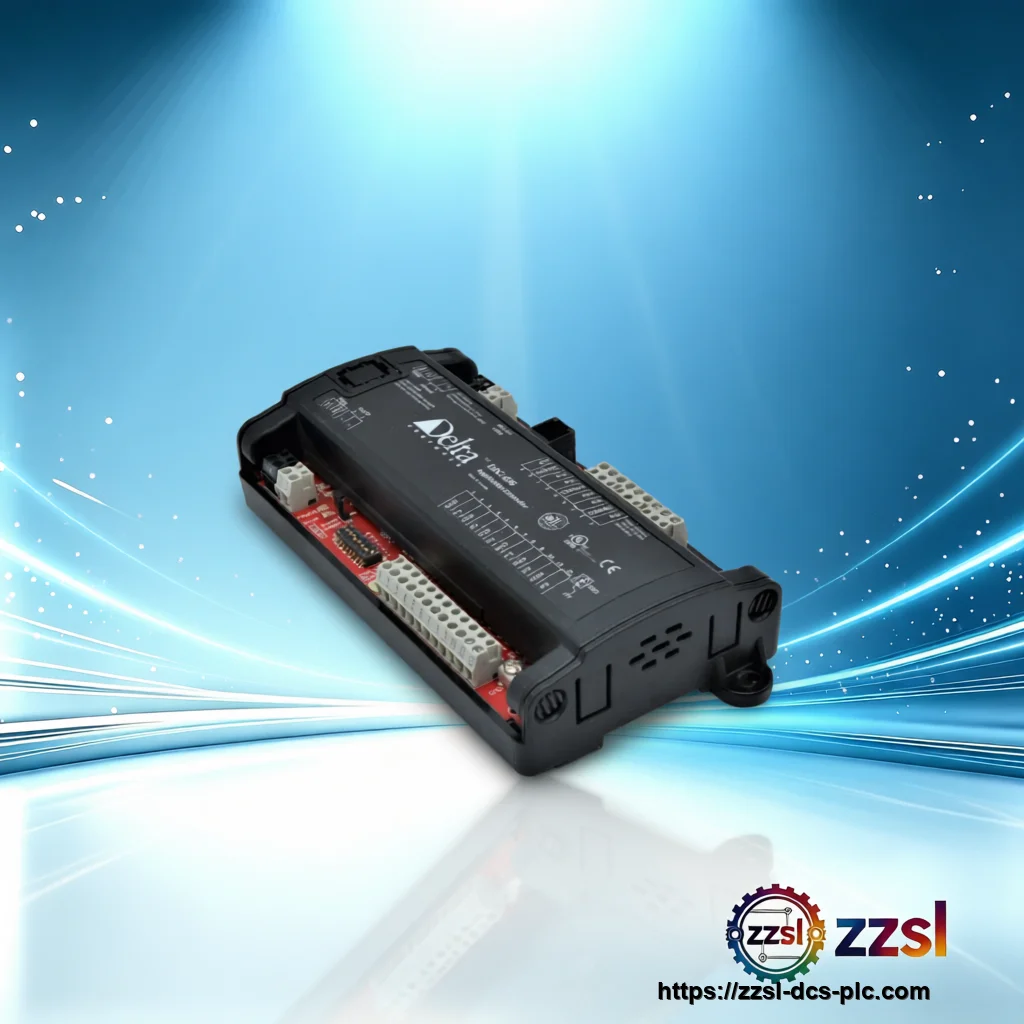

Delta Controls BACnet advanced application DAC-606
Other Brands
Delta Controls BACnet advanced application DAC-606
['Home', 'Building Automation', 'Delta Controls', 'BACnet Controllers', 'DAC-606'] Need Delta Controls DAC-60…
Specifications
| Brand | Delta Controls |
|---|---|
| Model Number | DAC-606 |
| Official Product Name | DAC-606 BACnet Advanced Application Controller |
| Applicable System | Building automation / HVAC control |
| Product Type | BACnet advanced application controller |
| Equivalent Standard | Contact us for details |
| Product Status | Active |
| Lifecycle note | Available (current product) |
| Outputs | 6 binary TRIAC outputs |
| Power | 24 VAC 50/60 Hz, 8 VA (80 VA with fully loaded outputs) |
| Processor | 32-bit |
| Memory (DAC-606) | 1 MB Flash, 127 KB SRAM |
| Memory (DAC-606E) | 2 MB Flash, 319 KB SRAM |
| Communications | BACnet MS/TP (NET1); LINKnet (NET2); Ethernet on DAC-606E |
| Dimensions | Approx. 21.8 x 10.7 x 4.9 cm with housing |
| Weight | Approx. 0.36 kg with housing |
| Operating temperature | 0 to 55 deg C |
| Inputs | 6 universal inputs, 10-bit |
Product Description
Basic Product Information
- 6 universal inputs (0-5V, 0-10V, 10k thermistor, 4-20mA, dry contact)
- 6 binary TRIAC outputs (internal or external power)
- BACnet MS/TP (DAC-606) or BACnet IP (DAC-606E); DIN rail mount
- Native BACnet firmware, fully programmable in GCL+
Technical Specifications
Version & Model Difference
- Two hardware variants: DAC-606 (BACnet MS/TP) and DAC-606E (BACnet IP/Ethernet). Confirm the required communication protocol before ordering.
Application Scenarios
- Fan coil and unit ventilator control
- Heat pump and small boiler / chiller control
- General BACnet building automation
- It is screw or DIN rail mountable and programmable in GCL+ via Delta tools.
