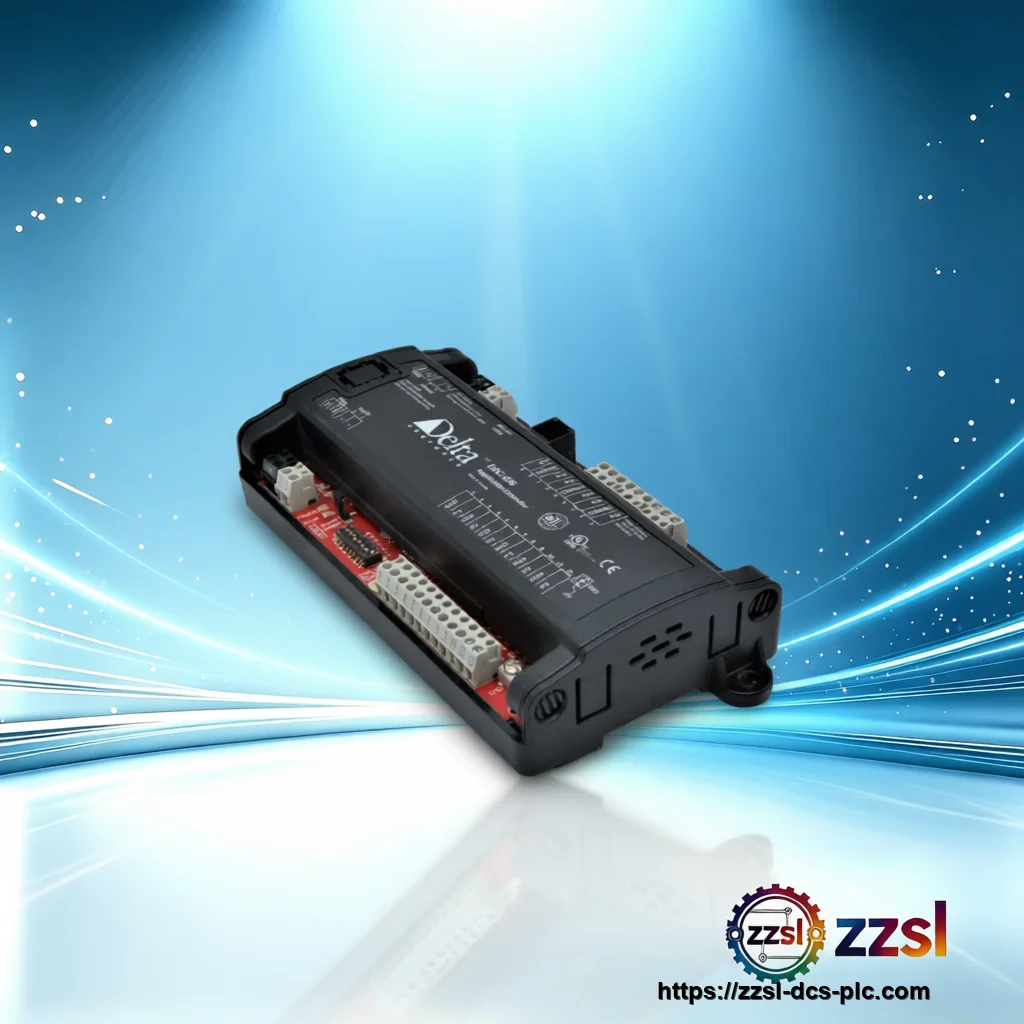

Delta Controls BACnet Application Controller DAC-606
Home > Delta Controls > BACnet Application Controllers > DAC-606 Need Delta Controls DAC-606? BACnet Application Controller for BACnet MS/TP / BACnet …
Specifications
| Brand | Delta Controls |
|---|---|
| Model Number | DAC-606 |
| Official Product Name | DAC-606 Native BACnet Application Controller |
| Applicable System | BACnet MS/TP / BACnet IP BMS networks |
| Product Type | BACnet Application Controller |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Inputs | 6 universal inputs (10-bit): 0-5 VDC, 0-10 VDC, 10 kohm thermistor, dry contact, 4-20 mA |
| Outputs | 6 binary TRIAC outputs, 0.5 A @ 24 VAC per output |
| Power requirement | 24 VAC 50/60 Hz, 8 VA (80 VA max with loaded outputs) |
| Communications | BACnet MS/TP (RS-485); DAC-606E adds BACnet IP / Ethernet |
| Device addressing | DIP switches / jumpers or software setup |
| Connectors | Removable screw-type terminal connectors |
| Processor / memory | 32-bit; 1 MB Flash, 127 KB SRAM (DAC-606) |
| Mounting | Screw or DIN rail mountable |
| Ambient rating | 0 to 55 C, 10 to 90% RH non-condensing |
| Listings | UL 916 Listed, BTL Listed, CE, FCC |
| BACnet device profile | BACnet Advanced Application Controller (B-AAC) |
Product Description
It provides 6 universal inputs and 6 binary TRIAC outputs and communicates on an RS-485 LAN using BACnet MS/TP (the DAC-606E variant adds BACnet IP / BACnet over Ethernet). Programs are written in GCL+ and it supports BACstat network sensors plus Delta LINKnet expansion devices for room sensing and I/O growth. The Delta Controls DAC-606 is a fully programmable Native BACnet Advanced Application Controller (B-AAC) designed for equipment with small local I/O needs.
Basic Product Information
- 6 universal inputs (10-bit) supporting 0-5 V, 0-10 V, 10 kohm thermistor, dry contact, 4-20 mA
- 6 binary TRIAC outputs (0.5 A @ 24 VAC each, internal or external power selectable)
- BACnet MS/TP communications with optional BACnet IP on the DAC-606E variant
- Native BACnet B-AAC firmware, fully programmable in GCL+
Technical Specifications
Version & Model Difference
The DAC-606 uses BACnet MS/TP over RS-485; the DAC-606E adds a Twisted-Pair Ethernet 10-BaseT port for BACnet IP and BACnet over Ethernet plus a maintenance-free super capacitor for RTC/SRAM backup. Both share the same I/O count and GCL+ program environment; choose the variant by the required network protocol.
Application Scenarios
- Control of fan coil units, unit ventilators and heat pumps
- Small boilers, chillers and packaged equipment with limited I/O
- Room sensing and control via BACstat network sensors
- Retrofit and expansion of BACnet building management systems
Frequently Asked Questions
What communication protocol does the DAC-606 use?
The DAC-606 communicates over BACnet MS/TP on an RS-485 LAN; the DAC-606E variant additionally supports BACnet IP and BACnet over Ethernet.
How many inputs and outputs does it provide?
It has 6 universal 10-bit inputs (voltage, thermistor, dry contact, 4-20 mA) and 6 binary TRIAC outputs rated 0.5 A at 24 VAC each.
Can the controller be expanded?
Yes. It supports up to 6 BACstat network sensors or 2 Delta Field Modules on the LINKnet sub-LAN for room sensing and I/O expansion.
Is the DAC-606 programmable in the field?
Yes. It is fully programmable in GCL+ with firmware upgrade and database load/save over the network. Contact us for cross-reference and alternative models for your protocol.
