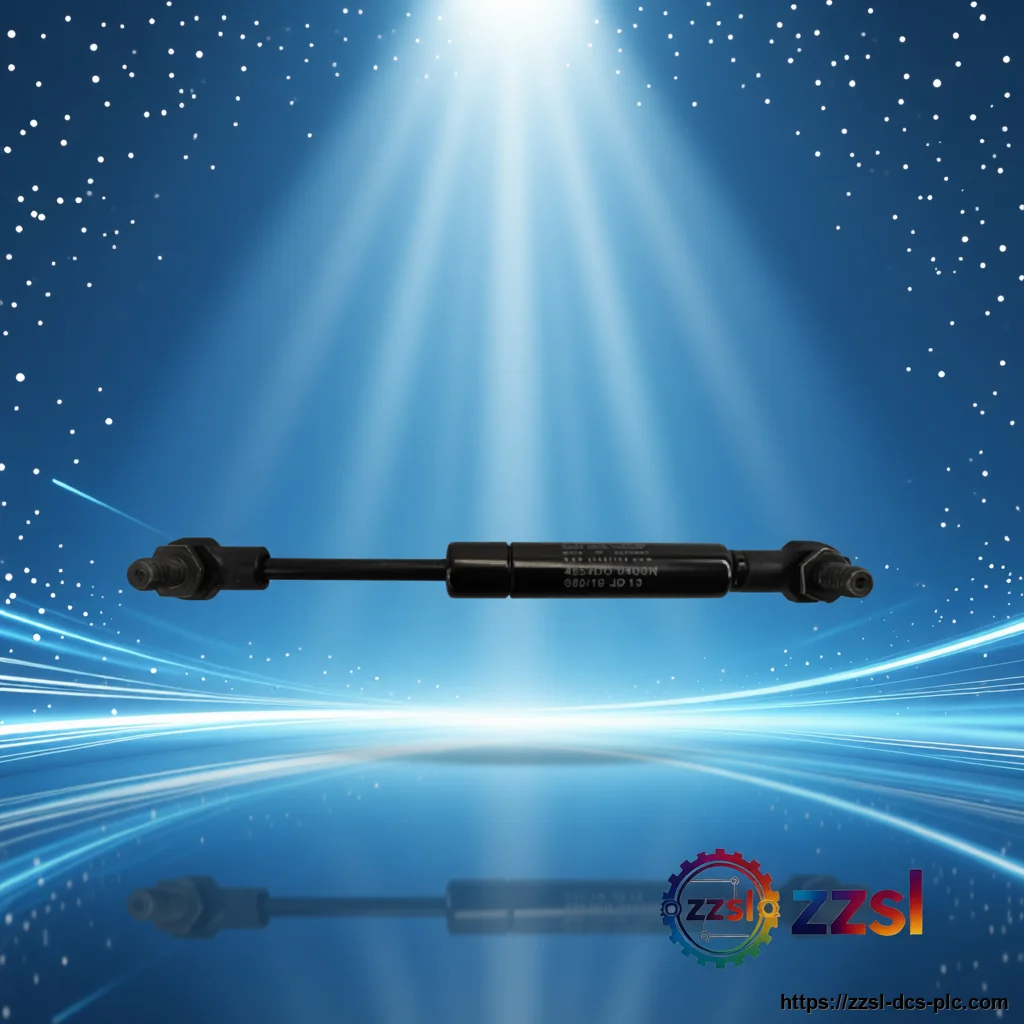

D19325mm--pressure-400N

Product Description

With a rated thrust of 400N (approximately 40 kg force), this actuator is engineered to deliver consistent force output for applications such as valve control, damper positioning, solar panel tracking, and various automation systems. The D19 series features a compact cylindrical housing with a 19mm diameter, making it suitable for space-constrained installations while maintaining robust structural integrity. This actuator operates on a 12V or 24V DC power supply (configurable), providing smooth and quiet operation. It comes with a standard stroke length of 325mm, allowing for a wide range of motion. The unit is equipped with a built-in limit switch system that ensures precise end-of-stroke positioning, preventing over-travel and enhancing operational safety. The IP65 protection rating makes it resistant to dust and water ingress, enabling outdoor and washdown applications. Constructed with high-strength aluminum alloy housing and a stainless steel push rod, the D19*325mm actuator offers excellent corrosion resistance and durability. It is designed for intermittent duty cycles (typically 25% duty cycle) and is maintenance-free for life. The actuator is available with optional feedback signals (Hall sensor or potentiometer) for position monitoring, making it adaptable to closed-loop control systems. STIBIRUS ensures each unit undergoes rigorous quality testing to meet international standards, providing a reliable solution for OEM and aftermarket applications. The STIBIRUS D19*325mm Linear Actuator is a high-performance electric linear actuator designed for precise and reliable linear motion in demanding industrial environments.

Basic Product Information

• Compact 19mm diameter cylindrical housing for space-saving installation
• Standard stroke length of 325mm for versatile applications
• Built-in limit switches for precise end-of-stroke control
• IP65 protection rating for dust and water resistance
• Available in 12V or 24V DC power supply options
• Optional feedback signals (Hall sensor or potentiometer) for position monitoring
• High-strength aluminum alloy and stainless steel construction for durability
• Rated thrust of 400N (40 kg) for reliable force output

Technical Specifications

Version & Model Difference

The D19 series linear actuators come in various stroke lengths (e.g., 100mm, 200mm, 325mm, 400mm) and thrust ratings (e.g., 400N, 600N, 1000N). The D19*325mm model specifically offers a 325mm stroke with a 400N force. Voltage options include 12V and 24V DC, with 24V being more common for industrial applications. Some versions may include a potentiometer feedback for position sensing, while others use a Hall sensor. The basic version has no feedback, suitable for simple open-loop control. Always verify the exact configuration (voltage, feedback, and mounting) before ordering.

Application Scenarios

• STIBIRUS Piston D19*325mm (Pressure 400N)
