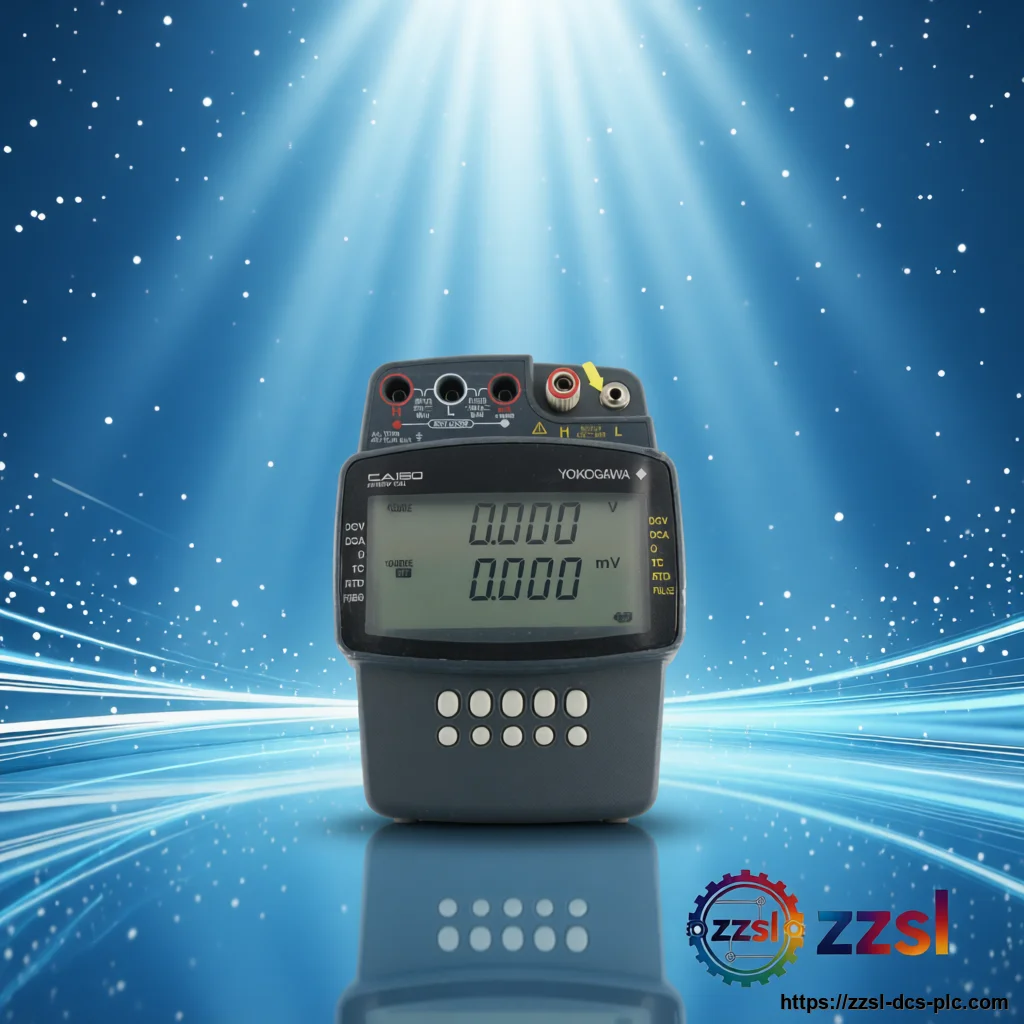

Yokogawa Handy Calibrator CA150
Home > Yokogawa > Calibrators > CA150 Need Yokogawa CA150? Handy Calibrator for Field calibration and maintenance of process instruments. Supplied wit…
Specifications
| Brand | Yokogawa |
|---|---|
| Model Number | CA150 |
| Official Product Name | CA150 Handy Calibrator |
| Applicable System | Field calibration and maintenance of process instruments |
| Product Type | Handy Calibrator (Source & Measure) |
| Equivalent Standard | EN 61010-1, EN 61326 Class B |
| Product Status | In Stock |
| DC voltage accuracy | ±0.02% of reading + 50 µV |
| Loop power | 24 V DC (max 22 mA) |
| Display | Segmented LCD with LED backlight |
| Power supply | 6 x AA alkaline / AC adapter 100-240 VAC / NiMH (optional) |
| Dimensions | 251 x 124 x 70 mm |
| Weight | Approx. 1000 g |
| Operating temperature | 0 to 40 °C |
| Storage temperature | -20 to 60 °C |
| Safety / EMC | EN 61010-1; EN 61326 Class B, EN 55011 Class B Group 1 |
| Functions (source & measure) | DCV, DCA, resistance, RTD, TC (10 types), frequency, pulse |
Product Description
With DC voltage accuracy of ±0.02%, a built-in 24 V DC loop-power function and a vertical LCD layout, it replaces separate signal generators, decade resistors and multimeters in one tool. It is purpose-built for calibration and troubleshooting of transmitters, temperature controllers and signal converters at the maintenance site. The Yokogawa CA150 is a handy (portable) calibrator that simultaneously sources and measures voltage, current, resistance, thermocouple, RTD and pulse signals for field maintenance of process instruments.
Basic Product Information
- High DC voltage accuracy of ±0.02% of reading + 50 µV
- Built-in 24 V DC loop power (max 22 mA) for 2-wire transmitter checks
- Vertical body with large backlit LCD and optional carry strap for hands-free use
- Runs on 6 AA batteries, optional AC adapter (100-240 VAC) or NiMH battery
- Simultaneously sources and measures DCV, DCA, resistance, RTD, TC (10 types), frequency and pulse
Technical Specifications
Version & Model Difference
The CA150 is the standard handy calibrator covering DCV/DCA/resistance/TC/RTD/frequency/pulse with loop power; related CA-series models extend ranges or add functions. Confirm the CA150 meets your required signal types before selecting an alternative grade.
Application Scenarios
- Field calibration and routine checks of process transmitters
- Maintenance of temperature controllers and signal converters
- Thermocouple and RTD verification on site
- Loop commissioning with built-in 24 V DC loop power
- Yokogawa SAI143-H03 S2 Analog Input Module
- Yokogawa SDV541-S33 S2 Digital Output Module
- Yokogawa AKB331-M003 Signal Cable Assembly
Frequently Asked Questions
What does the Yokogawa CA150 measure and source?
It simultaneously sources and measures DC voltage, DC current, resistance, RTD, ten thermocouple types, frequency and pulse signals for instrument calibration.
How accurate is the CA150?
Its DC voltage accuracy is ±0.02% of reading plus 50 µV, with comparable high precision across the other measurement functions.
Can the CA150 power a 2-wire transmitter?
Yes. It has a built-in 24 V DC loop-power function (max 22 mA) that supplies and measures a 2-wire transmitter current in one step.
What power options does the CA150 use?
It runs on six AA alkaline batteries, an optional 100-240 VAC AC adapter, or an optional dedicated NiMH battery, and weighs about 1000 g.
