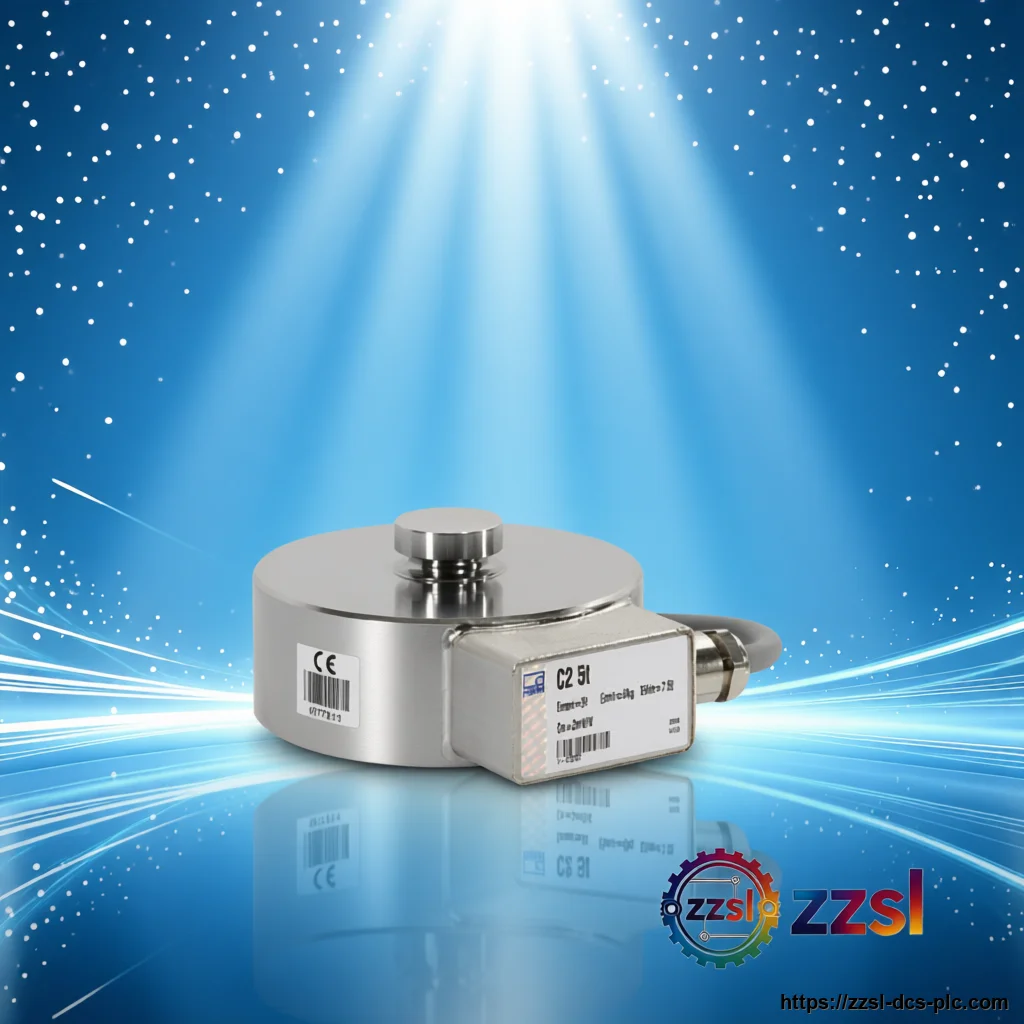

HBM Compression Force Transducer C2/200KN
Home > HBM > Force Transducers > C2/200KN Need HBM C2/200KN? Compression Force Transducer for Static and dynamic force measurement chains. Supplied wi…
Specifications
| Brand | HBM (Hottinger Brüel & Kjær) |
|---|---|
| Model Number | C2/200KN |
| Official Product Name | C2 Compression Force Transducer |
| Applicable System | Static and dynamic force measurement chains |
| Product Type | Compression Force Transducer (Load Cell) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Direction | Compression |
| Accuracy class | 0.1 |
| Nominal sensitivity | 2 mV/V |
| Measurement technology | Strain gauge |
| Degree of protection | IP67 |
| Diameter | 115 mm |
| Height | 60 mm |
| Nominal temperature range | -10 °C to +70 °C |
| Connection cable | Permanently mounted, 12 m with free ends (standard) |
| Material | Stainless steel |
| Nominal (rated) force | 200 kN (45 klbf) |
Product Description
Its high-stiffness diaphragm design shows only minimal deflection under load, giving excellent dynamic behaviour for fast press, forming and test-bench measurements. Hermetically encapsulated in stainless steel with IP67 protection, it is a long-term-available industry standard for reliable force measurement. The HBM C2/200KN is a compression force transducer from the proven C2 series, built to measure static and dynamic compressive forces up to 200 kN with accuracy class 0.1.
Basic Product Information
- Strain-gauge technology with 2 mV/V nominal sensitivity for static and dynamic tasks
- High stiffness and minimal deflection deliver excellent dynamic measurement behaviour
- Hermetically sealed stainless-steel body, laser-welded with IP67 protection
- Integrated lateral-force (bending moment) compensation and six-wire circuit
- Measures compressive forces up to 200 kN with HBM accuracy class 0.1
Technical Specifications
Version & Model Difference
The C2/200KN is the fixed-cable standard version of the C2 200 kN cell. The configurable K-C2- variant offers integrated amplifier with 0-10 V / 4-20 mA / IO-Link output, TEDS, and mounted connectors - choose the base C2 when a separate amplifier is already specified.
Application Scenarios
- Production and process monitoring of pressing and forming forces
- Material and component test benches (static and dynamic)
- Industrial weighing and assembly force verification
- Research and laboratory compressive force measurement
Frequently Asked Questions
What force range does the HBM C2/200KN cover?
It is a compression-only force transducer with a nominal (rated) force of 200 kN (45 klbf) and HBM accuracy class 0.1.
What output signal does the C2/200KN provide?
The standard C2/200KN is a passive strain-gauge cell with a 2 mV/V nominal sensitivity; amplified 0-10 V, 4-20 mA or IO-Link versions are available as the K-C2- configuration.
Is the C2/200KN suitable for dynamic measurements?
Yes. Its high-stiffness diaphragm design gives very small deflection and excellent dynamic behaviour, while IP67 sealing protects it in harsh industrial conditions.
What cable and protection does the transducer have?
The standard version ships with a permanently mounted 12 m cable with free ends, in a hermetically sealed stainless-steel body rated IP67.
