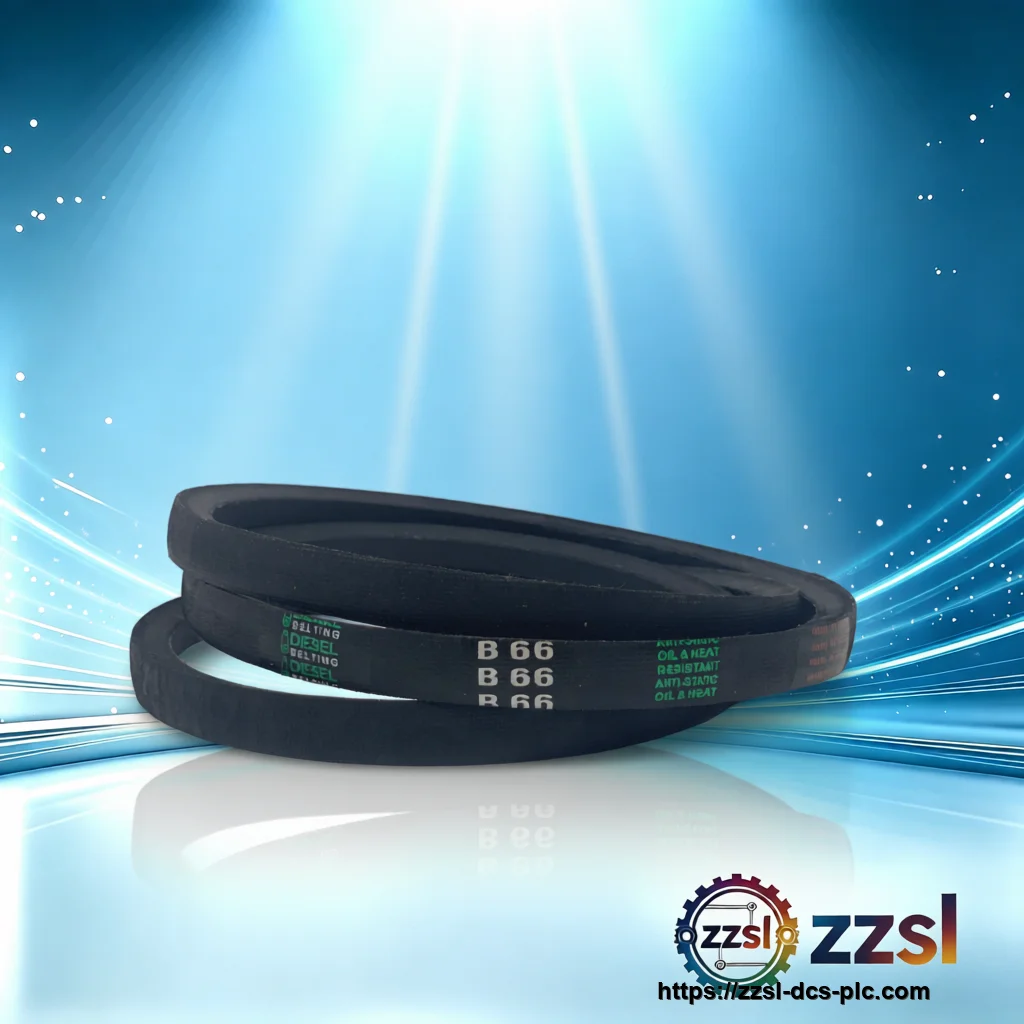

BANDO V-belt BELT,B66,BANDO
Home > BANDO > V-Belts > B66 Need BANDO BELT,B66,BANDO? V-belt for Classical B-section V-belt drives. Supplied with full traceability and documentatio…
Contact us for current availability and best price of BELTB66BANDO.
Specifications
| Brand | BANDO |
|---|---|
| Model Number | B66 |
| Official Product Name | BELT,B66,BANDO |
| Applicable System | Classical B-section V-belt drives |
| Product Type | V-belt (wrapped classical V-belt) |
| Equivalent Standard | Interchangeable with Gates B66, Continental B66, Dayco B66, Optibelt B66 (RMA / MPTA B-section) |
| Product Status | In Stock |
| Top Width | 17 mm (21/32 inch) |
| Depth / Thickness | 11 mm (7/16 inch) |
| Inside Length (Li) | 66 inch (1676.4 mm) |
| Outside Length (Lo) | 69 inch (approx. 1753 mm) |
| Datum / Pitch Length (Lp) | 67.8 inch |
| Belt Angle | 40 degrees |
| Minimum Pulley Diameter | approx. 118 mm |
| Construction | Wrapped rubber body with tensile cord reinforcement |
| Temperature Range | -30 to +90 C |
| Power Range | approx. 7.5 to 75 kW |
| Maximum Belt Speed | 30 m/s |
| Standards | RMA / MPTA classical V-belt standards; static conductive |
| Profile / Section | B (classical) |
Product Description
BANDO is a Japanese belt manufacturer, and its Red Seal and Power King B-section ranges use strong, low-stretch tensile cords and heat- and oil-resistant rubber compounds for dependable industrial power transmission. The 40-degree B profile with an 11 mm depth is the industry-standard cross-section shared by Gates, Continental, Dayco and Optibelt B66 belts, so it is widely interchangeable. Typical duties include machine tools, conveyors, compressors, blowers and agricultural equipment. The BANDO B66 is a classical B-section wrapped V-belt with a 66 inch (1676.4 mm) inside length and a 17 mm (21/32 inch) top width.
Basic Product Information
- 66 inch (1676.4 mm) inside length, with a 69 inch outside length and 67.8 inch datum length
- 40-degree belt angle for standard classical B-section pulleys
- High-strength, low-stretch tensile cords with a heat- and oil-resistant rubber compound
- Static conductive and resistant to heat, oil and flame; the BANDO Red Seal range is API certified for oil field use
- Industry-standard B cross-section, interchangeable with Gates, Continental, Dayco and Optibelt B66 belts
- Classical B-section V-belt with a 17 mm (21/32 inch) top width and 11 mm (7/16 inch) depth
Technical Specifications
Version & Model Difference
B66 denotes the classical B cross-section with a 66 inch inside length. The same designation is used across brands (Gates, Continental, Dayco, Optibelt) because B-section V-belts follow the RMA / MPTA and ISO naming system. A notched version is designated BX66; notched belts run cooler and are more flexible on smaller pulleys. Confirm inside versus outside length when replacing, as some catalogues quote outside length instead of inside length.
Application Scenarios
- Industrial motors and machine tools
- Conveyors, blowers and air compressors
- Agricultural equipment and pumps
- General industrial power transmission on multiple-belt drives
Frequently Asked Questions
What size is the Bando B66?
It is a classical B-section V-belt with a 66 inch (1676.4 mm) inside length and a 17 mm (21/32 inch) top width. The belt angle is 40 degrees.
Can I replace it with a Gates or Continental B66?
Yes. Classical B-section belts use a shared industry-standard naming system, so Gates, Continental, Dayco and Optibelt B66 belts have the same cross-section and length. In demanding drives, confirm the construction and rating of the replacement.
What is the difference between B66 and BX66?
The X suffix indicates a notched (cogged) construction. BX66 has the same length and width as B66 but runs cooler and is more flexible on smaller pulleys.
What temperature range does it handle?
The BANDO B-section range operates from about -30 to +90 C. Keep belts away from excessive heat and oil exposure to maximise service life.
