8BS-0822E

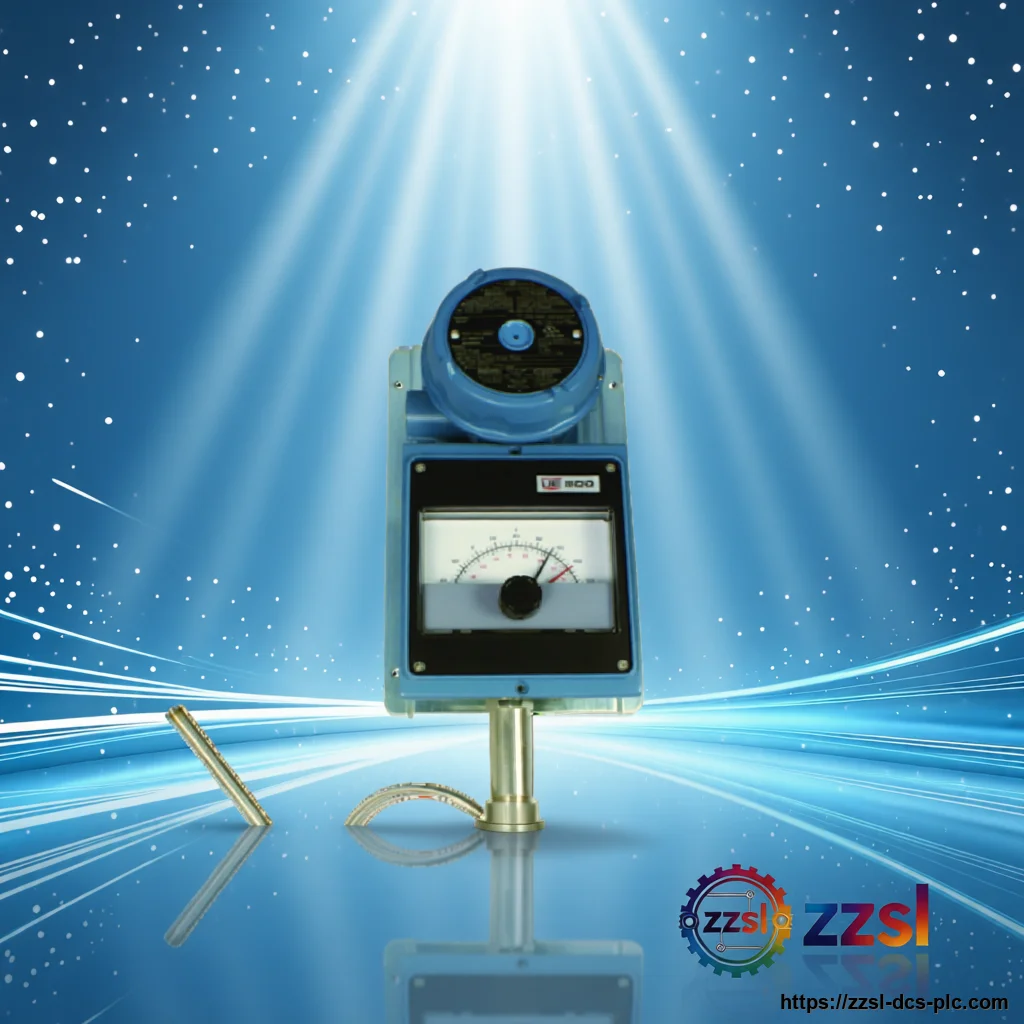

United Electric Temperature Switch 8BS 0822E
Other Brands
United Electric Temperature Switch 8BS 0822E
Home > Products > Temperature Switches > United Electric > 8BS 0822E Need United Electric 8BS 0822E? Temperature Switch for Industrial temperature …
Price on Request
Contact us for current availability and best price of 8BS-0822E.
Specifications
| Brand | United Electric (UE) |
|---|---|
| Model Number | 8BS 0822E |
| Official Product Name | Remote Capillary Temperature Indicator Switch |
| Applicable System | Industrial temperature monitoring and control systems |
| Product Type | Temperature Switch (Indicating) |
| Equivalent Standard | UE 8BS 0822E, 8BS0822E (exact match); cross-reference to similar UE models with same specs |
| Product Status | Active |
| Lifecycle note | Active, in production |
| Switch Contacts | 2SPDT (2 Form C) |
| Enclosure Rating | IP66 |
| Explosion-proof Rating | Explosion-proof (Class I, Div 1 & 2, Groups B, C, D; Class II, Div 1 & 2, Groups E, F, G) |
| Temperature Sensing Element | 304SS bulb and capillary |
| Capillary Length | 1.8 meters (standard) |
| Electrical Rating | Typically 15A @ 125/250/480 VAC; consult datasheet for specific ratings |
| Process Connection | 1/2" NPT or 3/4" NPT (verify exact connection) |
| Enclosure Material | Die-cast aluminum with epoxy coating |
| Indicating Dial | Analog dial with temperature scale |
| Weight | Approx. 2.7 kg (6 lbs) |
| Operating Ambient Temperature | -40 degC to 71 degC (-40 degF to 160 degF) |
| Approvals | UL, CSA, ATEX (depending on configuration) |
| Temperature Range | 10-340 degC (50-644 degF) |
Product Description
Basic Product Information
- Adjustable temperature range of 10-340 degC with field-adjustable setpoints
- 2SPDT (Form C) contacts for independent alarm and control circuits
- IP66 rated enclosure for protection against dust and high-pressure water jets
- Explosion-proof design suitable for hazardous locations
- Indicating dial for local temperature readout and verification
- Durable construction with corrosion-resistant materials for long service life
- Remote sensing via 304SS capillary and bulb for installation flexibility
Technical Specifications
Version & Model Difference
The 8BS 0822E is part of UE's 8BS series. Variations include different temperature ranges, capillary lengths, and electrical ratings. The 'E' suffix may indicate a specific enclosure or approval configuration. Always verify the exact model code for your application requirements.
Application Scenarios
- Industrial process control for temperature alarm and shutdown
- HVAC systems for duct and pipe temperature monitoring
- Power generation plants for cooling water and bearing temperature protection
- Petrochemical facilities for process temperature safety
- Water treatment plants for temperature monitoring in pumps and compressors
- OEM machinery for temperature interlock and control
