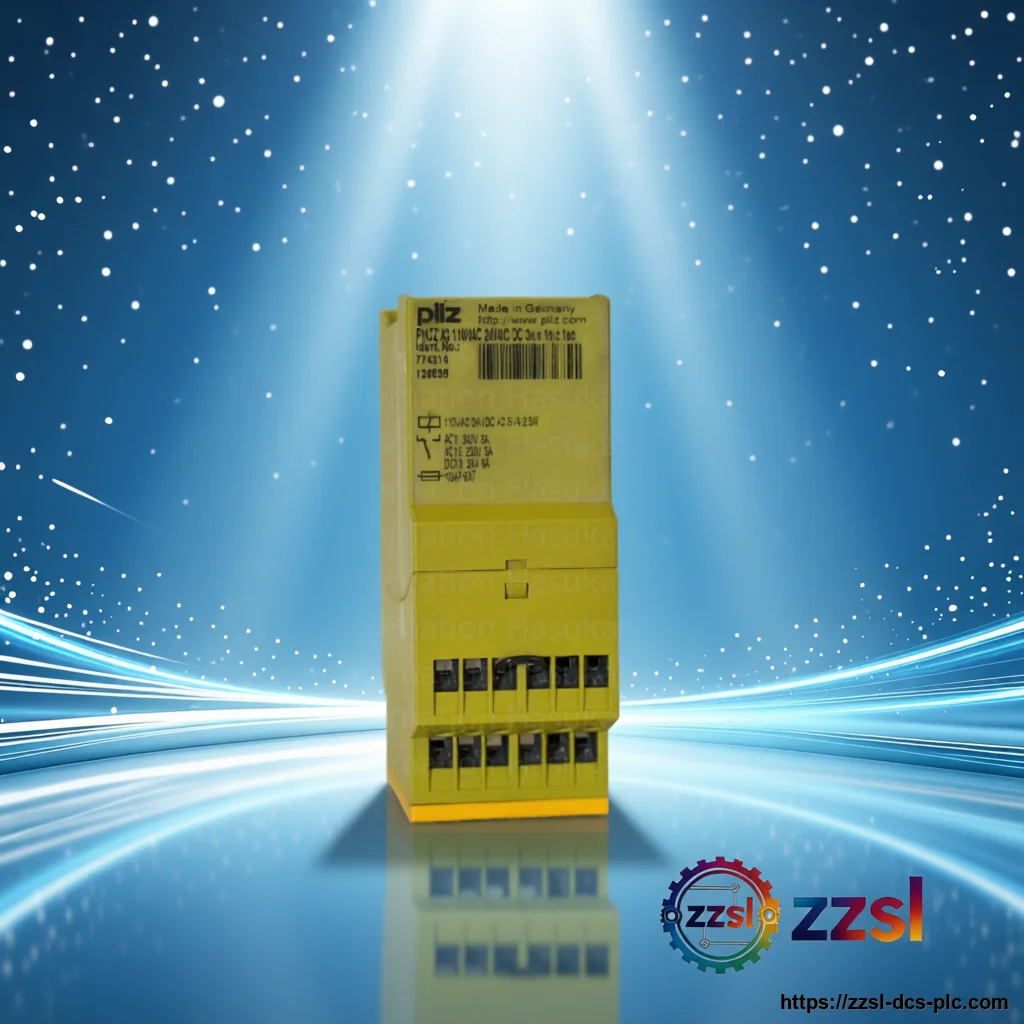

PILZ Safety Relay 774314
['Home', 'Safety Relays', 'PILZ', '774314'] Need PILZ 774314? Safety Relay for Machine safety / emergency-stop circuits…
Specifications
| Brand | PILZ |
|---|---|
| Model Number | 774314 |
| Official Product Name | PNOZ X3 Safety Relay |
| Applicable System | Machine safety / emergency-stop circuits |
| Product Type | Safety Relay |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Active |
| Lifecycle note | Available |
| Order Number | 774314 |
| Supply Voltage | 110 V AC / 24 V DC |
| Safety Contacts | 3 N/O (force-guided) |
| Auxiliary Contact | 1 N/C |
| Signaling Output | 1 semiconductor output |
| Dimensions (H x W x D) | 45 x 87 x 121 mm |
| Weight | 375 g |
| Connection | Screw terminals |
| Mounting | DIN rail |
| Rated Current | Contact supplier for exact specifications |
| Product Series | PNOZ X3 |
Product Description
Basic Product Information
- Includes 1 N/C auxiliary contact and 1 semiconductor signaling output
- Operates from 110 V AC and 24 V DC supply
- Compact DIN-rail housing for standard control cabinets
- Provides 3 force-guided N/O safety contacts for reliable isolation
Technical Specifications
Version & Model Difference
- The PNOZ X3 family includes variants with different contact configurations and supply voltages. Confirm the exact 774314 configuration with the supplier before ordering.
Application Scenarios
- Emergency-stop monitoring on industrial machinery
- Safety gate and guard door monitoring
- Interface to light curtains and muting controls
