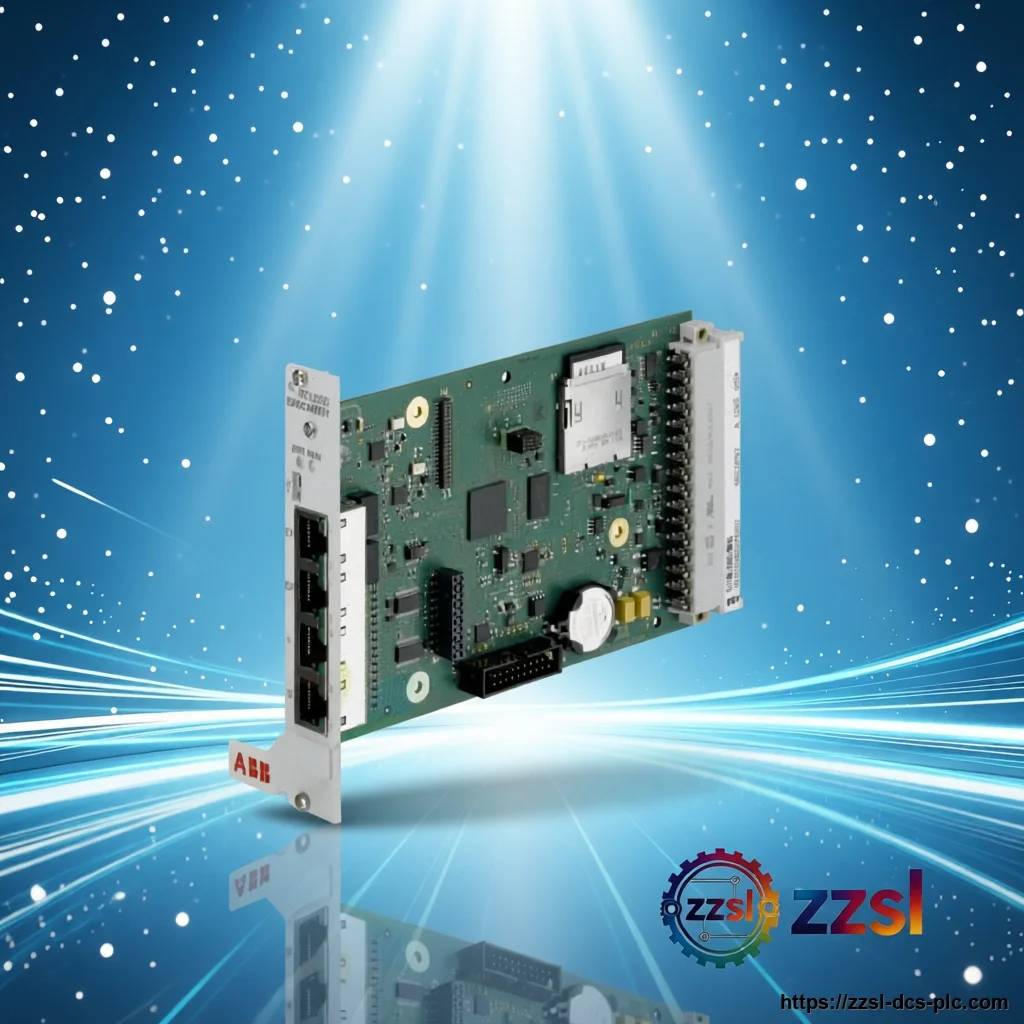

ABB+Hitachi Communication module 560CMR01
560CMR01
Other Brands
ABB+Hitachi Communication module 560CMR01
[{'name': 'Home', 'url': '/'}, {'name': 'Industrial Spare Parts', 'url': '/products&#…
Specifications
| Brand | ABB+Hitachi |
|---|---|
| Model Number | 560CMR01 |
| Official Product Name | 560CMR01 |
| Applicable System | ABB RTU560 remote terminal unit (RTU) systems |
| Product Type | Communication module / processor (CMU) |
| Equivalent Standard | RTU560 compatible; R0002 variant with security chip |
| Product Status | Available - available - confirm stock with supplier and lead time |
| Memory | 128 MB RAM, 8 MB boot flash, SD card slot |
| Operating temperature | -25 to +70 deg C |
| Power | 5 VDC @ 500 mA, 24 VDC @ 3 mA |
| Processor | ARM Cortex-A8 @ 800 MHz |
Product Description
It manages and controls I/O modules, reads process events, issues control commands, and communicates with control systems and local HMI via serial and Ethernet interfaces, supporting IEC 60870-5-101/103/104, DNP3 and Modbus protocols. The ABB 560CMR01 (originally Hitachi Energy) is the communication unit and processor module at the heart of the RTU560 remote terminal unit.
Basic Product Information
- ARM Cortex-A8 (AM3352) @ 800 MHz
- Ethernet 10/100BaseT and RS-232/RS-485 serial
- Micro-USB diagnostic and maintenance port
- Supports IEC 60870-5-101/103/104, DNP3, Modbus
- Battery-backed RTC with time synchronisation
- RTU560 core communication and processor module
Technical Specifications
Version & Model Difference
- ['R0002 variant adds enhanced cybersecurity chip']
Application Scenarios
- Substation automation
- SCADA remote terminal units
- Utility monitoring and control
- Industrial RTU deployments
- ABB 560PSU01 RTU560 Power Supply Unit
- ABB 560RTC03 RTU560 Real-Time Clock Module
- ABB 560CMR01 RTU560 Communication Unit
Frequently Asked Questions
What does the 560CMR01 do in an RTU560 system?
It is the processor and communication module that controls I/O modules, reads process events and exchanges data with control systems over Ethernet and serial links.
Which protocols are supported?
It supports IEC 60870-5-101/103/104, DNP3 and Modbus alongside the RTU560 SPB I/O bus.
What is the difference between R0001 and R0002?
R0002 includes an enhanced cybersecurity chip with advanced security functions; R0001 has standard security features.
What are the power requirements?
Typical consumption is 5 VDC at 500 mA and 24 VDC at 3 mA drawn from the rack backplane.
