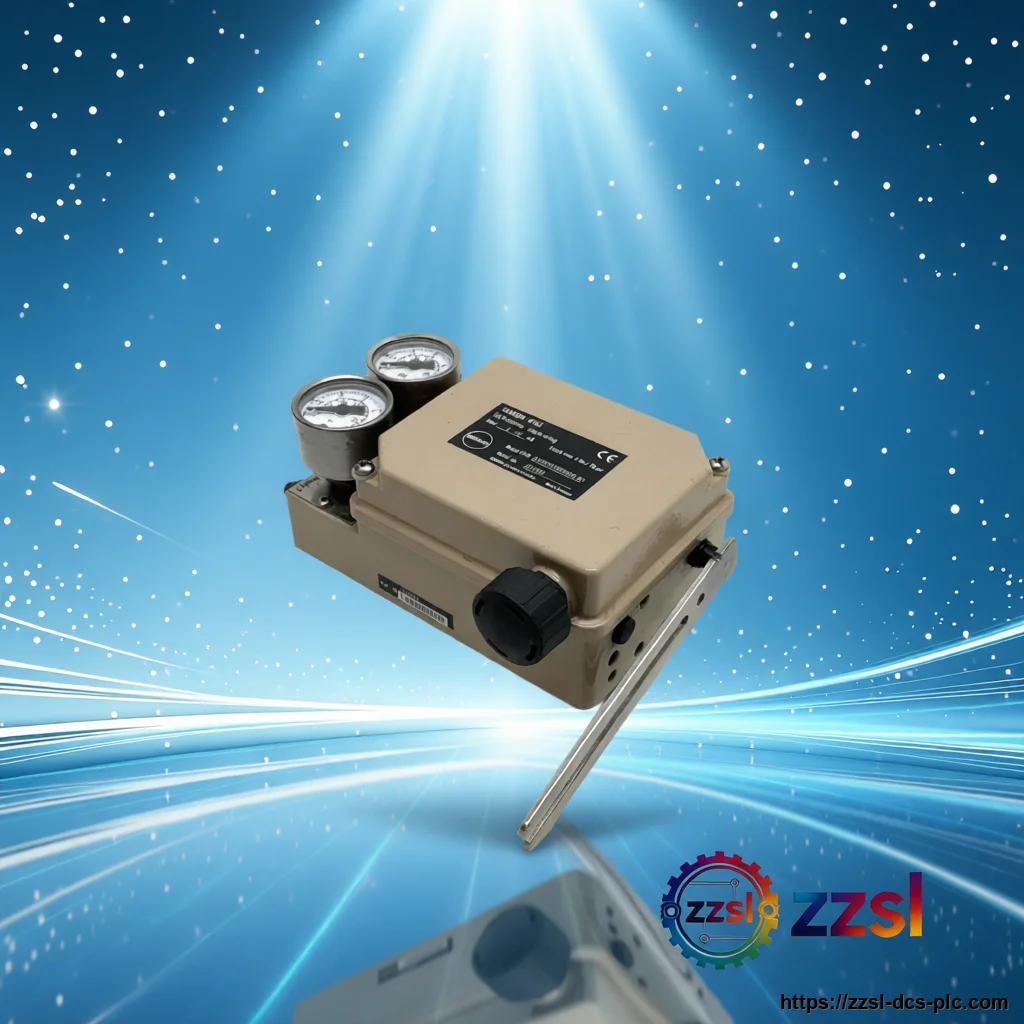

Samson Electropneumatic valve positioner 4763-01100121000000
Samson 4763-01100121000000 Electropneumatic valve positioner. For Pneumatic control valves. Supplied with full traceability and documentation. Get a quote. Pri…
Market reference price (web) | CNY 9999.00 -> USD /6.8 | https://m.11467.com/product/d53873929.htm
Specifications
| Brand | SAMSON |
|---|---|
| Model Number | 4763-01100121000000 |
| Official Product Name | Electropneumatic Positioner Type 4763 |
| Applicable System | Pneumatic control valves |
| Product Type | Electropneumatic valve positioner |
| Equivalent Standard | IP 54 (IP 65 with vent protector) |
| Product Status | Available |
| Input Signal | 4 to 20 mA (Ri approx. 200 to 250 ohm) |
| Air Supply | 1.4 to 6 bar (20 to 90 psi) |
| Output Pressure | Max 0 to 6 bar (0 to 90 psi) |
| Accuracy | Deviation <= 1.5%, hysteresis < 0.5% |
| Ambient Temperature | -20 to +70 deg C (up to +80 deg C special) |
| Degree of Protection | IP 54 (IP 65 with vent protector) |
| Weight | Approx. 1.1 to 1.2 kg |
| Travel Range | 7.5 to 60 mm (90 mm with extension) |
Product Description
It compares a 4 to 20 mA (or 0 to 20 mA / 1 to 5 mA) control signal with valve travel and outputs a pneumatic pressure to the actuator, ensuring precise positioning with low air consumption and reversible action. The SAMSON Type 4763 is an electropneumatic positioner for pneumatic control valves.
Basic Product Information
- 4 to 20 mA input with reversible action
- Low steady-state air consumption, linear characteristic
- Compact, vibration-insensitive, mount-position independent
- Travel range 7.5 to 60 mm (90 mm with lever extension)
Technical Specifications
Version & Model Difference
- The Type 4763 is electropneumatic; the Type 4765 is the pneumatic-only version. Explosion-protected (Ex) variants and split-range versions are available by type code.
Application Scenarios
- Positioning of pneumatic control valves in process plants
- Chemical, oil and gas, and power generation control loops
- Packaging and general industrial automation
- It mounts on pneumatic control valves per DIN IEC 534-6, on cast-yoke or column-yoke valves, with mount-position independence.
- SAMSON 3962 Solenoid Valve for Pneumatic Actuators
- SAMSON 4763-011001210 00000.04 Electropneumatic Positioner
Frequently Asked Questions
What signal does the SAMSON 4763 accept?
It accepts a 4 to 20 mA control signal (also 0 to 20 mA or 1 to 5 mA variants), comparing it with valve travel to drive the actuator.
What is the travel range?
Standard travel is 7.5 to 60 mm, extendable to 90 mm with the lever extension.
What are the accuracy and protection ratings?
Deviation is <= 1.5% with hysteresis < 0.5%, degree of protection IP 54 (IP 65 with vent protector), operating from -20 to +70 deg C.
How is it mounted?
It mounts on pneumatic control valves per DIN IEC 534-6, on cast-yoke or column-yoke valves, with mount-position independence.
