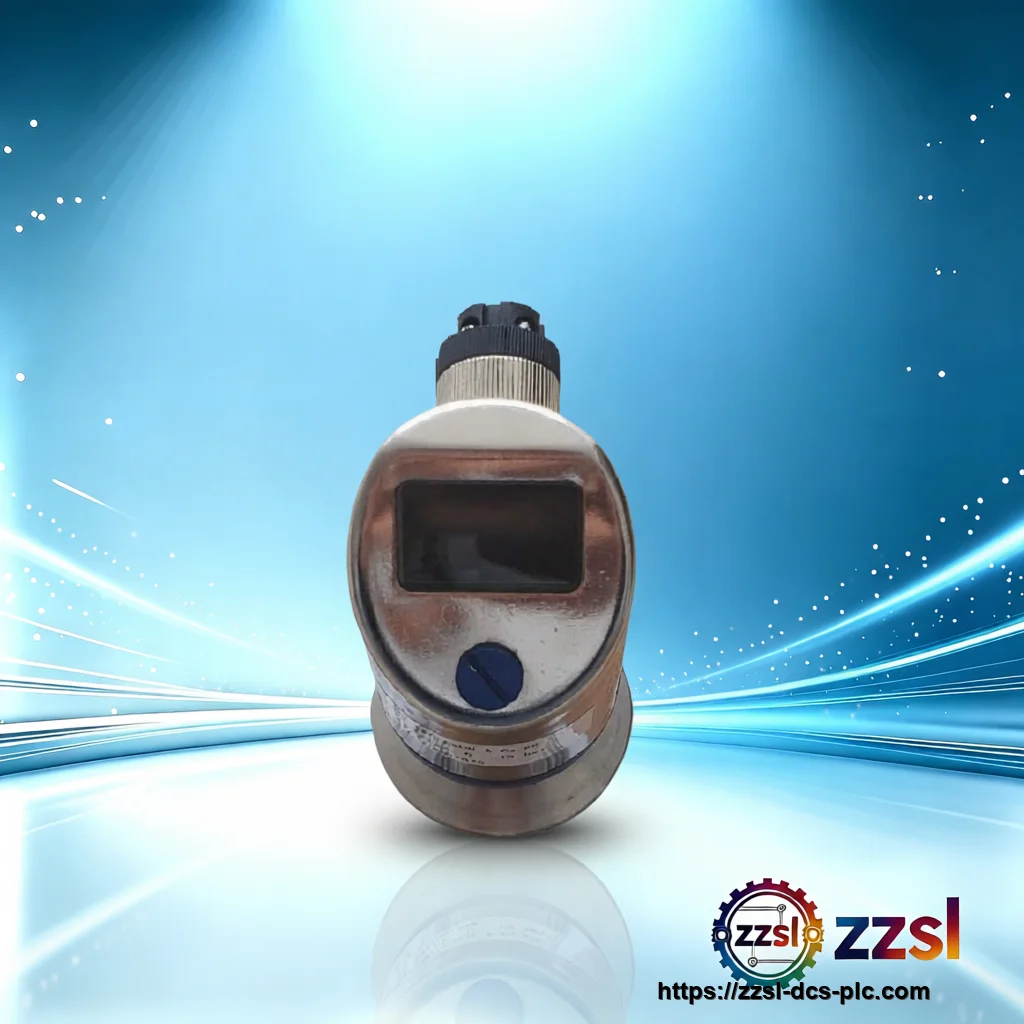

JUMO Precision 405056/0-7-452-475-504-1-20-36-01/000
Other Brands
JUMO Precision 405056/0-7-452-475-504-1-20-36-01/000
['Home', 'Process Sensors', 'Pressure Transmitters', 'JUMO DELOS S02', '405056'] Need JUMO 405056/0-7-452-475…
Specifications
| Brand | JUMO (JUMO GmbH & Co. KG) |
|---|---|
| Model Number | 405056/0-7-452-475-504-1-20-36-01/000 |
| Official Product Name | JUMO DELOS S02 Pressure Transmitter with Display |
| Applicable System | Industrial process pressure measurement and control |
| Product Type | Precision pressure transmitter |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Active |
| Lifecycle note | Commercialized |
| Pressure range | 0.1. 100 bar (rel. or abs., code-dependent) |
| Accuracy | +/-0.1 % FS |
| Output | Analog (4-20 mA) and IO-Link / Bluetooth (model-dependent) |
| Supply voltage | 24 V DC (typical; refer to specific code) |
| Degree of protection | IP65 (housing) |
| Process connection | Code-dependent (e.g. G 1/2 threaded options) |
| Display | Integrated digital display, rotatable housing |
| Measuring principle | Ceramic resistive (high-precision ceramic cell) |
Product Description
Basic Product Information
- Measurement ranges from 0.1 to 100 bar (relative and absolute)
- IO-Link and Bluetooth (smartCONFIG app) configuration
- Integrated rotatable display for local reading
- IP65 housing for industrial environments
- Precision pressure measurement with +/-0.1% FS accuracy
Technical Specifications
Version & Model Difference
['The long article number encodes range, process connection, electrical connection, display, supply/output and housing options; confirm the exact code mapping for this 405056 variant.', 'DELOS S02 succeeds the DELOS SI and adds Bluetooth/IO-Link configuration across the family.']
Application Scenarios
- Food, beverage and pharmaceutical high-precision pressure monitoring
- Mechanical engineering and machine building
- Water/wastewater, HVAC and laboratory measurement
- Accuracy is +/-0.1% FS, suitable for high-precision industrial process control.
