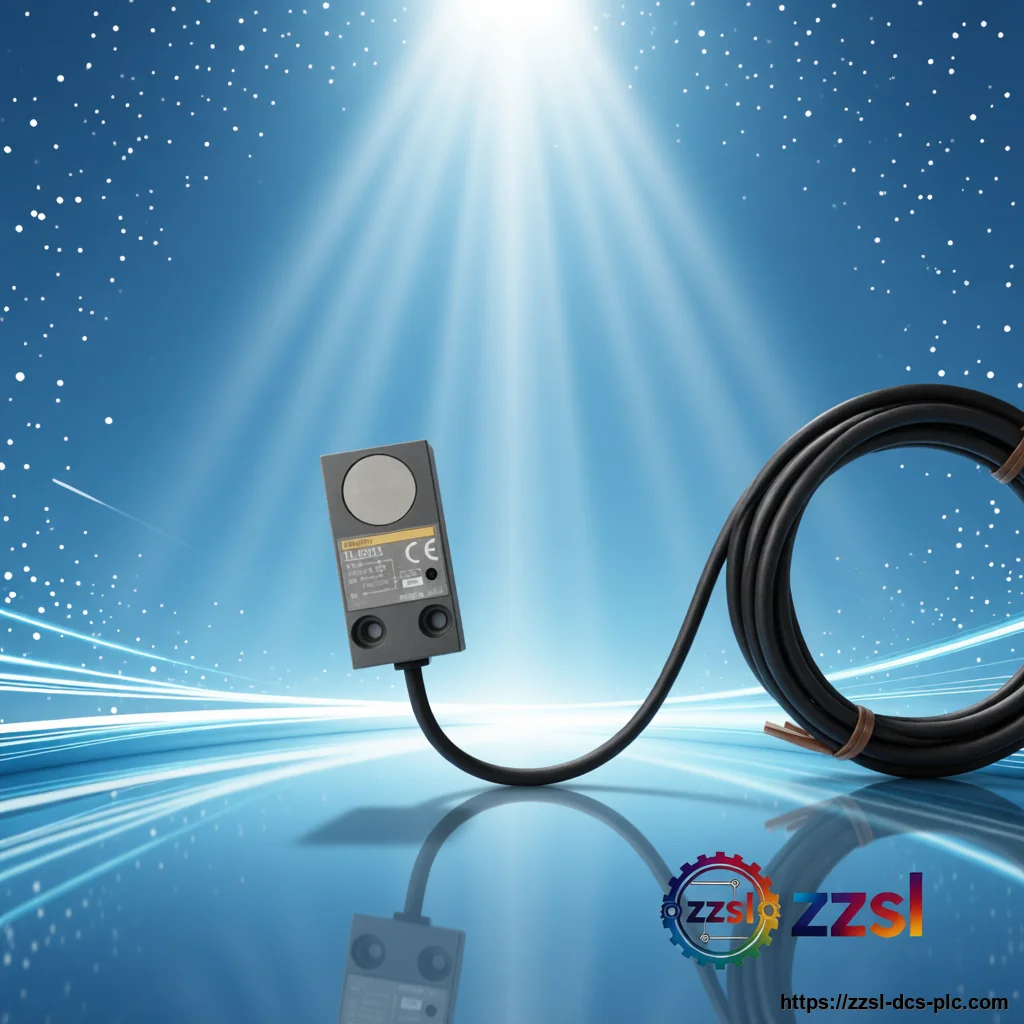

TL-W5E1-2M

Product Description

This model features a shielded (flush-mountable) housing with an M18 thread, providing a sensing distance of 5 mm. It operates on a DC 3-wire system with an NPN normally open (NO) output, making it compatible with most PLCs and industrial controllers. The sensor comes with a 2-meter cable for easy wiring and installation. Built with Omron's high-frequency oscillation circuit, the TL-W5E1 2M ensures stable detection even in harsh industrial environments. It has a supply voltage range of 10-30 VDC and can switch loads up to 200 mA. The sensor is protected against reverse polarity, surges, and short circuits, ensuring long-term reliability. Its IP67 protection rating allows use in dusty and wet conditions, making it suitable for machine tools, conveyors, and automated assembly lines. This sensor is a direct replacement for older Omron models and is widely used in factory automation. Its compact design and robust construction make it a preferred choice for position sensing, part presence detection, and limit sensing applications. The TL-W5E1 2M is available as a new original part with full warranty, ensuring compatibility and performance. The Omron TL-W5E1 2M is a cylindrical inductive proximity sensor from the TL-W series, designed for reliable detection of ferrous metal objects without physical contact.

Basic Product Information

• Sensing distance: 5 mm (ferrous metal)
• DC 3-wire, NPN normally open (NO) output
• Supply voltage: 10-30 VDC
• 2-meter cable for easy connection
• IP67 protection rating for harsh environments
• Reverse polarity, surge, and short-circuit protection
• Shielded (flush-mountable) M18 cylindrical housing

Technical Specifications

Version & Model Difference

The TL-W5E1 2M is part of the Omron TL-W series. Compared to the TL-W5E1 (without cable), the '2M' suffix indicates a 2-meter cable is pre-attached. Other versions include TL-W5E1-5M (5-meter cable) and TL-W5E2 (PNP output). The TL-W5E1 2M is an updated model replacing older TL-W5A1 series, offering improved EMC immunity and a wider operating temperature range.

Application Scenarios
