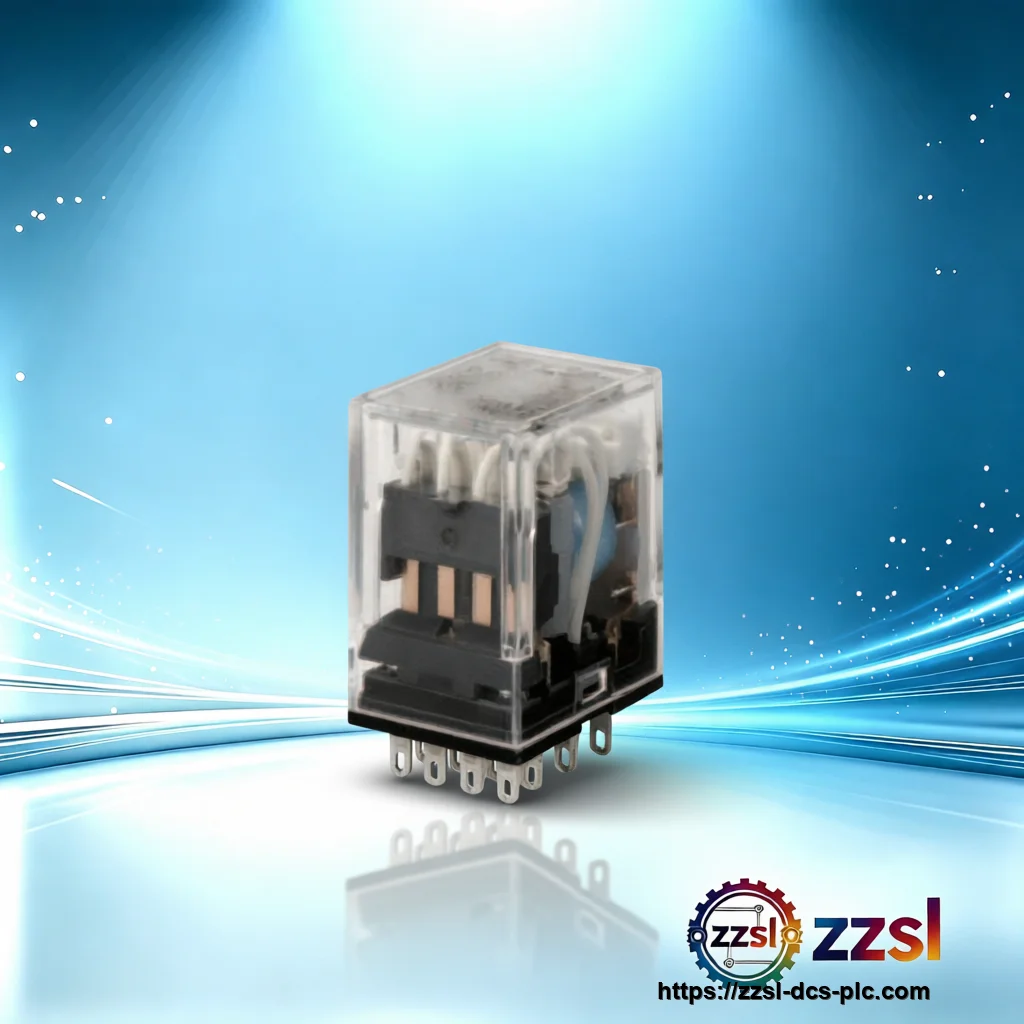

Omron Relay MY4N-J
Home > Products > Relays > Omron > MY4N-J Need Omron MY4N-J? Relay for Industrial control systems, automation panels, HVAC, machinery. Supplied wit…
Specifications
| Brand | Omron |
|---|---|
| Model Number | MY4N-J |
| Official Product Name | Status Relay 220VAC |
| Applicable System | Industrial control systems, automation panels, HVAC, machinery |
| Product Type | Relay (component) |
| Equivalent Standard | MY4N (without indicator), MY4Z (DC coil), LY4N (higher capacity) |
| Product Status | Active |
| Lifecycle note | Active, in production |
| Contact Configuration | 4PDT (4 Form C) |
| Contact Rating | 5 A @ 250 V AC (resistive) |
| Coil Power Consumption | ~1.1 VA |
| Operate Time | 20ms max |
| Release Time | 20ms max |
| Mechanical Life | 40,000,000 (AC coil) |
| Electrical Life | 160,000 (4-pole, rated load) |
| Terminal Style | Plug-in (solder/PCB/socket) |
| Mounting | Socket (PYF14A) or PCB |
| Indicator | Yes (LED) |
| Protection Class | IP40 (with cover) |
| Operating Temperature | -55 to +70 degC |
| Weight | ~35 g |
| Certifications | CE, UL, RoHS |
| Socket | PYF14A |
| Country of Origin | Japan |
| Coil Voltage | 220VAC |
Product Description
Basic Product Information
- Coil voltage: 220VAC, suitable for standard AC control circuits
- Contact rating: 5A at 250VAC / 30VDC (resistive load)
- Plug-in terminal type with dust-protective cover and indicator lamp
- High switching reliability and long electrical life (up to 100,000 operations)
- Compact design, panel-mount or socket-mount (compatible with PYF14A socket)
- 4PDT contact configuration (4 Form C) for flexible switching
Technical Specifications
Version & Model Difference
The MY4N-J is part of the MY series. The 'J' suffix indicates the inclusion of an indicator lamp and a dust-protective cover. The base model MY4N lacks these features. For DC coil versions, use MY4N-D (e.g., 24VDC). The MY4N-J is available in different coil voltages (12, 24, 110, 220VAC) and contact materials (gold-plated for low-level switching). Ensure correct coil voltage and contact rating for your application.
Application Scenarios
- Industrial control panels for machine tools and packaging equipment
- HVAC systems for fan and pump control
- Automation lines for signal switching and interlocking
- Replacement in existing Omron relay sockets in maintenance operations
- Tender specifications for electrical control components in infrastructure projects
