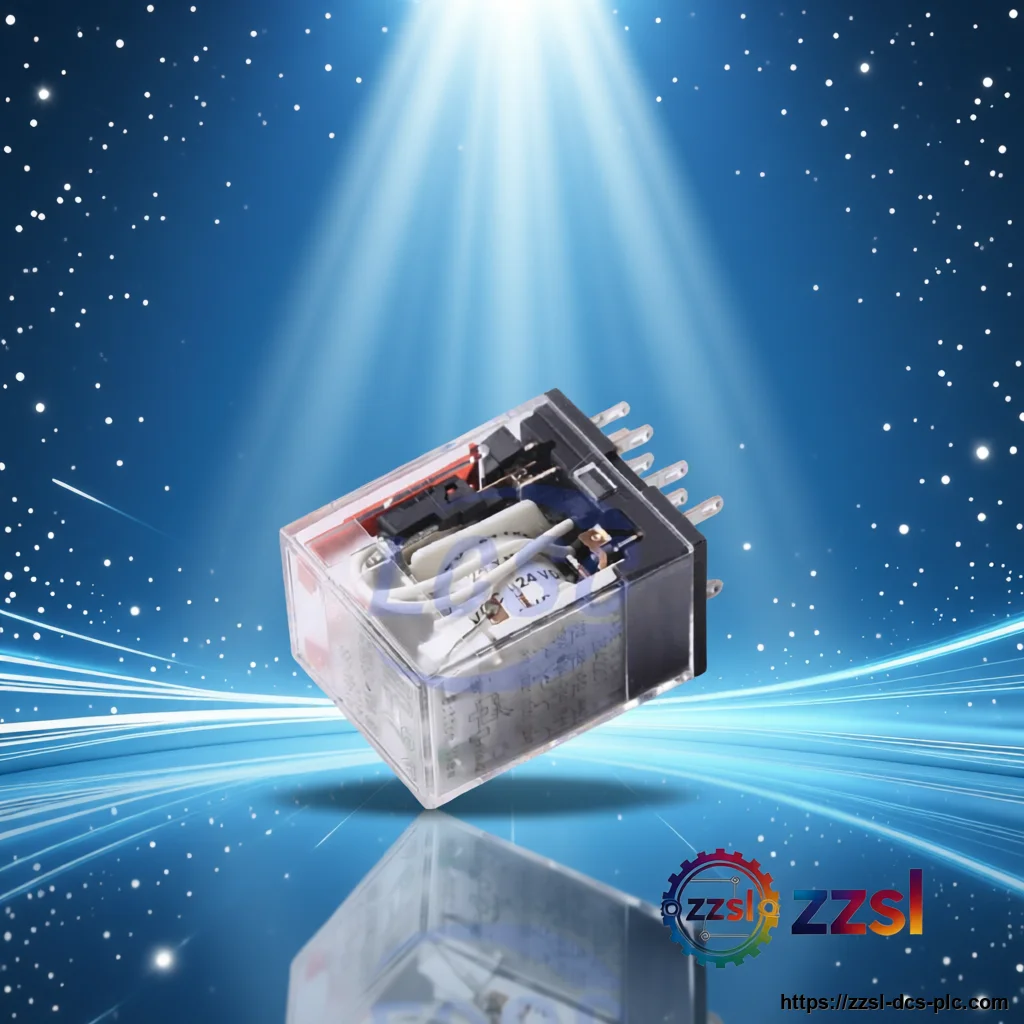

MY4N-GS-DC24

Product Description

With a 24V DC coil, it provides reliable performance in control panels, PLC outputs, and automation systems. The relay features a clear dust-protective cover, mechanical indicator, and LED operation indicator for easy status monitoring. Its plug-in terminal style (square pin) ensures quick installation and replacement, making it a preferred choice for maintenance-friendly designs. This relay offers a contact rating of 5A at 240VAC/28VDC, suitable for moderate loads such as contactors, solenoid valves, and signal lamps. The MY4N-GS DC24 is engineered with high sensitivity and durability, boasting a mechanical life of over 50 million operations and an electrical life of 100,000 operations at rated load. The coil consumes only 1.4W, ensuring energy efficiency and low heat generation in control cabinets. Omron's MY series relays are globally recognized for their quality and consistency. The MY4N-GS DC24 is RoHS compliant and meets international standards, ensuring safe operation in diverse environments. Whether used in new installations or as a replacement part, this relay delivers dependable switching performance with a compact footprint (28mm x 21.5mm x 36mm). The Omron MY4N-GS DC24 is a compact, 4-pole double-throw (4PDT) power relay from the renowned MY series, designed for general-purpose industrial switching applications.

Basic Product Information

• 24V DC coil with LED indicator
• Contact rating: 5A at 240VAC/28VDC
• Plug-in terminal (square pin) for easy replacement
• Compact, dust-protective cover with mechanical indicator
• High switching capacity and long mechanical life (50 million ops)
• 4PDT contact configuration (4 Form C)

Technical Specifications

Version & Model Difference

The MY4N-GS DC24 is part of Omron's MY series. The 'GS' suffix indicates a model with a clear cover and mechanical indicator. Compared to the standard MY4N (without 'GS'), the GS version includes a dust-protective cover and an LED indicator for coil status. The 'DC24' denotes the coil voltage. Other versions include MY4N-AC24 (24VAC coil) and MY4N-DC12 (12VDC coil). The MY4N-GS series is also available with different coil voltages (e.g., DC12, DC24, AC24, AC110/120, AC220/240).
