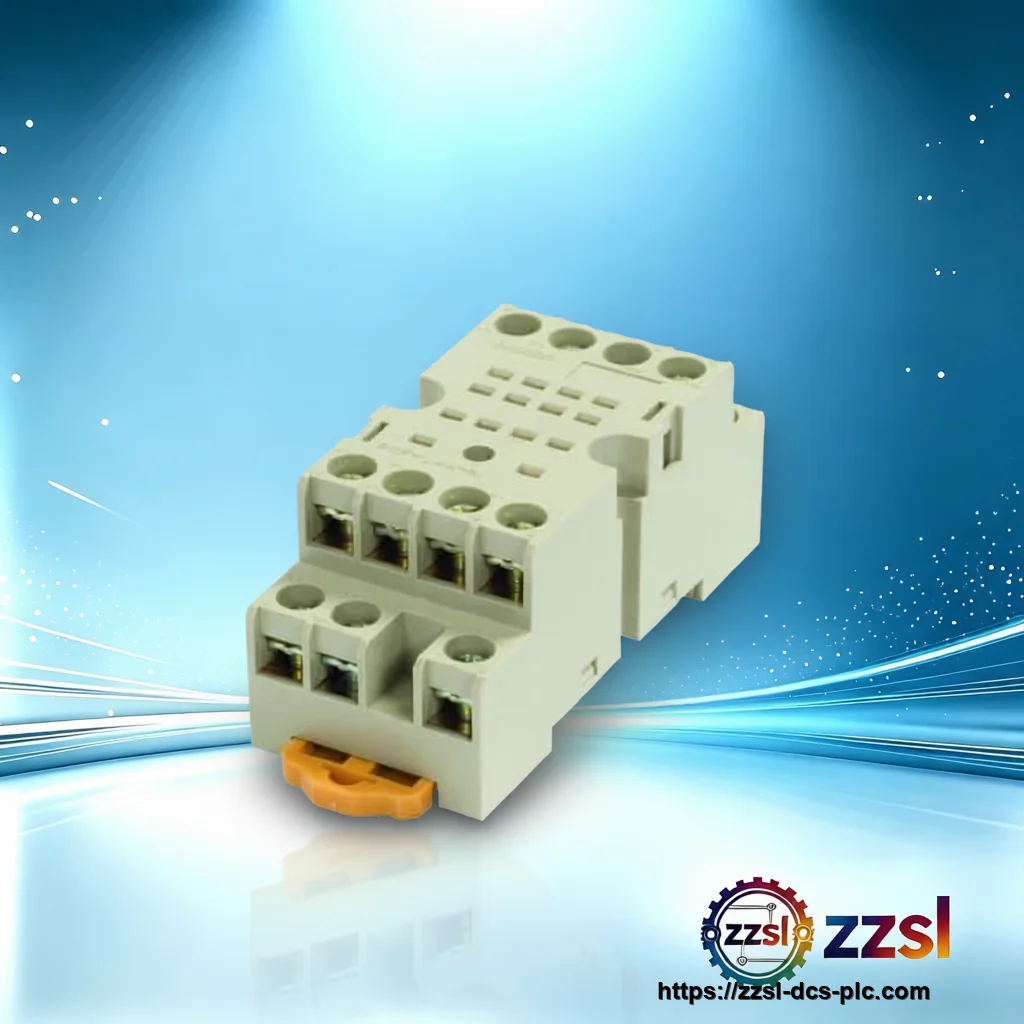

Home > Products > OMRON > Relay Sockets > PYF14A-N BASE ROLE Need Omron BASE ROLE,PYF14A-N BY OMZ,OMRON? Accessory for Industrial control systems, …
Specifications
| Brand | OMRON |
|---|---|
| Model Number | PYF14A-N |
| Official Product Name | BASE ROLE,PYF14A-N BY OMZ,OMRON |
| Applicable System | Industrial control systems, relay control panels, automation equipment |
| Product Type | Accessory (Relay Socket) |
| Equivalent Standard | PYF14A, PYF14A-E, PYF14A-N (by OMRON) |
| Product Status | Active |
| Rated Voltage | 300 VAC |
| Rated Current | 5A |
| Contact Material | Contact us for details |
| Terminal Type | Screw terminal |
| Mounting Type | DIN rail / panel |
| Operating Temperature | -40 degC to +70 degC |
| Storage Temperature | -40 degC to +85 degC |
| Insulation Resistance | 100 Mohm min. (at 500V DC) |
| Dielectric Strength | 2000V AC for 1 minute |
| Material | UL94V-0 rated plastic |
| Dimensions (W x H x D) | 29.5 x 30 x 67 mm |
| Weight | 50 g |
| Standards | UL, CSA, CE |
| Terminal | Screw |
| Country of Origin | China |
| Number of Pins | 14 |
Product Description
11.00 USD （参考价 / est. market price）
Basic Product Information
- Durable construction for long service life in industrial environments
- Secure screw terminals for reliable electrical connections
- Compatible with OMRON LY series and similar relays
- Easy snap-on or screw mounting for panel installation
- Clear polarity markings for correct wiring
- 14-pin configuration for standard relay mounting
Technical Specifications
Version & Model Difference
The PYF14A-N is a standard version of the PYF14A series. The '-N' suffix indicates a newer revision with improved terminal design and enhanced durability. It is fully interchangeable with the original PYF14A and PYF14A-E versions. Regional versions may have different packaging or certifications, but electrical specifications remain identical.
Application Scenarios
- Industrial automation control panels
- Process control systems
- Machine tool controls
- Power distribution panels
- Replacement for existing relay sockets in maintenance and repair
