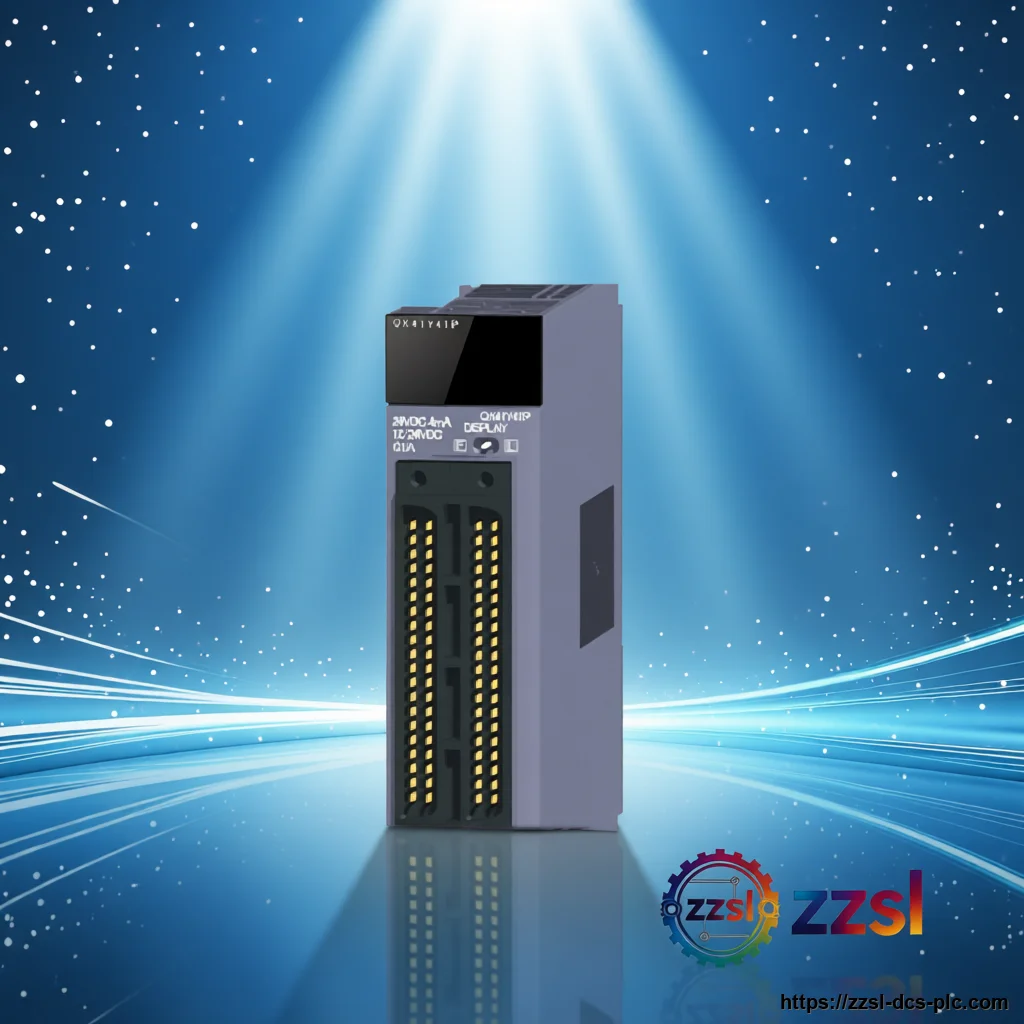

QX41P-module

Product Description

It provides 16 isolated input points, each accepting a 24 VDC signal with a typical current consumption of 4 mA. The module features a response time of 5 ms (OFF to ON) and 5 ms (ON to OFF), ensuring reliable and fast signal acquisition for industrial control applications. Its compact design and robust construction make it suitable for a wide range of automation tasks, from simple machine control to complex process automation. This input module supports both sink and source wiring configurations, offering flexibility in connecting various sensors and switches. The QX41P is equipped with LED indicators for each input point, allowing quick visual status monitoring. It operates within a temperature range of 0 to 55°C and can withstand humidity levels from 10% to 90% RH (non-condensing), ensuring dependable performance in demanding industrial environments. As part of the MELSEC-Q series, the QX41P integrates seamlessly with other Q-series modules, including CPU units, output modules, and communication modules. It is designed to meet international standards such as UL, CE, and RoHS, guaranteeing compliance with global safety and environmental regulations. Whether used in manufacturing lines, material handling systems, or building automation, the QX41P delivers precise and reliable input signal processing. The Mitsubishi QX41P is a high-performance DC input module designed for the MELSEC-Q series programmable logic controllers (PLCs).

Basic Product Information

• 24 VDC input voltage, 4 mA typical current
• Sink and source wiring compatibility
• LED status indicators for each input
• Compact design for MELSEC-Q series racks
• 16 isolated DC input points

Technical Specifications

Version & Model Difference

The QX41P is part of the MELSEC-Q series input modules. Compared to the QX40 (16-point, 24VDC, 4mA, 5ms), the QX41P offers isolated inputs, whereas the QX40 has a common sink/source configuration. The QX41P is similar to the QX41 (16-point, 24VDC, 4mA, 5ms) but with a different connector type (40-pin vs. terminal block). The QX41P is designed for applications requiring isolated inputs to prevent ground loops and noise interference.
