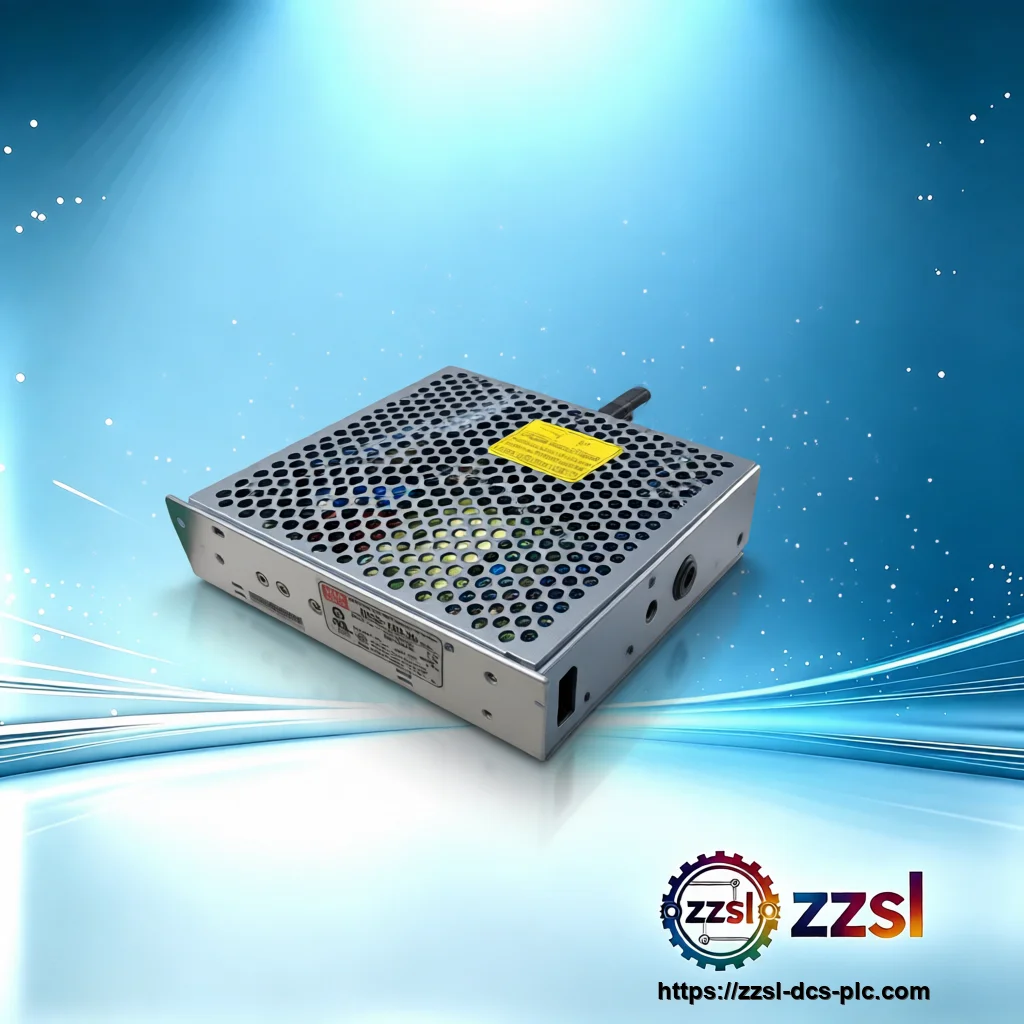

Mean Well Power supply NES-100-24
Home > Products > Power Supplies > Mean Well > NES-100-24 Need Mean Well NES-100-24? Power supply for Industrial control systems, LED lighting, tel…
Specifications
| Brand | Mean Well |
|---|---|
| Model Number | NES-100-24 |
| Official Product Name | Power Supply (EFH) |
| Applicable System | Industrial control systems, LED lighting, telecom equipment, and general AC-DC conversion |
| Product Type | Power supply (enclosed type) |
| Equivalent Standard | NES-100-24 (standard), NES-100-24 (RoHS version) |
| Product Status | Active |
| Lifecycle note | Active, in production |
| Output Current | 4.5 A |
| Output Power | 108 W |
| Input Voltage Range | 85-264Vac, 248-373Vdc |
| Input Frequency | 47-63 Hz |
| Efficiency | 86% |
| Overload Protection | Short circuit / Overload / Over voltage |
| Overvoltage Protection | 27.6-32.4V |
| Operating Temperature | -20 degC to +60 degC (derating above 50 degC) |
| Storage Temperature | -40 degC to +85 degC |
| Dimensions (L x W x H) | 159 x 97 x 38 |
| Weight | 0.55 kg |
| Certifications | UL60950-1, CB(IEC60950), CCC |
| Output Voltage | 85-132 / 176-264 V AC (switch selectable); 248-373 V DC |
Product Description
12.00 USD （参考价 / est. market price）
Basic Product Information
- High efficiency up to 84% reduces energy loss
- Built-in overload protection at 110-150% of rated power
- Overvoltage protection set at 27.6-32.4V
- Compact and lightweight design for easy installation
- Complies with international safety and EMC standards
- Universal AC input range of 85-264Vac and DC input of 248-373Vdc
Technical Specifications
Version & Model Difference
The NES-100-24 is part of the NES-100 series. There are no significant version differences; however, some units may have a RoHS-compliant label. The electrical specifications remain identical across versions.
Application Scenarios
- Industrial automation and control panels
- LED lighting and signage
- Telecommunication equipment
- Security and surveillance systems
- Test and measurement instruments
