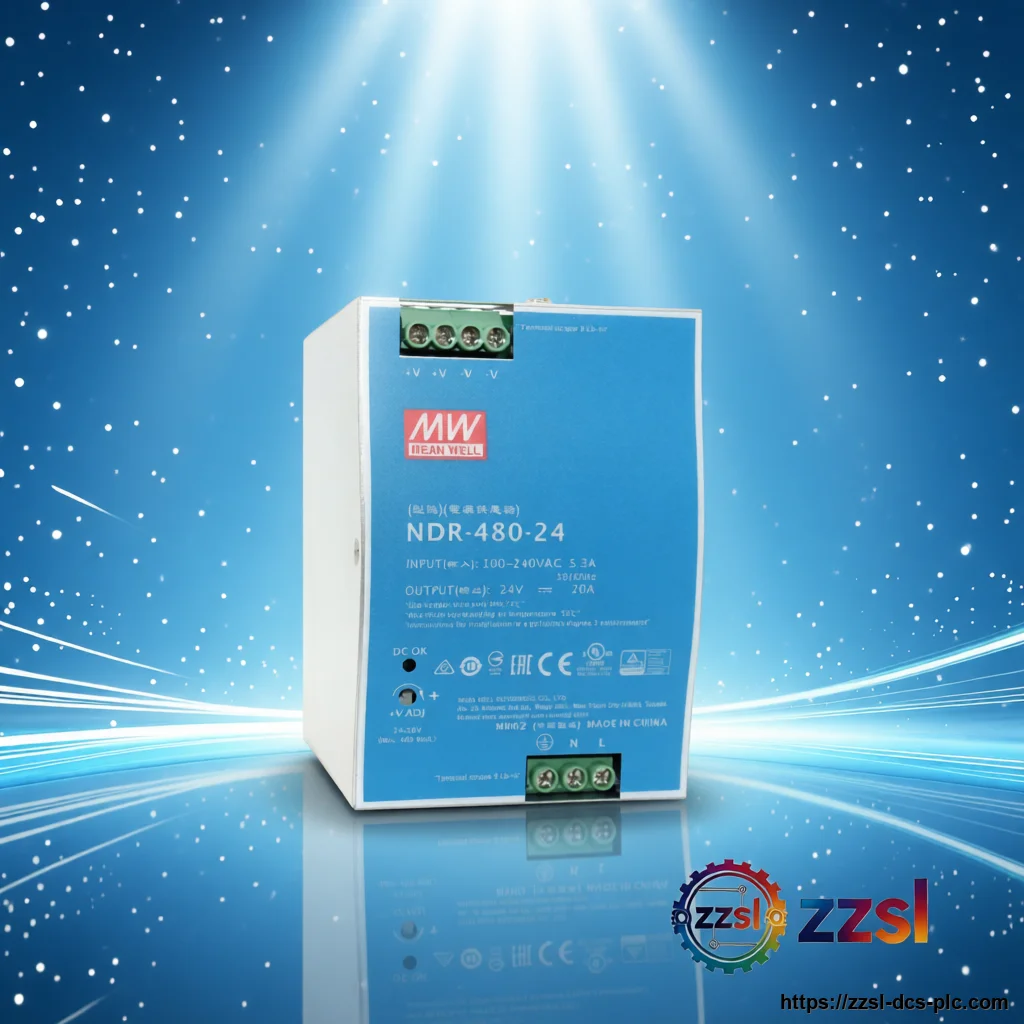

Mean Well AC-DC DIN rail power supply NDR-480-24
Mean Well
Mean Well AC-DC DIN rail power supply NDR-480-24
['Home', 'Power Supplies', 'MEAN WELL DIN Rail', 'NDR-480', 'NDR-480-24'] Need Mean Well NDR-480-24? AC-DC DI…
Specifications
| Brand | MEAN WELL |
|---|---|
| Model Number | NDR-480-24 |
| Official Product Name | DIN Rail Power Supply |
| Applicable System | Industrial control / Factory automation |
| Product Type | AC-DC DIN rail power supply |
| Equivalent Standard | UL 508 / EN 62368-1 |
| Product Status | Active |
| Output current | 20 A |
| Output power | 480 W |
| Output adjust range | 24 to 28 V |
| Input voltage | 90-264 V AC (127-370 V DC) |
| Efficiency | up to 92.5 % |
| Operating temperature | -20 to +70 degC (derating) |
| Dimensions (W x H x D) | 85.5 x 125.2 x 128.5 mm |
| Weight | 1.5 kg (typical) |
| Warranty | 3 years |
| Output voltage | 24 V DC |
Product Description
Basic Product Information
- Universal 90-264 V AC input with active PFC
- Protections: short circuit, overload, over voltage, over temperature
- Free-air convection cooling, TS-35 DIN rail mount
- 3-year warranty, UL 508 and TUV approved
- 480 W output, 24 V DC at 20 A
Technical Specifications
Version & Model Difference
- ['NDR-480-24 (24 V) vs NDR-480-48 (48 V): same 480 W frame, different output voltage.', 'The NDR series is the standard version; EDR is the slim/economy line.']
Application Scenarios
- Industrial control systems
- Factory automation and machinery
- Electro-mechanical apparatus and panels
